6FX3502-7CD01-1CA0 Dual cable, Preassembled

Send Inquiry

Request To Call Back

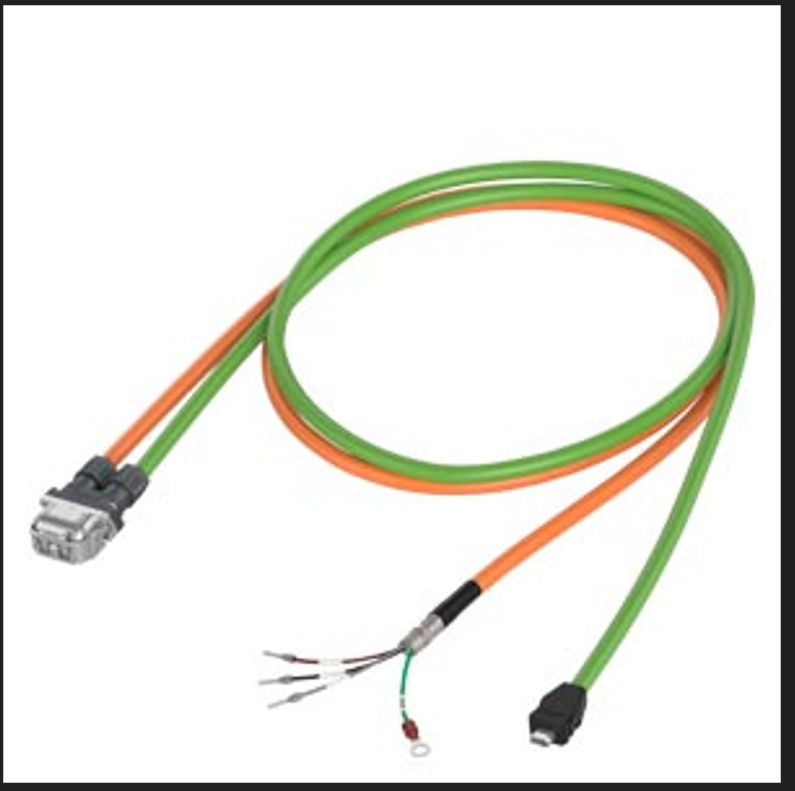

6FX3502-7CD01-1CA0 Dual cable, Preassembled

Name: 6FX3502-7CD01-1CA0 Dual cable, Preassembled
Brand: Emson Power Engineers
Price: 8000 INR
Availability: InStock

Price 8000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

6FX3502-7CD01-1CA0 Dual cable, Preassembled Specification

Feature
Halogen-free, Flexible, Oil-resistant outer sheath

Operating Temperature
-40°C to +80°C

Mounting Type
Cable with factory-assembled connectors

Shape
Round

Connector Type
SIEMENS-standard preassembled connectors, hybrid or circular M23

Surface Finish
Smooth, Industrial-grade finish

Humidity %
Up to 90% (Non-condensing)

Efficiency
Not applicable (cable)

Insulation Material
High-quality crosslinked PE/PU

IP Rating
IP67 (connected)

Product Type
Dual Encoder/Power Cable, Preassembled

Application
For Siemens SINAMICS S120/S210, Motor Connection

Protection Level
High mechanical and EMC protection

Frequency (MHz)
Up to 600 MHz (Signal)

Rated Voltage
300 V (Signal), 600 V (Power)

Energy Consumption
Not applicable (passive component)

Output Type
Cable output, preassembled connectors

Color
Orange / Black

Dimension (L*W*H)
Cable length: 10 m (custom lengths available)

Weight
Approx. 2.6 kg

Phase
Single/Three-phase (depends on application)

Size
Outer diameter ~15 mm (Power), ~8 mm (Signal)

Input Voltage
Not applicable (passive)

Connection Type
Preassembled, ready-to-use dual cable

No Of Poles
8 + 2 (Signal and Power)

Material
PUR (Outer Jacket), Copper (Conductors)

Standards
UL, cUL, CE, RoHS compliant

Halogen Free
Yes

Flame Retardant
Yes, VDE approved

Cable Structure
Dual cable (power + signal together)

Oil Resistance
Yes, to common industrial oils

Cable Length
10 meters (standard)

Cable Part Number
6FX3502-7CD01-1CA0

Max. Conductor Temperature
+90°C

Shielding Type
Overall Braided Shield (EMC-compliant)

Suitable For
SINAMICS S120, SINAMICS S210, SIMOTICS motors

Bending Radius
Min. 10 x cable diameter

About 6FX3502-7CD01-1CA0 Dual cable, Preassembled

Dual cable pre-assembled 4x0.75+2x0.38/2x2x0.25+2x0.38 for motor S-1FL2 SH20/30/40 with S200, MOTION-CONNECT 350 Length(m)=20m Dmax power=7.5mm Dmax encoder=7.0mm w.o. brake, Drive End Outlet 1 million bending times

Product lifecycle

Active Product

Product class

A: Standard product which is a stock item could be returned within the returns guidelines/period.

Packaging dimensions (L x W x H)

350.00 x 350.00 x 20.00 mm

Net weight

3.266 Kg

Engineered for Industrial Precision

Designed to meet the demanding requirements of modern manufacturing, the 6FX3502-7CD01-1CA0 cable combines power and signal pathways in one jacket, ensuring compact routing and reduced interference. Its high-grade PUR outer sheath and copper conductors deliver exceptional durability and performance in challenging industrial conditions, including high humidity and exposure to oils.

Plug-and-Play Connectivity

Benefit from rapid and reliable installation with factory-preassembled Siemens-standard or hybrid M23 connectors. The cable is delivered ready-to-use, minimizing setup time and potential wiring errors. Its standardized connectors make it universally compatible with SINAMICS S120, SINAMICS S210, and SIMOTICS motor systems.

Comprehensive Safety and Compliance

The cable is designed with overall braided shielding for EMC compliance and is certified to UL, cUL, CE, RoHS, and VDE standards. Its flame-retardant, halogen-free construction and oil-resistant outer sheath ensure both safety and environmental friendliness, making it a preferred choice for industrial automation applications.

FAQ's of 6FX3502-7CD01-1CA0 Dual cable, Preassembled:

Q: How is the 6FX3502-7CD01-1CA0 cable installed in SINAMICS or SIMOTICS systems?

A: This dual cable comes preassembled with Siemens-standard or hybrid M23 connectors, allowing plug-and-play installation for SINAMICS S120/S210 and SIMOTICS motors. Simply connect the cable ends to the respective controllers and motor terminals-no specialized tools are required.

Q: What are the benefits of choosing a shielded, halogen-free dual cable for industrial applications?

A: The overall braided EMC shielding minimizes electromagnetic interference, ensuring signal integrity. The halogen-free, flame-retardant, and oil-resistant jacket enhances safety, reduces fire risk, and ensures long-term reliability even in chemically demanding environments.

Q: When should this cable be used over standard power or signal cables?

A: Use the 6FX3502-7CD01-1CA0 dual cable when you need combined signal and power transmission with high EMC protection, especially in environments where reduced cabling and rapid, error-free installation are priorities. It's ideal for new SINAMICS or SIMOTICS installations and industrial retrofits.

Q: Where is this cable most suitable for deployment?

A: It is perfectly suited for industrial automation setups requiring robust, flexible connections-such as manufacturing lines, robotics, and machinery using Siemens drives and motors. Its IP67 protection ensures operation in environments with dust, moisture, or high humidity.

Q: What is the minimum bending radius, and how does it affect usage?

A: The recommended minimum bending radius is 10 times the cable diameter, supporting both fixed and flexible applications. Adhering to this guideline prevents damage, preserves signal quality, and prolongs cable life.

Q: How does the cable ensure compliance with international standards?

A: The cable holds certifications like UL, cUL, CE, RoHS, and VDE, offering verified safety, environmental compatibility, and global acceptance, making it suitable for export and multi-national installations.
