6FX3502-7CN01-1AF0 Dual cable, Preassembled

Send Inquiry

Request To Call Back

6FX3502-7CN01-1AF0 Dual cable, Preassembled

Name: 6FX3502-7CN01-1AF0 Dual cable, Preassembled
Brand: Emson Power Engineers
Price: 8500 INR
Availability: InStock

Price 8500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

6FX3502-7CN01-1AF0 Dual cable, Preassembled Specification

Mounting Type
Plug & Play (with connector)

Overheating Protection
N/A (Cable only)

Efficiency
Maximum signal fidelity, low attenuation

Operating Temperature
-30C to +80C

Shape
Round

Feature
Halogen-free, Oil-resistant, Flexible, Preassembled connectors

Humidity %
Up to 90% (non-condensing)

Insulation Material
High-grade polymer insulation, PUR jacket

Surface Finish
Smooth PUR jacket

IP Rating
IP65/IP67 (mated condition)

Connector Type
M23 (power), Hybrid M23 (encoder)

Product Type
Preassembled Dual Cable

Application
For SINAMICS S120 Drive System and Siemens Motor Connection

Protection Level
Highly shielded, suitable for industrial environments

Frequency (MHz)
Up to 100 MHz (Data Cable)

Rated Voltage
300/500 V

Energy Consumption
N/A (Passive Cable)

Output Type
Dual Cable (Power and Feedback)

Color
Orange (Power), Black (Feedback)

Dimension (L*W*H)
7 m cable length; cable diameter approx. 8.5 mm + 6.2 mm

Weight
2.3 kg (approx.)

Size
7 m (custom lengths available)

Phase
Three Phase (for encoder/motor feedback systems)

Input Voltage
N/A (Cable only)

No Of Poles
4

Connection Type
Preassembled ready-to-connect with M23 Power and Encoder Connectors

Material
PUR (Polyurethane) Cable Jacket with Copper Conductors

Vibration Resistance
Yes, as per Siemens industrial standards

Cable Identification
Siemens 6FX3502-7CN01-1AF0 printed on jacket

Max. Transmission Rate
Up to 12 Mbit/s (encoder line)

Environmental Suitability
Industrial environments, machine tool applications

Drag Chain Compatibility
Yes, suitable for continuous flexing

Fire Resistance
Flame retardant as per IEC 60332-1-2

Shielding
Copper braid with foil (100% coverage)

Bending Radius
Min. 7 x cable diameter

About 6FX3502-7CN01-1AF0 Dual cable, Preassembled

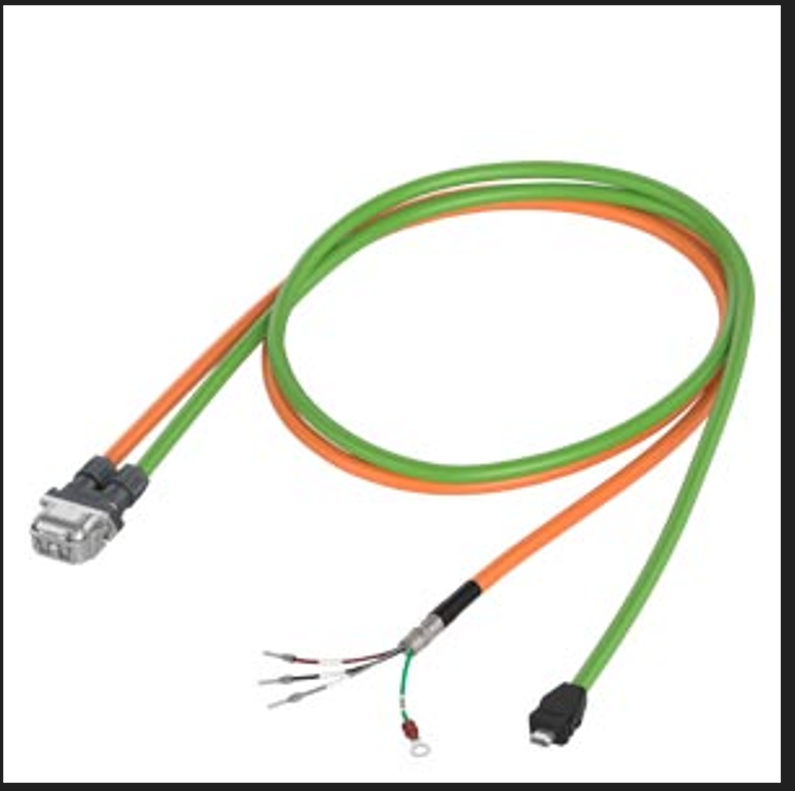

Dual cable pre-assembled 4x0.75/3x2x0.25 for motor S-1FL2 SH20/30/40 with S200, MOTION-CONNECT 350 Length(m)=5m Dmax power=7.5mm Dmax encoder=7.0mm w.o. brake, Non Drive End Outle 1 million bending times

Product lifecycle

Active Product

Product class

A: Standard product which is a stock item could be returned within the returns guidelines/period.

Packaging dimensions (L x W x H)

350.00 x 350.00 x 20.00 mm

Net weight

0.965 Kg

Robust Construction for Demanding Environments

Built with a polyurethane jacket and copper shielding, the 6FX3502-7CN01-1AF0 cable is tailored for heavy-duty industrial settings, including machine tools and automation equipment. Its flexibility, oil resistance, and flame retardance ensure long-term reliability, even in conditions with substantial vibration and exposure to chemicals. Drag chain compatibility means it withstands repeated flexing, making it ideal for dynamic operations.

Preassembled for Easy Installation

This dual cable arrives preassembled with M23 connectors, eliminating the need for additional wiring or setup. The plug & play design simplifies installation, reduces downtime, and enhances safety for users. Cable identification is clearly printed on the jacket, minimizing errors during replacement or maintenance.

FAQ's of 6FX3502-7CN01-1AF0 Dual cable, Preassembled:

Q: How is the 6FX3502-7CN01-1AF0 cable installed in industrial systems?

A: Installation is straightforward due to its preassembled M23 connectors for both power and feedback lines. The plug & play configuration allows direct connection to SINAMICS S120 drive systems and Siemens motors without the need for complex wiring by the installer.

Q: What are the key benefits of using this cable for SINAMICS S120 drive systems?

A: The cable provides high signal integrity with comprehensive copper and foil shielding, robust flame retardance, and resistance to oil, vibration, and mechanical wear. It supports both power and encoder signal transmission, ensuring reliable operation in demanding applications.

Q: When should I choose this specific cable over standard cables?

A: Select this cable for environments requiring high flexibility, superior shielding, and continuous motion (drag chain applications). It is particularly suitable for installations needing flame retardant and oil-resistant components, with quick plug & play setup.

Q: Where can this cable be used within an industrial facility?

A: Ideal applications include machine tools, production lines, and automated systems where SINAMICS S120 drives or Siemens motors are present. Its rugged build and IP65/IP67 protection make it suitable for challenging industrial environments, including high-humidity areas (up to 90% non-condensing).

Q: What process ensures the cable maintains high transmission quality?

A: The cable features a copper braid with foil shielding that provides 100% coverage against electromagnetic interference. This, combined with high-grade polymer insulation, ensures maximum signal fidelity and low attenuation throughout the cable's lifecycle.

Q: How does the cable's design enhance its durability?

A: The combination of a smooth PUR jacket, tight bending radius, and vibration resistance as per Siemens standards helps the cable endure continuous motion, harsh chemicals, and rigorous industrial use without compromising performance.
