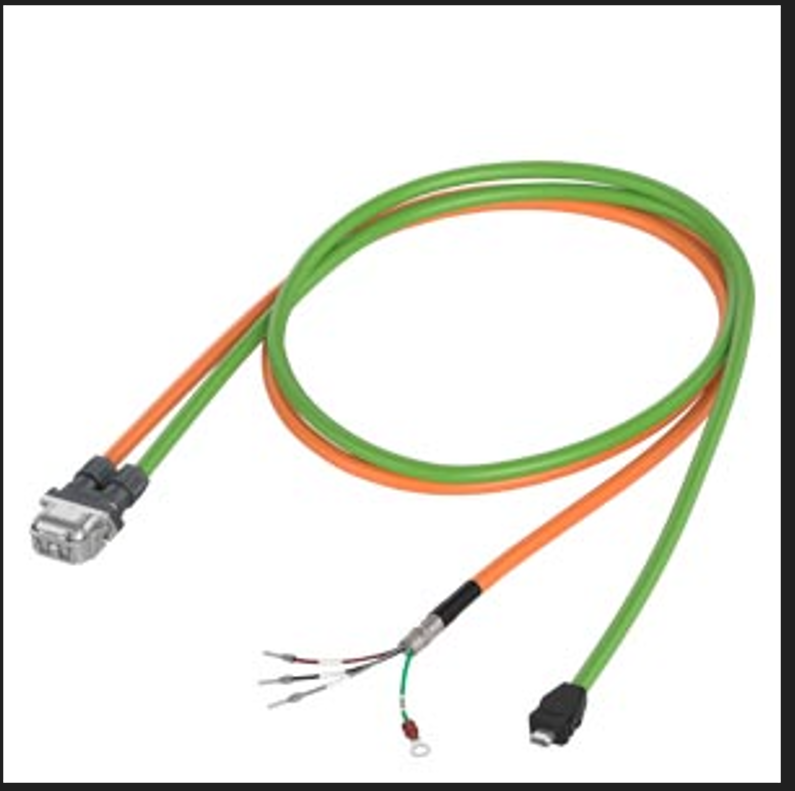

6FX3502-7CN01-1AH0 Dual cable, Preassembled

Send Inquiry

Request To Call Back

6FX3502-7CN01-1AH0 Dual cable, Preassembled

Name: 6FX3502-7CN01-1AH0 Dual cable, Preassembled
Brand: Emson Power Engineers
Price: 8900 INR
Availability: InStock

Price 8900 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

6FX3502-7CN01-1AH0 Dual cable, Preassembled Specification

Humidity %
Max 90% (non-condensing)

Shape
Round cable

Feature
Halogen-free, resistant to abrasion, hydrolysis-resistant

Mounting Type
Movable installation, suitable for drag chains

Overheating Protection
NO

IP Rating
IP67 (with connected mating-connector)

Surface Finish
Smooth PUR outer sheath

Connector Type
1x Power connector pre-molded, 1x Encoder connector pre-molded

Insulation Material
High-grade PVC/PE/PUR (depending on core)

Operating Temperature
-40C to +80C

Product Type
Dual Preassembled Drive Cable

Application
For SINAMICS S120 & SIMOTICS S motors and drives

Protection Level
Shielded, Oil-resistant, Flame-retardant

Frequency (MHz)
Up to 200 MHz (data lines)

Rated Voltage
600 V (Power cable)

Output Type
Power + Signal Transmission

Color
Black (Outer Sheath)

Dimension (L*W*H)
Length: 10 m (standard), Diameter: 11.4 mm (power cable), 7.5 mm (encoder cable)

Weight
2.8 kg

Input Voltage
Up to 600 V (power cable)

Size
10 meters (other lengths available)

Phase
Three-phase compatible

Connection Type
Preassembled, ready-to-connect, with angled connectors

No Of Poles
6 + 2 power cores, 4 signal cores

Material
PUR (Polyurethane) outer sheath, copper core

Shield Coverage
>85% optical (braided shield)

Bending Radius
10 x cable diameter (dynamic); 5 x cable diameter (fixed)

Flame Retardancy Standard
IEC/EN 60332-1-2

Conductor Cross Section (Signal)
4 x 0.34 mm² (encoder)

Max Acceleration (Drag Chain)
up to 50 m/s²

Torsion Range
±180°/m (for torsional motion)

Max Speed (Drag Chain)
4 m/s

Connector Standard
Preassembled with original Siemens connectors (M23/M17 variant depending on model)

Conductor Cross Section (Power)
4 x 2.5 mm² (power), 2 x 0.75 mm² (brake)

Cable Approval
CE, UL, RoHS compliant

Resistance
Resistant to oils, UV, coolants, microbes

Certification Marks
EAC, cURus

Cable Designation
Siemens MOTION-CONNECT 500 2x(4+2) x 2.5/0.75 mm² + 4 x 0.34 mm²

About 6FX3502-7CN01-1AH0 Dual cable, Preassembled

Dual cable pre-assembled 4x0.75/3x2x0.25 for motor S-1FL2 SH20/30/40 with S200, MOTION-CONNECT 350 Length(m)=7m Dmax power=7.5mm Dmax encoder=7.0mm w.o. brake, Non Drive End Outle 1 million bending times

Product lifecycle

Active Product

Product class

A: Standard product which is a stock item could be returned within the returns guidelines/period.

Packaging dimensions (L x W x H)

350.00 x 350.00 x 20.00 mm

Net weight

1.271 Kg

Engineered for Performance and Reliability

This Siemens MOTION-CONNECT 500 dual cable is crafted for precise, reliable power and signal transmission in demanding automation environments. Its robust PUR sheath, torsion resistance, and high-speed drag chain compatibility ensure long operational life under dynamic conditions. Safety and performance are reinforced with flame retardancy, superior shielding, and comprehensive certifications, making it an ideal solution for modern motion systems.

Versatile, Easy Integration

Preassembled with original Siemens connectors and ready-to-connect out of the box, the 6FX3502-7CN01-1AH0 streamlines installation and maintenance. Its compatibility with SINAMICS S120 drives and SIMOTICS S motors, along with various lengths and resistance to oils and UV, make it a versatile choice across diverse applications in India's automation sectors.

FAQ's of 6FX3502-7CN01-1AH0 Dual cable, Preassembled:

Q: How is the 6FX3502-7CN01-1AH0 cable typically used?

A: This cable is primarily used for connecting Siemens SINAMICS S120 drives with SIMOTICS S motors, providing reliable power, brake, and signal transmission in automated systems and motion control applications.

Q: What benefits does the preassembled design offer?

A: The preassembled design, featuring original Siemens connectors, significantly reduces installation time and errors, ensuring optimal connectivity, maximum performance, and system integrity right from the start.

Q: Where can this dual cable be installed?

A: It is suitable for installations in industrial automation settings, especially where cables are subjected to movement, such as drag chains. Its robust specifications also make it ideal for harsh environments encountering oils, coolants, and UV exposure.

Q: What standards and certifications does the cable comply with?

A: The 6FX3502-7CN01-1AH0 is UL, CE, RoHS, EAC, and cURus certified, and complies with flame retardancy standard IEC/EN 60332-1-2, ensuring international safety and environmental compatibility.

Q: How should the cable be handled during installation?

A: For dynamic use, maintain a bending radius of at least 10 times the cable diameter; for fixed installations, a minimum of 5 times the diameter. It is designed for movable installations, enabling easy integration into drag chains or energy chains.

Q: What makes this cable suitable for harsh industrial environments?

A: Its rugged PUR outer sheath is halogen-free and highly resistant to abrasion, hydrolysis, oils, microbes, and UV radiation. The cable is also flame-retardant and offers excellent EMI shielding, making it ideal for demanding industrial conditions.

Q: What is the maximum speed and acceleration it supports in drag chains?

A: The cable can withstand a maximum speed of 4 m/s and acceleration up to 50 m/s2 within drag chain applications, supporting high-speed automated machinery.
