S200 SERVO CABLE 6FX3802-7CD01-1BA0 Dual cable, Preassembled

Send Inquiry

Request To Call Back

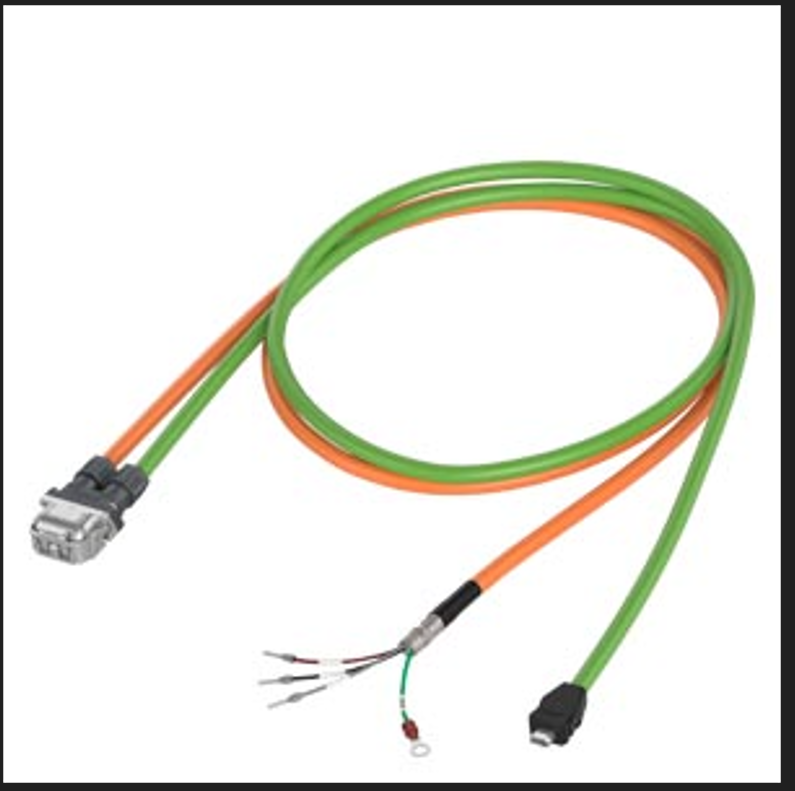

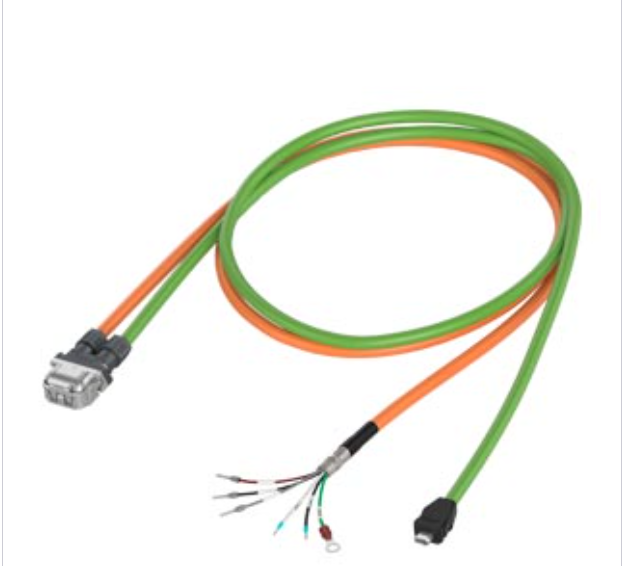

S200 SERVO CABLE 6FX3802-7CD01-1BA0 Dual cable, Preassembled

Price 12900.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

S200 SERVO CABLE 6FX3802-7CD01-1BA0 Dual cable, Preassembled Specification

Insulation Material
Cross-linked Polyolefin / PUR insulation

Humidity %
Max. 90% (non-condensing)

Surface Finish
UV-resistant, halogen-free sheath

Connector Type
Preassembled, Siemens-specific motor and drive connectors

Shape
Round

Feature
Hybrid cable: combined power and encoder cable

Operating Temperature
-20C to +80C

Mounting Type
Plug-and-play, suitable for cable tracks

IP Rating
IP65 (with mated connectors)

Product Type
Preassembled Dual Cable

Application
For connection of SINAMICS S120/S210 drive systems to SIMOTICS S-1FK7/1FT7 motors

Protection Level
Suitable for drag chain use; flame-retardant

Frequency (MHz)
Up to 200 MHz signal integrity

Rated Voltage
600 V AC / 850 V DC

Energy Consumption
Not applicable (passive component)

Output Type
Power and feedback signal

Color
Black outer jacket

Dimension (L*W*H)
Cable diameter: approx. 9 mm each (dual)

Weight
Approx. 2.5 kg (for 10 m)

Input Voltage
Cable, not powered

Size
Standard lengths: 5 m, 10 m, 15 m and custom

Phase
Three Phase

No Of Poles
4+3

Material
PUR (Polyurethane), copper conductors

Connection Type
Preassembled with connectors on both ends

Oil Resistance
Yes (according to DIN EN 50290-2-22)

Cable Category
Hybrid dual cable (power/feedback combined)

Bend Radius
Min. 7.5 × cable diameter (dynamic)

Connector Standard
SpeedTec hybrid/motor connectors

RoHS Compliance
Yes

Halogen Free
Yes

Fire Load
Approx. 0.35 MJ/m

Cable Standard
SIEMENS MOTION-CONNECT 300+ dual cable

Shielding
Overall and individual shielding for EMC

About S200 SERVO CABLE 6FX3802-7CD01-1BA0 Dual cable, Preassembled

Dual cable pre-assembled 4x0.75/3x2x0.25 for motor S-1FL2 SH20/30/40 with S200, MOTION-CONNECT 380 Length(m)=10m Dmax power=7.5mm Dmax encoder=7.0mm w.o. brake, Drive End Outlet 5 million bending times

Product lifecycle

Active Product

Product class

A: Standard product which is a stock item could be returned within the returns guidelines/period.

Packaging dimensions (L x W x H)

350.00 x 350.00 x 20.00 mm

Net weight

1.786 Kg

High-Performance Hybrid Cabling

Experience enhanced efficiency with the S200 SERVO CABLE 6FX3802-7CD01-1BA0. Combining power and feedback functions in one dual-core, individually shielded construction, this cable supports up to 200 MHz signal integrity while minimizing installation space and maximizing reliability in automation and motion control applications.

Engineered for Stringent Environments

Crafted with a robust PUR sheath, this cable excels in challenging conditions. Its halogen-free, UV-resistant outer layer, coupled with flame-retardant and oil-resistant properties, allows for safe use in cable tracks. Preassembled with SpeedTec connectors and designed for easy plug-and-play installation, it's suitable for use in demanding industrial settings across India.

FAQ's of S200 SERVO CABLE 6FX3802-7CD01-1BA0 Dual cable, Preassembled:

Q: How do I use the S200 SERVO CABLE 6FX3802-7CD01-1BA0 in my SINAMICS S120/S210 system?

A: Simply connect the preassembled ends of the cable to the respective SIEMENS-specific motor and drive connectors on your SINAMICS S120/S210 and SIMOTICS S-1FK7/1FT7 motor. Its plug-and-play design makes installation straightforward and secure.

Q: What are the main benefits of this dual hybrid servo cable compared to separate cables?

A: The S200 combines both power and feedback lines in one cable, reducing installation complexity and saving space in cable trays. Its individual and overall shielding ensures superior electromagnetic compatibility, making it ideal for environments sensitive to signal interference.

Q: When is this cable suitable for use in drag chain or dynamic applications?

A: Thanks to its flexible PUR jacket and dynamic bend radius of minimum 7.5 times the cable diameter, the S200 cable is specifically designed for use in cable tracks and continuous motion, ensuring durability and performance in drag chain systems.

Q: Where can I purchase or source the S200 SERVO CABLE 6FX3802-7CD01-1BA0 in India?

A: This cable is available through authorized distributors, manufacturers, service providers, suppliers, and traders across India. Contact your Siemens supplier or local industrial automation vendor for standard or custom length requirements.

Q: What process should I follow to ensure proper installation and maximum lifespan?

A: Make sure the cable is installed using the minimum recommended bend radius, and connectors are properly mated to maintain IP65 protection. Avoid exposure to temperatures outside -20C to +80C, and ensure non-condensing humidity below 90% for optimal performance.

Q: What protection features does the S200 cable offer against industrial hazards?

A: The cable features a halogen-free, flame-retardant sheath, overall and individual shields for EMC, oil resistance according to DIN EN 50290-2-22, and an IP65 rating (with mated connectors), protecting it from environmental and electrical hazards.
