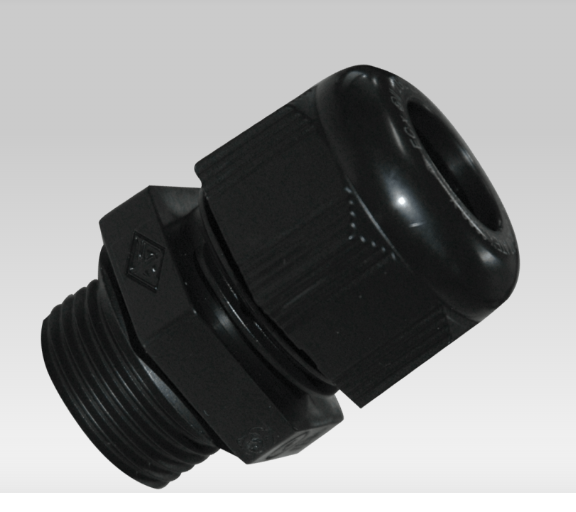

Cable glands IP 66 - zone 2 and 22

Ex cable gland in accordance with IEC 62444 with strain relief and locknut. Suitable for use in Ex zones 2 and 22 according to IEC 60079-1, IEC 60079-7 and IEC 60079-31 for indoor applications and for unprotected outdoor installation according to DIN VDE 0100, Part 737. Ex marking for explosive gas atmospheres II 3G Ex ec IIC Gc. Ex marking for explosive dust atmospheres II 3D Ex tc IIIC Dc. For ambient temperature maximum +40 C and minimum -20 C, at relative humidity 50% at 40 C or 100% at 25 C. Material temperature resistance from -60 C to +85 C; flammability according to VDE 0471, Part 2 glow-wire test 960 C, UL 94 V-0. Degree of protection IP66 to IEC 60529. Material: mounting cable gland PC polycarbonate, locknut PA polyamide; weather-resistant according to UL 746C f1; halogen-free. Color: black, similar to RAL 9011. Manufacturer: HENSEL, AXM.
