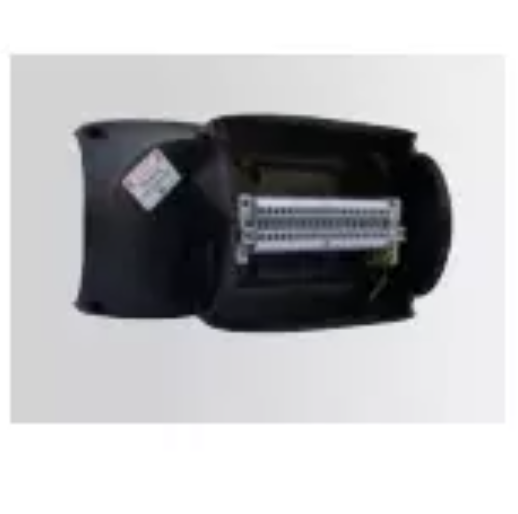

Cable Junction Boxes (Grey & Black)

Name: Cable Junction Boxes (Grey & Black)
Brand: Emson Power Engineers
Price: 9990.0 INR
Availability: InStock

Price 9990.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes (Grey & Black) Specification

Efficiency
100% Insulation Efficiency

Overheating Protection
Yes - Heat Resistant Material

Operating Temperature
-20C to +85C

Shape
Rectangular, Square

IP Rating
IP65/IP66

Insulation Material
Flame Retardant Thermoplastic

Surface Finish
Matte, Smooth

Feature
Robust, UV Resistant, Weatherproof

Mounting Type
Wall Mount, Surface Mount

Connector Type
Cable Gland Support

Humidity %
Up to 95% RH (Non-condensing)

Product Type
Cable Junction Box

Application
Electrical Cable Management, Outdoor & Indoor Applications

Protection Level
Sealed, Water & Dust Proof

Frequency (MHz)
50-60 Hz

Rated Voltage
Up To 500V AC

Energy Consumption
Nil

Output Type
Multiple Terminal Outputs

Color
Grey & Black

Dimension (L*W*H)
110x80x50 mm, 150x110x70 mm & others

Weight
5 Kilograms (kg)

Size
130X130X77

Phase
PHASE 3

Input Voltage
110V/230V/415V AC

Material
High Impact ABS Plastic / Polycarbonate

No Of Poles
Single and Multiple Poles Available

Connection Type
Screw Terminal & Push Fit

Corrosion Resistance
Excellent

Minimum Wall Thickness
3 mm

Sealing Gasket
Pre-Fitted, Silicone

RoHS Compliant
Yes

Accessory Options
Internal Mounting Plate, Screws Included

Custom Engraving/Printing
Available

Fire Resistance
V2 Rated

Resistance to Impact
IK08

Number of Cable Entries
4, 6, 8 or Customized

Cover Type
Screw-on & Snap-on

Standards Compliance
CE, RoHS

Cable Junction Boxes (Grey & Black) Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes (Grey & Black)

Material	Poly Carbonate
IP Rating	IP68
Brand	Hensel
Dimensions	130 x 130 x 70 mm
Weight	1.241 Kg
Model Name/Number	WP 0606 B
Rated Insulation Voltage	690 V AC
Rated Current	40 A
Tightening Torque For Terminal	1.5 Nm
Availability	In Stock

Resilient Design for Demanding Environments

These cable junction boxes are engineered to secure electrical connections in both indoor and outdoor applications. The use of high-impact ABS and polycarbonate materials ensures durability, while resistance to UV, corrosion, impact (IK08), and extreme temperatures means sustained protection, even in harsh conditions. Each enclosure includes a pre-fitted silicone gasket for superior sealing, meeting IP65/IP66 protection standards.

Flexible Entry & Mounting Options

With options for 4, 6, 8, or customized cable entries and a choice of rectangular or square shapes, these boxes cater to diverse cabling needs. Wall-mount and surface-mount versions make installation straightforward, while screw-on and snap-on covers provide quick accessibility for maintenance. User-friendly terminal connections support various wiring requirements.

Compliant, Safe, and Customizable

Adhering to CE and RoHS standards, these junction boxes are fire-rated (V2) and made from flame-retardant thermoplastics. Customization options such as engraving, printing, and accessory fittings (like internal mounting plates) allow for tailored solutions, enhancing utility for distributors, manufacturers, service providers, and traders across India.

FAQ's of Cable Junction Boxes (Grey & Black):

Q: How do I choose the right cable junction box configuration for my requirements?

A: Assess your cabling needs based on the number of cable entries (4, 6, 8, or custom), mounting style (wall or surface mount), and terminal type (screw terminal or push fit). You should also consider IP rating (IP65/IP66), size, and specific application environment to ensure appropriate protection and fit.

Q: What benefits do the IK08 impact resistance and V2 fire rating provide?

A: The IK08 impact resistance ensures the junction box can withstand strong impacts, protecting internal wiring and connections. The V2 fire resistance offers enhanced safety by minimizing the risk of ignition or fire propagation, making the box suitable for critical electrical installations.

Q: Where are these junction boxes typically installed?

A: These boxes are ideal for a wide range of electrical cable management tasks, from indoor distribution boards to outdoor junctions exposed to weather. Applications include industrial control panels, building wiring, outdoor lighting, and applications where reliability in harsh or humid conditions is crucial.

Q: What is the process for installing these junction boxes?

A: Mount the box securely using wall or surface-mount options. Feed cables through the designated cable entries, connect wiring to the terminals (screw terminal or push fit as required), and seal the enclosure using the screw-on or snap-on cover. The pre-fitted silicone gasket ensures a watertight and dustproof seal.

Q: Can the junction boxes be customized for specific projects?

A: Yes, custom engraving or printing for labels and identification is available upon request. The number of cable entry points, dimensions, and accessory options (such as internal mounting plates) can also be tailored to meet specific needs.

Q: What makes these junction boxes suitable for use in high humidity or corrosive environments?

A: Manufactured from flame-retardant thermoplastics with excellent corrosion resistance, these boxes maintain performance in high humidity (up to 95% RH, non-condensing) and offer long-term durability in environments exposed to moisture or corrosive agents.

Q: How do these boxes support electrical safety and regulatory compliance?

A: The boxes are CE and RoHS certified, guaranteeing they conform to international safety and environmental standards. Features such as 3 mm minimum wall thickness, 100% insulation efficiency, and pre-fitted silicone gaskets further reinforce protection against electrical hazards.
