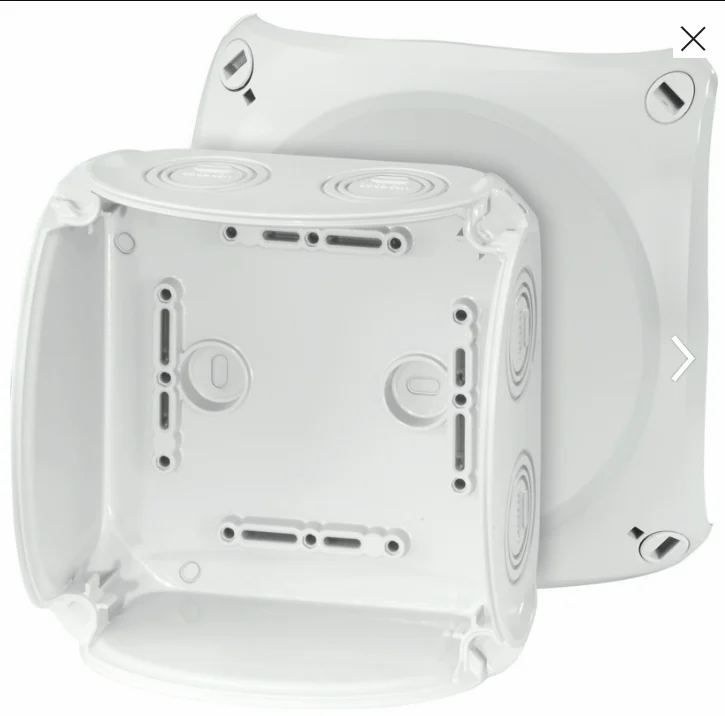

Cable Junction Boxes IP 66/67/69 (Grey)

Name: Cable Junction Boxes IP 66/67/69 (Grey)
Brand: Emson Power Engineers
Price: 17415.0 INR
Availability: InStock

Price 17415.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66/67/69 (Grey) Specification

Insulation Material
Polycarbonate

Shape
Rectangular

Surface Finish
Textured (Matte Grey)

Humidity %
<95% RH (Non-Condensing)

Mounting Type
Wall, Surface or Pole Mount

Overheating Protection
Thermal Endurance (No Inbuilt Thermal Cut-off)

IP Rating
IP66, IP67, IP69

Connector Type
PG/NPT Gland Entry, Terminal Block Option

Operating Temperature
-40C to +80C

Feature
UV Resistant, Weatherproof, Corrosion-Resistant, Impact Resistant, Maintenance Free

Product Type
Cable Junction Box

Application
Suitable for electrical wiring, cable management, industrial and outdoor installations

Protection Level
High Protection - Waterproof, Dustproof

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 690V

Output Type
Terminal/Connector Based

Color
Grey

Dimension (L*W*H)
Available in multiple sizes (e.g., 110 x 110 x 66 mm, 190 x 140 x 70 mm)

Weight
5 Kilograms (kg)

Size
255X355X122

Input Voltage
AC/DC Compatible, Up to 690V

Phase
PHASE 3

No Of Poles
2 to 8 Poles (depending on model)

Material
High Impact Polycarbonate (Halogen-Free)

Connection Type
Screw or Snap-in Terminal

Internal Mounting
DIN Rail and Plate Mounting Supported

UV Protection
Yes (Suitable for Outdoor Use)

Lid Transparency
Opaque Grey

Halogen Free
Yes

Standards Compliance
IEC 60529, EN 62208

Impact Resistance
IK08

Seal Type
Silicone (UV and Water Resistant)

Cable Entry Options
Pre-marked Knockouts for Multiple Entry Points

Resistance
Resistant to Acids, Alkalis and Salts

Cover Type
Screw-Locked with Sealable Gasket

Flammability Class
UL 94 V-2

Cable Junction Boxes IP 66/67/69 (Grey) Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66/67/69 (Grey)

Material	Poly Carbonate
IP Rating	IP66
Brand	Hensel
Dimensions	355 x 255 x 122 mm
Model Name/Number	KF 5050 G
Rated Insulation Voltage	690 V AC
Rated Current	150 A
Weight	2.55 Kg
Tightening Torque For Terminal	12.0 Nm
Ambient Temperature	-25 to 70 Degree C
Relative Humidity	50%
Availability	In Stock

Rugged Outdoor Performance

Designed for challenging environments, these junction boxes maintain high protection levels (IP66, IP67, IP69) against water, dust, and mechanical impacts. The UV-resistant, corrosion-resistant polycarbonate body and silicone gasket ensure reliable performance outdoors, even under extreme weather conditions. Their maintenance-free construction saves valuable time and resources on-site.

Flexible Configuration Options

Featuring pre-marked knockouts for various cable entry points, these boxes accommodate diverse wiring configurations for multiple applications. With both DIN rail and plate mounting support and connection options like screw or snap-in terminals, installers gain flexibility and ease of setup. Boxes are available in multiple sizes and pole configurations, adapting well to different project requirements.

Comprehensive Safety and Compliance

Certified to IEC 60529 and EN 62208, and carrying a flammability class of UL 94 V-2, these junction boxes ensure high safety and compliance for industrial projects. The material is halogen-free, ensuring low toxicity in the event of fire, while offering resistance to acids, alkalis, and salts. Their impact resistance (IK08) further enhances operational safety in demanding settings.

FAQ's of Cable Junction Boxes IP 66/67/69 (Grey):

Q: How can these Cable Junction Boxes be installed for outdoor electrical setups?

A: These junction boxes support flexible installation on walls, poles, or other surfaces using mounting hardware. Their screw-locked, sealable covers and UV-resistant design make them especially suitable for outdoor or industrial environments, providing watertight and dustproof protection once mounted.

Q: What applications are these junction boxes best suited for?

A: They are ideal for electrical wiring, cable management, and equipment connections in industrial plants, outdoor lighting, renewable energy projects, and any setup requiring high protection against moisture, dust, and chemicals.

Q: When should I choose the IP66, IP67, or IP69 rating options?

A: Choose IP66 for environments requiring strong dust and water jet resistance, IP67 for short-term immersion protection, and IP69 for areas demanding resistance to high-pressure, high-temperature water or difficult cleaning processes, such as food processing zones.

Q: Where can I use these junction boxes in terms of climate and weather conditions?

A: These boxes are designed for both indoor and outdoor use, functioning reliably in temperatures from -40C to +80C and humidity levels up to 95% RH (non-condensing). Their UV resistance and weatherproof properties make them suitable for harsh Indian climates.

Q: What is the process for cable entry and wiring within the box?

A: Installers can utilize the pre-marked knockouts to configure cable entry points as needed. The internal space supports both DIN rail and plate mounting, accommodating a range of terminals, connectors, and wiring configurations with compatible PG/NPT glands or snap-in terminals.

Q: How do these junction boxes benefit industrial and commercial installations?

A: These enclosures ensure lasting durability and protection for sensitive electrical connections, minimizing maintenance needs and reducing downtime. Their resistance to corrosion, chemicals, and impact ensures reliable function in demanding sites, providing a cost-effective, safe solution over time.
