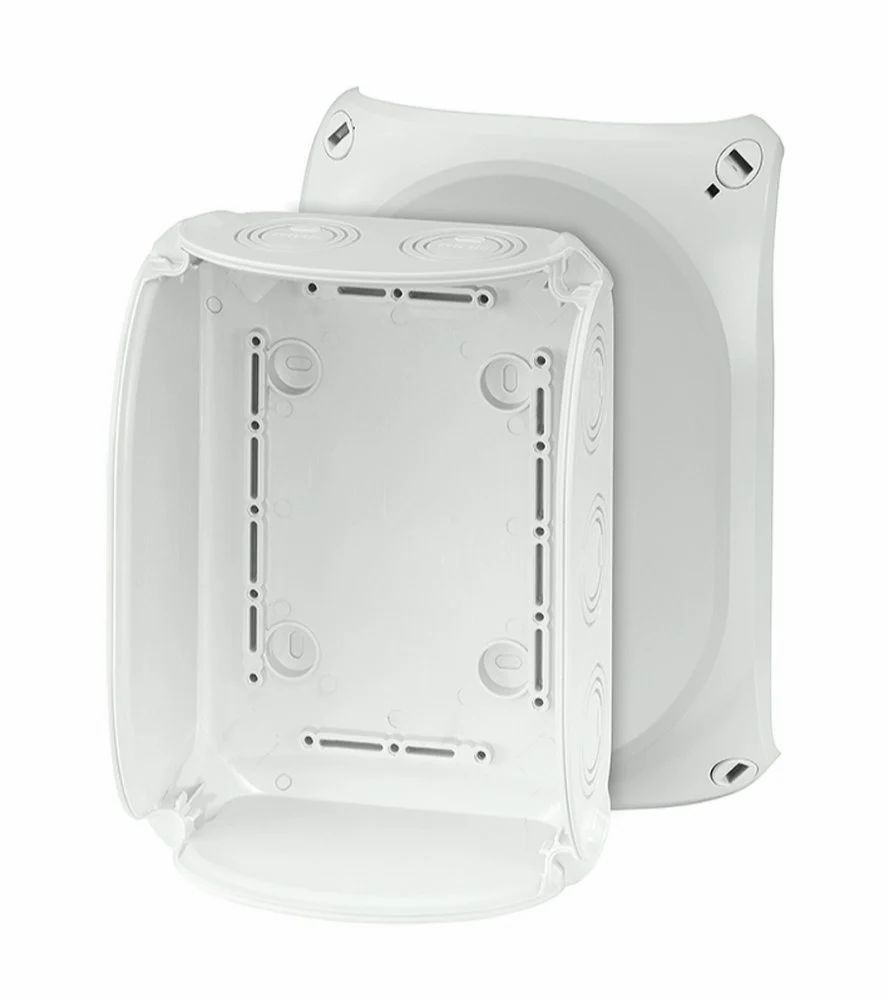

Cable Junction Boxes IP 66/67/69 (Grey)

Name: Cable Junction Boxes IP 66/67/69 (Grey)
Brand: Emson Power Engineers
Price: 645.0 INR
Availability: InStock

Price 645.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66/67/69 (Grey) Specification

Shape
Rectangular / Square (based on size)

Overheating Protection
Yes (Thermally stable material)

Power Factor
N/A (Not applicable)

Insulation Material
Polycarbonate / ABS

Feature
Weatherproof, Dustproof, Corrosion-Resistant

Humidity %
Max. 95% RH (non-condensing)

Surface Finish
Matte textured finish

Mounting Type
Wall/Surface Mounting

IP Rating
IP66, IP67, IP69

Connector Type
Cable Gland / Screw Terminal

Efficiency
100% (passive, no loss)

Operating Temperature
-40C to +80C

Product Type
Cable Junction Box

Application
Electrical Cable Management, Wire Connectivity Enclosures

Protection Level
IP66 / IP67 / IP69

Frequency (MHz)
50-60 Hz

Rated Voltage
230/400 V AC

Energy Consumption
N/A (Passive component)

Output Type
Terminal Output

Color
Grey

Dimension (L*W*H)
100x100x70 mm, 150x110x70 mm, 200x200x90 mm (Other sizes available)

Weight
5 Kilograms (kg)

Size
104X104X70

Input Voltage
Up to 400 V AC

Phase
PHASE 3

Material
High-Quality Polycarbonate (Grey)

Connection Type
Screw Terminal / Cable Gland

No Of Poles
2 - 6 Poles (configurable)

Accessories
Mounting screws, gaskets included

UV Resistance
Yes (suitable for outdoor exposure)

Cable Entry
Pre-marked knockouts for flexible cable entry

RoHS Compliance
Yes

Cover Type
Screw-on with seal gasket

Standards
IEC 60529, EN 62208

Flame Retardant Grade
UL94 V-2 or better

Seal Material
Silicone Gasket (high sealing protection)

Shock Resistance
IK08

Cable Junction Boxes IP 66/67/69 (Grey) Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66/67/69 (Grey)

Material	Poly Carbonate
IP Rating	IP 65
Brand	Hensel
Dimensions	104 x 104 x 70 mm
Weight	0.137 Kg
Model Name/Number	KF 0400 H
Rated Insulation Voltage	1000 V AC
Mounting Width	83 mm
Ambient Temperature	-25 to 70 Degree C
Availability	In Stock

Exceptional Protection for Harsh Environments

Engineered for maximum durability, these junction boxes boast IP66, IP67, and IP69 ratings, making them weatherproof, dustproof, and water-resistant-even suitable for outdoor exposure and high-pressure washdowns. The flame-retardant, thermally stable material safeguards against overheating and accidental impacts (IK08), ensuring operational safety in challenging industrial or commercial settings.

Flexible and Easy Cable Entry

Each enclosure is equipped with pre-marked knockouts that facilitate flexible cable entries, accommodating a range of wire sizes and connection methods. The screw terminal or cable gland entry options ensure secure connectivity, while the silicone gasket guarantees a reliable seal against environmental contaminants.

Compliant, Safe, and Versatile

Conforming to international standards like IEC 60529 and EN 62208, these junction boxes meet global requirements for electrical safety and performance. Their modular design permits configuration from 2 to 6 poles for varied applications, making them ideal for distributors, manufacturers, service providers, suppliers, and traders across India.

FAQ's of Cable Junction Boxes IP 66/67/69 (Grey):

Q: How do I install a Cable Junction Box with an IP66/67/69 rating?

A: Mounting the junction box is straightforward-simply use the included screws to secure it to a wall or surface. Insert cables through pre-marked knockouts and attach connections via screw terminals or cable glands. The silicone gasket ensures a dust- and watertight seal.

Q: What benefits does the silicone gasket provide in these cable junction boxes?

A: The high-quality silicone gasket delivers superior sealing performance, offering maximum protection against moisture, dust, and contaminants. This ensures reliable operation even in extreme weather and industrial conditions.

Q: When should I use a junction box with such high IP ratings?

A: These junction boxes are essential in environments exposed to water, high humidity, or dust-such as outdoor installations, manufacturing plants, or any area where equipment demands robust protection.

Q: Where are these cable junction boxes suitable for application?

A: They are ideal for both indoor and outdoor setups, including electrical distribution, cable management, and wire enclosures in commercial, industrial, and residential settings throughout India.

Q: What is the process for cable entry into the enclosure?

A: Cables can be routed through pre-marked knockouts, allowing for flexible entry points. After knocking out the entry point, insert your cable and secure it with a cable gland or by terminating directly to the screw terminal inside the box.

Q: What advantages does the UV-resistant polycarbonate material offer?

A: UV-resistant polycarbonate ensures longevity and prevents degradation from sun exposure, making these junction boxes excellent for outdoor use where material stability is crucial.

Q: Is this junction box compliant with safety and environmental standards?

A: Yes, the product meets key standards: IEC 60529, EN 62208 for protection, UL94 V-2 for flame retardancy, and RoHS for environmental friendliness, ensuring safe and compliant usage.
