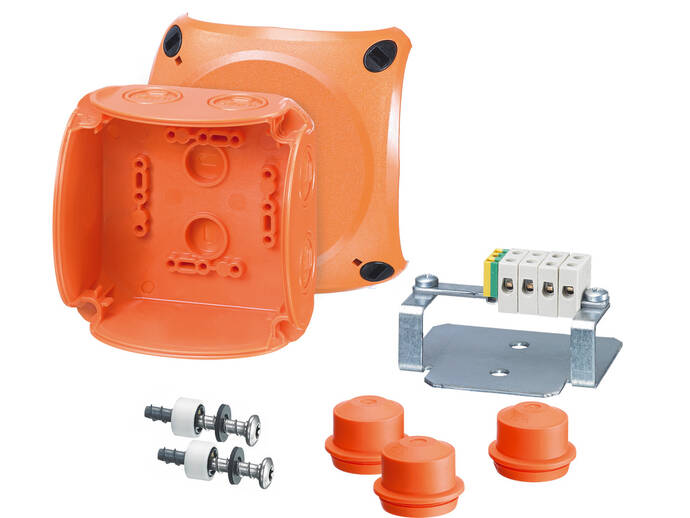

Cable Junction Boxes IP 66/67 with PE Inlay

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66/67 with PE Inlay

Price 1620.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66/67 with PE Inlay Specification

IP Rating
IP66/IP67

Insulation Material
PE Inlay

Shape
Rectangular

Overheating Protection
YES

Mounting Type
Wall/Surface Mount

Surface Finish
Matte

Feature
UV Resistant, Chemical Resistant, High Impact Strength, Corrosion Proof

Connector Type
Cable Gland Entry

Operating Temperature
-25C to +80C

Humidity %
Up to 95% RH

Product Type
Cable Junction Box

Application
Electrical Cable Connection and Distribution

Protection Level
Waterproof, Dustproof

Frequency (MHz)
50-60 Hz

Rated Voltage
415 V AC

Output Type
Terminal Block Type

Color
Grey

Dimension (L*W*H)
190 mm x 140 mm x 70 mm

Weight
5 Kilograms (kg)

Phase
PHASE-3

Size
130X130X77

Input Voltage
415 V AC

Material
Polycarbonate (PC) with Polyethylene (PE) Inlay

No Of Poles
4

Connection Type
Screw Terminal

Standards Compliance
IEC 60529, EN 62208

Flammability Standard
UL94 V-2

Halogen Free
Yes

Sealing Gasket
Pre-installed PE Gasket

Mechanical Impact Resistance
IK08

Terminal Capacity
Up to 10 mm2 Cable

Ingress Protection Certification
Tested as per IEC 60529

Cable Entry Knockouts
4 Side Knockouts for Flexible Entry

Cover Fastening
Screw Locked Cover

Cable Junction Boxes IP 66/67 with PE Inlay Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66/67 with PE Inlay

Procure the epitome of protection and versatility with our Cable Junction Boxes IP 66/67 with PE Inlay, designed for virtuoso performance in the most demanding electrical environments. Featuring four side knockouts for flexible entry, these junction boxes offer a glorious balance of accessibility and sealing, meeting unprecedented standards for dustproof and waterproof protection. Grab yours today to enjoy halogen-free design, superior mechanical strength (IK08), and UL94 V-2 flammability resistance. The pre-installed PE gasket ensures ephemeral ease of installation while the 415 V AC rating guarantees robust connectivity for phase-3 and multiple pole applications. Unleash next-level reliability and safety with this corrosion-proof, matte-finish polycarbonate masterpiece.

Adaptability and Application Advantages

The Cable Junction Boxes IP 66/67 with PE Inlay are engineered for both specific and general uses in cable connection and distribution across diverse settings. With a matte, high-impact, UV-resistant exterior, they excel in industrial facilities, commercial spaces, and residential installations. Surface-mounted for easy access, these boxes provide a flexible, secure, dustproof, and waterproof environment for up to four cable connections, making them the ideal solution for robust, long-term electrical distribution and protection.

Domestic Market Reach and Certified Shipments

Our Cable Junction Boxes IP 66/67 with PE Inlay cater to an extensive domestic market in India, with products thoroughly certified to IEC 60529 and EN 62208 standards. Each shipment is managed to ensure compliance and swift delivery. Shipped goods are carefully handled by trusted transport services, providing traders, manufacturers, distributors, and service providers with reliable, certified, and damage-free products. We offer flexible payment terms to accommodate seamless procurement and effective supply chain operations for every customer.

FAQ's of Cable Junction Boxes IP 66/67 with PE Inlay:

Q: How do the Cable Junction Boxes IP 66/67 with PE Inlay protect electrical connections?

A: The Junction Boxes provide superior sealing against water and dust, thanks to their IP66/IP67 rating and pre-installed PE gasket. They are engineered with halogen-free, corrosion-proof materials and offer mechanical impact resistance (IK08) for optimal protection.

Q: What is the use of the four side knockouts in these junction boxes?

A: The four side knockouts allow for flexible and easy cable entry from different directions, simplifying installation and enabling versatile wiring configurations for electrical distribution needs.

Q: When should I use an IP66/IP67 rated junction box?

A: Use these boxes in environments that demand stringent protection against water, dust, and environmental hazards, such as outdoor installations, industrial plants, or locations with high humidity and potential exposure to chemicals.

Q: Where are these cable junction boxes most commonly installed?

A: They are surface or wall-mounted in commercial, industrial, or residential settings such as electrical rooms, distribution boards, and machinery panels, where robust protection and reliability are crucial.

Q: What are the advantages of the PE inlay and polycarbonate construction?

A: The PE inlay enhances insulation and moisture resistance, while the polycarbonate body offers high impact strength, UV resistance, and chemical resistance, resulting in long-lasting, safe, and reliable electrical connections.

Q: How is the shipment of Cable Junction Boxes managed for bulk orders?

A: Shipments for bulk orders are coordinated through reliable transport services, ensuring certified, damage-free delivery with flexible payment options for distributors, traders, suppliers, and manufacturers across India.
