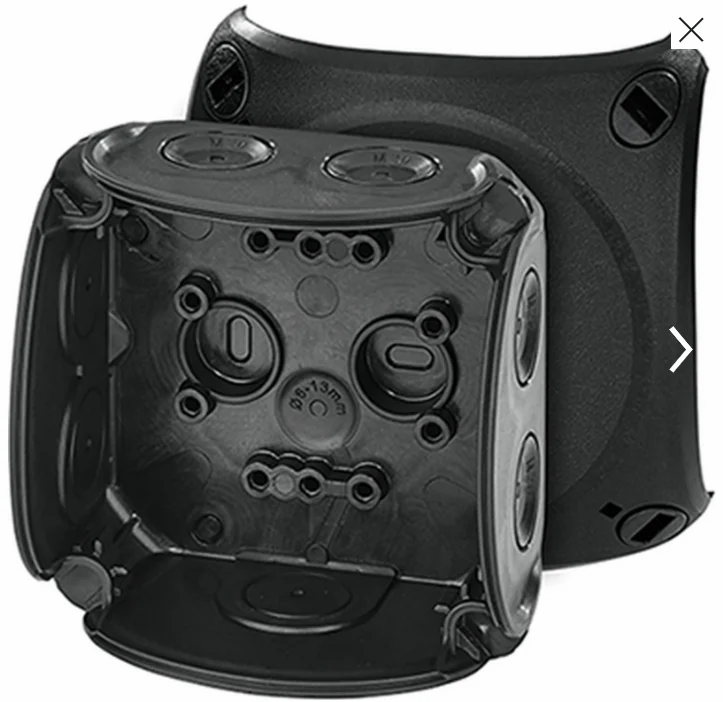

Cable Junction Boxes IP 66/67 with PE Inlay

Name: Cable Junction Boxes IP 66/67 with PE Inlay
Brand: Emson Power Engineers
Price: 1755.0 INR
Availability: InStock

Price 1755.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66/67 with PE Inlay Specification

IP Rating
IP66/IP67

Connector Type
Screw/Push Fit

Efficiency
100% Passive

Feature
Weatherproof, UV Resistant, Corrosion Resistant

Mounting Type
Wall-Mounted / Surface Mounted

Humidity %
up to 95% (non-condensing)

Shape
Rectangular

Insulation Material
PE (Polyethylene)

Overheating Protection
Yes, with PE Inlay insulation

Surface Finish
Smooth, Matt

Operating Temperature
-25C to +60C

Product Type
Cable Junction Box with PE Inlay

Application
Electrical Cable Termination & Distribution

Protection Level
IP 66/67

Frequency (MHz)
50-60 Hz

Rated Voltage
up to 690V AC

Energy Consumption
Not Applicable (Passive component)

Output Type
Cable Terminal Output

Color
Grey

Dimension (L*W*H)
110 110 66 mm (varies by model)

Weight
5 Kilograms (kg)

Phase
PHASE-3

Input Voltage
up to 690V AC

Size
130X130X77

No Of Poles
Single / Multiple (as required)

Connection Type
Screw Terminal / Push-in

Material
Polycarbonate with Polyethylene (PE) Inlay

Lid Fixing
Stainless Steel Screws

Impact Resistance
IK08 Rated

Flame Retardancy
UL94 V-2

Halogen Free
Yes

UV Stability
Suitable for outdoor installation

Ingress Protection Certification
Certified as per IEC 60529

Earth Terminal
Pre-installed PE Terminal

Cable Entry
Knockouts for M20/M25 Cable Glands

Chemical Resistance
Acids, Alkalis, Salts

Cable Junction Boxes IP 66/67 with PE Inlay Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66/67 with PE Inlay

Material	Polycarbonate
Shape	Square
Size	130X130X77
Ingress Protection	IP66
Mounting Type	Wall Mount
Cover Type	Screwed
With Terminal Block	No
Color	White
Availability	In Stock

Superior Protection for Electrical Installations

Engineered to provide exceptional ingress protection (IP66/67) and certified under IEC 60529, these cable junction boxes guard against dust, heavy rain, and temporary immersion in water. Their flame retardant polycarbonate and PE inlay construction offers further security, making them ideal for indoor and outdoor applications where safety and reliability are paramount.

Versatile, User-Friendly Design

With knockouts for M20/M25 cable glands, pre-installed PE earth terminals, and both screw or push-in connection types, installation is streamlined for a wide range of electrical projects. The weatherproof, UV-resistant, and corrosion-resistant enclosure supports flexible mounting options-whether wall-mounted or surface-mounted-adapting easily to varied setups.

Built to Last in Extreme Conditions

These junction boxes can withstand operating temperatures from -25C up to +60C and humidity up to 95% (non-condensing). The rugged polycarbonate with PE inlay ensures long-term performance, while smooth matt finish and halogen-free materials cater to safety and durability in diverse environments.

FAQ's of Cable Junction Boxes IP 66/67 with PE Inlay:

Q: How does the IP66/67 rating benefit the application of these cable junction boxes?

A: The IP66/67 rating guarantees protection against dust ingress, powerful water jets, and short periods of immersion. This ensures safe operation of electrical connections in demanding indoor or outdoor environments, reducing the risk of outages and equipment damage.

Q: What are the primary installation steps for the IP66/67 cable junction box?

A: The process involves selecting a mounting site, securing the enclosure with stainless steel screws, using the knockouts for M20/M25 cable glands to run cables, and connecting wires via screw or push-in terminals. The pre-installed PE earth terminal simplifies grounding, enhancing safety and compliance.

Q: When is it preferable to use a junction box with a PE inlay and what advantages does it provide?

A: Use a junction box with a PE inlay when electrical insulation and additional safety are required, such as in industrial or outdoor settings. The PE inlay serves as a robust insulator, providing overheating protection while supporting the enclosure's flame retardancy and chemical resistance.

Q: What range of cable entry and pole configurations is supported by these junction boxes?

A: These boxes feature multiple knockouts to accommodate M20 and M25 cable glands, making them adaptable to different cable sizes and layouts. They support single or multiple pole configurations, offering flexibility for a variety of cable termination and distribution needs.

Q: Where can these cable junction boxes be installed, and are they suitable for outdoor use?

A: They can be installed in industrial, commercial, residential, and outdoor environments. UV resistance, weatherproofing, corrosion resistance, and IP66/67 certification make them especially well-suited for exposed outdoor applications, such as building exteriors or remote sites.

Q: How does the construction material enhance the performance of these junction boxes?

A: The polycarbonate enclosure, reinforced with a polyethylene (PE) inlay, delivers excellent impact resistance (IK08), chemical resistance, UV stability, and halogen-free safety. This blend provides lasting durability, even under challenging environmental conditions.

Q: What is the rated voltage and frequency supported by the cable junction boxes?

A: These boxes are designed for electrical systems with input voltages up to 690V AC and operate efficiently within a frequency range of 50-60 Hz, making them suitable for most industrial and commercial power distribution installations.
