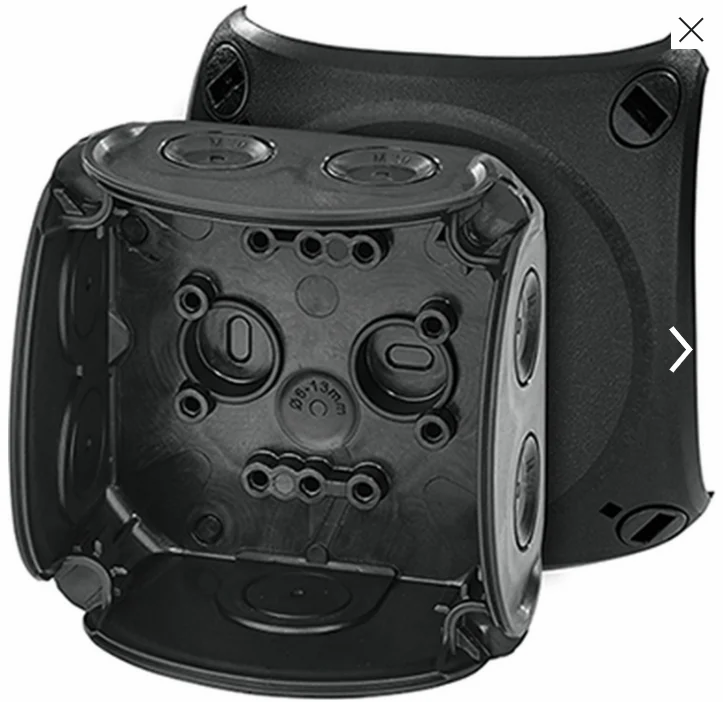

Cable Junction Boxes IP 66/67 with PE Inlay

Name: Cable Junction Boxes IP 66/67 with PE Inlay
Brand: Emson Power Engineers
Price: 1755.0 INR
Availability: InStock

Price 1755.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66/67 with PE Inlay Specification

Shape
Rectangular

IP Rating
IP66/IP67

Efficiency
High dielectric strength, up to 20kV/mm

Feature
High Impact Resistance, Weatherproof, UV Resistant

Insulation Material
Polyethylene (PE) Inlay

Humidity %
Up to 95% non-condensing

Mounting Type
Surface/Wall Mountable

Overheating Protection
Yes, Heat-Resistant Body

Operating Temperature
-25C to +60C

Connector Type
Brass/PE Terminal Block

Surface Finish
Matte Textured

Product Type
Cable Junction Box

Application
Electrical Cable Connection and Distribution

Protection Level
IP66/IP67

Frequency (MHz)
50-60 Hz

Rated Voltage
Up to 690V AC

Output Type
Direct Output

Color
Grey

Dimension (L*W*H)
160 mm x 120 mm x 100 mm

Weight
5 Kilograms (kg)

Input Voltage
100-690V AC/DC

Size
130X130X77

Phase
PHASE-3

No Of Poles
Multi-pole (up to 12)

Material
Polycarbonate with PE Inlay

Connection Type
Screw/Clamp Terminal

Fire Rating
UL 94 V-0

Resistance
Resistant to Chemicals & Oils

Mechanical Impact Protection
IK08

Cable Size Range
1.5 mm2 to 25 mm2

Service Life
Over 20 years in normal conditions

Lid Type
Screw-fastened with Seal

Standards Compliance
IEC 60529, RoHS

Gland Entry
Multiple cable entries, customizable sizes

Seal Material
Silicone Gasket

Cable Junction Boxes IP 66/67 with PE Inlay Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66/67 with PE Inlay

Explore our latest Cable Junction Boxes IP 66/67 with PE Inlay - a first-class solution for multi-cable electrical distribution. Highlighted by superior durability and resistance, these masterpieces feature a screw-fastened lid and silicone gasket, ensuring watertight performance. Decorated with industry-leading standards such as IEC 60529 and UL 94 V-0, these boxes provide high impact and fire resistance. From customizable sizes and direct output to exceptional weatherproof qualities, this box offers reliable protection, accommodating cable sizes from 1.5 mm2 to 25 mm2. Ideal for sophisticated industrial and commercial applications.

Features and Material Excellence of Cable Junction Boxes IP 66/67

Cable Junction Boxes IP 66/67 with PE Inlay set a benchmark in reliability and safety, featuring multiple gland entries and a robust screw-clamp terminal system. The machine's highlighted attributes include phase-three compatibility, up to 12 poles, and high dielectric strength (up to 20kV/mm). With a heat-resistant, polycarbonate body adorned with a matte texture and UV-resistant finish, the box is ideal for diverse environments, supporting operation in humidity up to 95%. Extra features include a fireproof, chemical-resistant build and secure mounting options.

Certifications and Ordering Information

These cable junction boxes are IEC 60529 and UL 94 V-0 certified, ensuring global standards in safety and quality. Order processing is seamless, with options for distributors, manufacturers, and service providers. Secure shipping serves both export and domestic markets, and sample availability can be provided upon request for your evaluation. Payment terms are flexible, accommodating advance payments or agreements as required, ensuring hassle-free procurement and peace of mind for all partners across India.

FAQ's of Cable Junction Boxes IP 66/67 with PE Inlay:

Q: How do Cable Junction Boxes IP 66/67 ensure reliable cable connection and protection?

A: They feature a screw-fastened lid with a silicone seal, offering IP66/IP67 protection against dust and water, high dielectric strength, and resistance to chemicals, heat, and impact for secure cable distribution.

Q: What are the extra features that make these junction boxes stand out?

A: The boxes offer multi-pole connectivity (up to 12), compatibility with cables from 1.5 mm2 to 25 mm2, weatherproofing, UV resistance, and a fire-retardant build, alongside a robust brass/PE terminal block and a PE inlay for enhanced insulation.

Q: When should I choose a polycarbonate junction box with PE inlay?

A: Selecting this product is ideal when seeking long service life, dependable performance in challenging environments, and compliance with IEC and RoHS standards for specialized electrical installations.

Q: Where can these junction boxes be installed?

A: They are suitable for indoor and outdoor locations, including industrial, commercial, and residential settings, thanks to their IP66/IP67 protection, high impact resistance, and wide operating temperature range.

Q: What is the process for obtaining a sample of the Cable Junction Box?

A: To request a sample, contact the supplier or manufacturer directly. The order processing includes secure shipping and prompt dispatch, making it easy for you to evaluate the product for your requirements.

Q: How do these junction boxes benefit distributors and suppliers in India?

A: They offer customizable sizes, global certifications, and a variety of mounting and connection options, making them a versatile, first-choice solution for a broad range of electrical installations across dynamic export markets.
