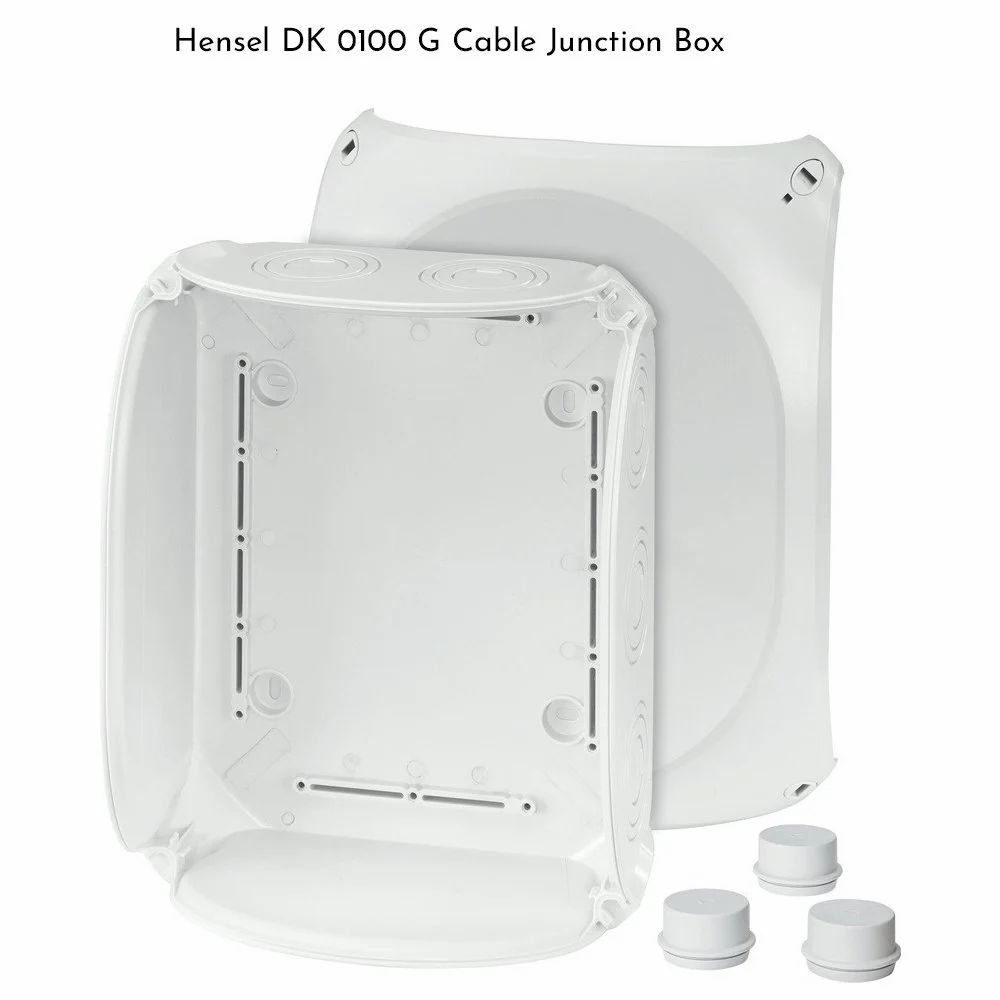

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Name: Cable Junction Boxes IP 66 (Grey) with integrated membranes
Brand: Emson Power Engineers
Price: 1105.0 INR
Availability: InStock

Price 1105.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Grey) with integrated membranes Specification

Efficiency
100% Passive Component

Connector Type
Push-in / Screw Terminal Compatible

Surface Finish
Matt/Texture Finish

Operating Temperature
-25C to +60C

Mounting Type
Wall/Surface Mount

Humidity %
Up to 95% RH (Non-Condensing)

Insulation Material
Polycarbonate

Shape
Square or Rectangular (as per model)

Overheating Protection
High Insulation, Self-Extinguishing

IP Rating
IP66 (Dust & Strong Jet Water Proof)

Feature
Integrated Membrane Entries, Tool-Free Cable Entry, UV Resistant

Product Type
Cable Junction Box

Application
Indoor & Outdoor Electrical Connections

Protection Level
IP66

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 450V AC

Output Type
Terminal Connection

Color
Grey

Dimension (L*W*H)
Approximately 85x85x40 mm (varies by model)

Weight
5 Kilograms (kg)

Size
Available in Various Sizes

Input Voltage
Up to 450V AC

Phase
Single/Three Phase (as required)

Connection Type
Membrane Entry (Integrated Rubber Membranes)

Material
High Impact Polycarbonate

No Of Poles
Multiple Entries (Depending On Box Size)

Cover Type
Snap-On (with or without screws, model dependent)

Compliance
RoHS, CE Marked

Terminal Block
Not Included (Optional)

Resistance
UV and Weather Resistant, Impact Resistant (IK08)

Flammability Class
UL94 V-0 (Self-extinguishing)

Sealing Gasket
Integrated Rubber Gasket for Water Tightness

Membrane Material
High Quality Thermoplastic Elastomer

Cable Entry
Flexible Membrane Entry up to 5 x M20, Toolless Entry

Cable Junction Boxes IP 66 (Grey) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Grey) with integrated membranes

Material	Polycarbonate
Shape	Square
Size	130X130X77
Ingress Protection	IP66
Mounting Type	Wall Mount
Cover Type	Screwed
With Terminal Block	No
Color	White
Availability	In Stock

Superior Water and Dust Protection

Boasting an IP66 rating, these junction boxes are engineered to safeguard your electrical connections against powerful water jets and dust ingress. An integrated rubber gasket ensures watertight seals, making them ideal for harsh environments or outdoor installations, such as industrial sites, building exteriors, or humid indoor spaces.

Quick and Tool-Free Installation

Simplify your wiring projects with flexible membrane entries that accommodate up to 5 x M20 cables, allowing straightforward cable insertion without the need for extra tools. The snap-on cover (available with or without screws depending on the model) further streamlines assembly and maintenance.

Built for Durability and Safety

Constructed from high-impact polycarbonate and self-extinguishing (UL94 V-0) material, these boxes offer excellent resistance to UV rays, weather, and mechanical shocks (IK08). This durability ensures safe and reliable performance, even in challenging environments.

FAQ's of Cable Junction Boxes IP 66 (Grey) with integrated membranes:

Q: How do I install cables into a Cable Junction Box with integrated membranes?

A: Cables can be installed directly through the flexible membrane entries without tools. Simply push the cable through the designated membrane port, which automatically forms a seal around the cable to maintain IP66 protection.

Q: What benefits does the integrated rubber gasket provide for outdoor use?

A: The integrated rubber gasket enhances water-tightness, protecting internal electrical connections from moisture, dust, and environmental elements-making the enclosure highly suitable for outdoor or exposed installations.

Q: Where can Cable Junction Boxes IP66 be installed?

A: These enclosures are designed for both indoor and outdoor mounting, suitable for walls or surfaces in commercial buildings, industrial sites, or residential settings where dust and water ingress protection is crucial.

Q: What cable entry options are available in these junction boxes?

A: Each box features up to five integrated flexible membrane entries (supporting M20-sized cables), allowing you to insert and route multiple cables without needing specialized punch-out tools.

Q: When should I choose a model with screw-secured covers versus snap-on?

A: Choose a screw-secured cover if additional tamper resistance or secure sealing is required in high-vibration environments. Snap-on covers are ideal for quick-access applications and regular maintenance situations.

Q: What makes these junction boxes compliant with safety regulations?

A: They are made from high-impact polycarbonate, rated UL94 V-0 for self-extinguishing, RoHS compliant, and CE marked, ensuring conformance to international flammability, environmental, and safety standards.

Q: Can these boxes handle both single-phase and three-phase connections?

A: Yes, depending on the chosen model and the number of membrane entries, these boxes can accommodate wiring for both single-phase and three-phase electrical applications.
