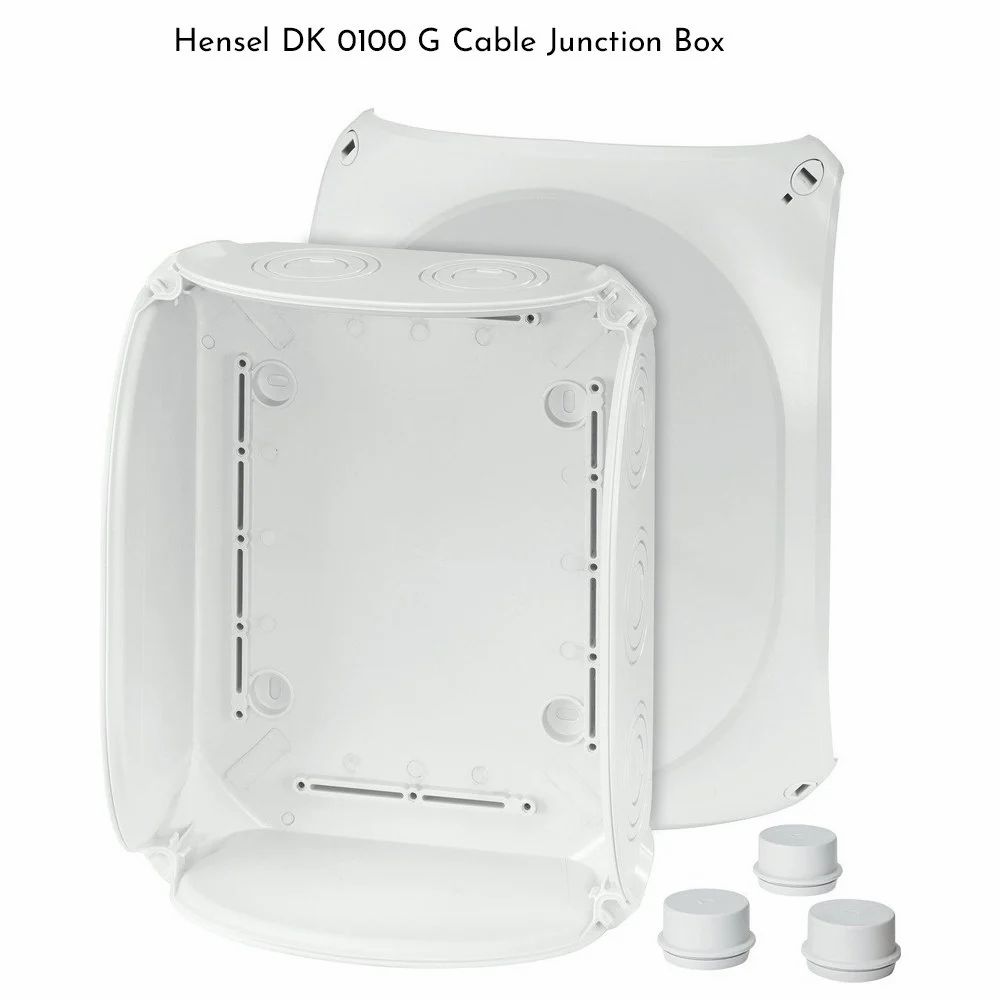

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Name: Cable Junction Boxes IP 66 (Grey) with integrated membranes
Brand: Emson Power Engineers
Price: 2695.0 INR
Availability: InStock

Price 2695.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Grey) with integrated membranes Specification

Power Factor
N/A (Passive component)

Mounting Type
Surface Mount

Overheating Protection
Thermally stable PC enclosure provides resistance to moderate heat

Surface Finish
Matte/Structured finish

Efficiency
100% (Passive enclosure; no energy loss)

Feature
Integrated cable entry membranes, gasketed cover, flame retardant, weatherproof

Humidity %
Up to 95% non-condensing

Connector Type
Integrated membrane cable entries (PG/metric knockouts on request)

IP Rating
IP66 (Dust-tight and protected against powerful water jets)

Shape
Rectangular/Square

Operating Temperature
-25C to +40C

Insulation Material
Polycarbonate (PC) with rubber gaskets

Product Type
Cable Junction Box

Application
Electrical cable management, termination, and distribution in indoor/outdoor environments

Protection Level
IP66

Frequency (MHz)
DC to 400 MHz (suitable for typical power and low-frequency signal)

Rated Voltage
Up to 690 V AC/DC

Energy Consumption
N/A (Passive device)

Output Type
Cable Pass-through/Distribution

Color
Grey (RAL 7035)

Dimension (L*W*H)
Available in standard sizes e.g., 85 x 85 x 40 mm, 100 x 100 x 50 mm, 150 x 110 x 70 mm (others on request)

Weight
5 Kilograms (kg)

Phase
N/A (Depends on connections configured)

Input Voltage
Up to 690V

Size
Multiple standard sizes

No Of Poles
N/A (Standard for junction box, user-dependent wiring)

Material
High Impact Polycarbonate (PC)

Connection Type
Membrane entry or screw terminal (as per user-configuration)

Cable Entry Options
Integral self-sealing membrane for cable diameters 4-18 mm

Halogen-Free
Yes

Resistance
Resistant to most acids, alkalis, and saline environments

Flammability Class
UL94 V-2

Service Life
>10 Years under normal conditions

Lid Transparency
Opaque lid (transparent option on request)

UV Resistance
Yes, suitable for outdoor use

Enclosure Sealing
Pre-fitted with captive cover screws and silicone or EPDM gasket

Torque for Cover Screws
0.6-1.2 Nm

Cover Fastening
Quarter-turn captive screws

Cable Junction Boxes IP 66 (Grey) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Grey) with integrated membranes

Material	Polycarbonate
Shape	Square
Size	155X210X92
Ingress Protection	IP66
Mounting Type	Wall Mount
Cover Type	Screwed
With Terminal Block	No
Color	White
Availability	In Stock

Exceptional Weatherproof Protection

Engineered to withstand harsh outdoor and indoor environments, these IP66-rated junction boxes provide durable protection from dust, moisture, and aggressive agents such as acids, alkalis, and saline atmospheres. Their UV resistant materials maintain integrity even in direct sunlight, making them suitable for a wide range of installations.

Flexible Cable Entry and Secure Sealing

The integrated self-sealing membrane entries allow for flexible cable installation without the need for additional fittings, accommodating diameters from 4 to 18 mm. Captive quarter-turn screws and precision gaskets (silicone or EPDM) create a secure, tamper-resistant seal, enhancing IP66 protection against ingress.

Simple, Safe, and Long-lasting Solution

These junction boxes feature a high-impact, thermally stable polycarbonate enclosure that is flame-retardant and halogen-free for enhanced operational safety. With service life exceeding 10 years under normal conditions and a matte finish to resist scratches, they offer reliable cable management and peace of mind for installers and end-users alike.

FAQ's of Cable Junction Boxes IP 66 (Grey) with integrated membranes:

Q: How do I install cables into the IP66 junction box's integrated membrane entries?

A: To install cables, simply push the cable through the pre-fitted self-sealing membrane entry, which flexibly accommodates diameters from 4 to 18 mm. The membrane ensures a tight, waterproof seal without the need for extra glands or fittings.

Q: What environments are these cable junction boxes suitable for?

A: These enclosures are ideal for both indoor and outdoor settings, including areas exposed to dust, water jets, sunlight, and aggressive substances like acids, alkalis, or saline environments. Their UV resistance and IP66 rating make them excellent for outdoor installations.

Q: When should I use an opaque versus a transparent lid for the enclosure?

A: An opaque lid (standard) is recommended for general protection and security, preventing visibility of internal components. If visual inspection without opening is needed, a transparent lid is available upon request for easy monitoring.

Q: What is the correct process for fastening the cover, and what torque should be applied?

A: Fasten the cover using the captive quarter-turn screws, ensuring the silicone or EPDM gasket remains correctly seated for full sealing. Apply a torque of 0.6-1.2 Nm to secure the cover properly and maintain IP66 protection.

Q: What are the main benefits of using a polycarbonate enclosure with integrated entry membranes?

A: Polycarbonate provides high impact resistance, thermal stability, and flame retardance (UL94 V-2), while the integrated membrane entries simplify installation and maintain airtight, waterproof sealing for cables without extra accessories.

Q: Where can I source these IP66 junction boxes in India?

A: These cable junction boxes are available through distributors, manufacturers, service providers, suppliers, and traders across India. Various standard sizes can be ordered directly, with customizations offered on request.
