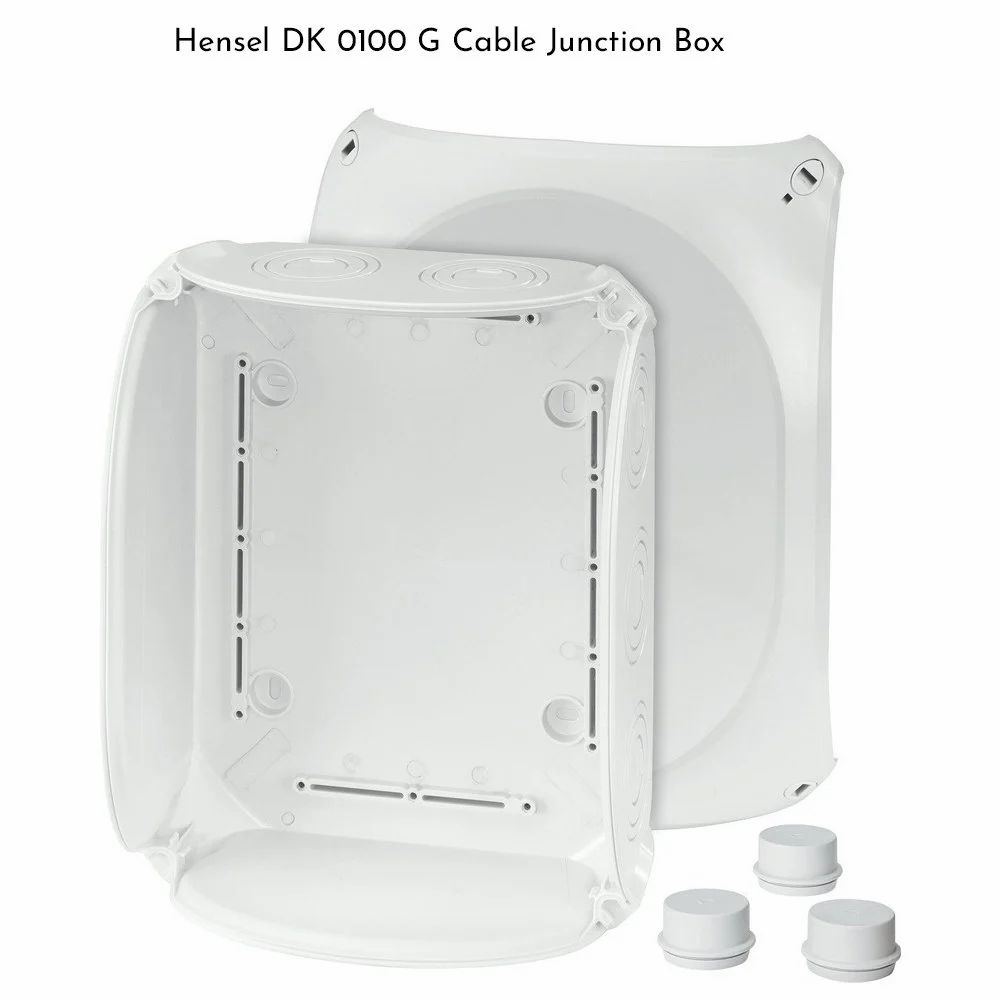

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Name: Cable Junction Boxes IP 66 (Grey) with integrated membranes
Brand: Emson Power Engineers
Price: 3310.0 INR
Availability: InStock

Price 3310.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Grey) with integrated membranes Specification

Connector Type
Knockout Entry with Integrated Membrane

Insulation Material
Polycarbonate (self-extinguishing, halogen-free)

Overheating Protection
Thermal insulation housing

Power Factor
N/A (Passive Device)

Shape
Square

Efficiency
100% Passive (No power loss)

Humidity %
95% RH (Non-condensing)

IP Rating
IP66

Mounting Type
Surface/Wall Mountable

Surface Finish
Smooth, Matte finish

Feature
Integrated cable entry membranes, weather-resistant, UV-resistant

Operating Temperature
-25C to +40C

Product Type
Cable Junction Box with Integrated Membranes

Application
Electrical Cable Management, Indoor & Outdoor Installations

Protection Level
High, Dust & Water Sealed

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 400V AC

Energy Consumption
N/A (Passive Device)

Output Type
Through/Cable Pass-through

Color
Grey

Dimension (L*W*H)
85 mm x 85 mm x 52 mm

Weight
5 Kilograms (kg)

Size
Standard (Other sizes on request)

Input Voltage
Up to 400V AC

Phase
Single/Three Phase compatible

Connection Type
Screw Terminal/Clamp

Material
High-grade Polycarbonate (PC)

No Of Poles
Multi-pole (customization available)

Flame Retardant Grade
UL94 V-2

Maintenance
Tool-free access for wiring and maintenance

Brand Compatibility
Universal

Service Life
10 Years

Cable Entry Options
Multiple integrated membranes for tool-free cable insertion

Corrosion Resistance
Excellent (Suitable for harsh environments)

Accessories Included
Screw set, Sealing plugs

Halogen Free
Yes

Lid Fixing Type
Snap-fit with optional screws for secure closure

UV Resistance
Yes, suitable for outdoor use

Lockable Option
Yes, with optional accessory

Number of Cable Entries
Up to 8 (varies by size)

Cable Junction Boxes IP 66 (Grey) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Grey) with integrated membranes

Material	Polycarbonate
Shape	Square
Size	155X210X92
Ingress Protection	IP66
Mounting Type	Wall Mount
Cover Type	Screwed
With Terminal Block	No
Color	White
Availability	In Stock

Effortless Cable Management Solution

The integrated membrane design of this junction box enables fast, tool-free cable insertion, minimizing installation time. Multiple entry points and a snap-fit lid with optional screw closure streamline the wiring process, offering convenience for installers in diverse settings. This box is engineered to simplify cable routing and secure connections.

Engineered for Reliability and Safety

Built with premium, self-extinguishing polycarbonate, this junction box boasts UL94 V-2 flame retardance, halogen-free construction, and excellent thermal insulation to guard against overheating. Its exceptional corrosion, UV, dust, and water resistance ensure long-term performance, making it ideal for both harsh outdoor and demanding indoor environments.

Versatile Applications and Customization Options

Compatible with both single and three-phase systems, this enclosure supports multi-pole configurations and a wide range of ratings up to 400V AC. Its universal compatibility and range of sizes accommodate various wiring schemes for electrical distributors, manufacturers, and service providers. Lockable and accessorized for security and adaptability.

FAQ's of Cable Junction Boxes IP 66 (Grey) with integrated membranes:

Q: How do I install cables into the IP66 junction box with integrated membranes?

A: Cables can be inserted directly through the pre-formed integrated membranes, eliminating the need for additional tools or knockouts. Simply push the cable through the desired membrane entry point, and it will self-seal around the cable, maintaining the IP66 protection level.

Q: What environments are suitable for using this cable junction box?

A: This junction box is ideal for both indoor and outdoor environments. It is UV resistant, highly corrosion-resistant, halogen-free, and offers a high protection level (IP66) against dust and water, making it suitable for harsh and demanding locations.

Q: When should I consider using the optional lid screws or lockable accessory?

A: Use the optional screws and locking accessory for added security in environments where tampering, vibrations, or unauthorized access could be concerns. The snap-fit lid provides basic closure, but screws and locks improve enclosure integrity and safety.

Q: Where can I mount the junction box, and what mounting options are provided?

A: This junction box is designed for surface or wall mounting. Its standard square shape and included accessories make installation easy on a variety of surfaces, both indoors and outdoors.

Q: What benefits does the polycarbonate construction offer?

A: High-grade polycarbonate provides impact resistance, self-extinguishing properties, and exceptional durability. It ensures the enclosure remains reliable even under exposure to UV rays, temperature fluctuations, and moisture, supporting a lengthy 10-year service life.

Q: How is maintenance or rewiring managed in this junction box?

A: Maintenance and wiring are straightforward thanks to tool-free access via the snap-fit lid. The box supports quick cable changes or checks without specialized equipment, improving service efficiency and reducing downtime.

Q: What is the maximum number of cables that can be managed, and is customization available?

A: Depending on the specific size, the junction box accommodates up to eight cable entries through integrated membranes. Larger or custom sizes are available on request to support more complex or extensive installations.
