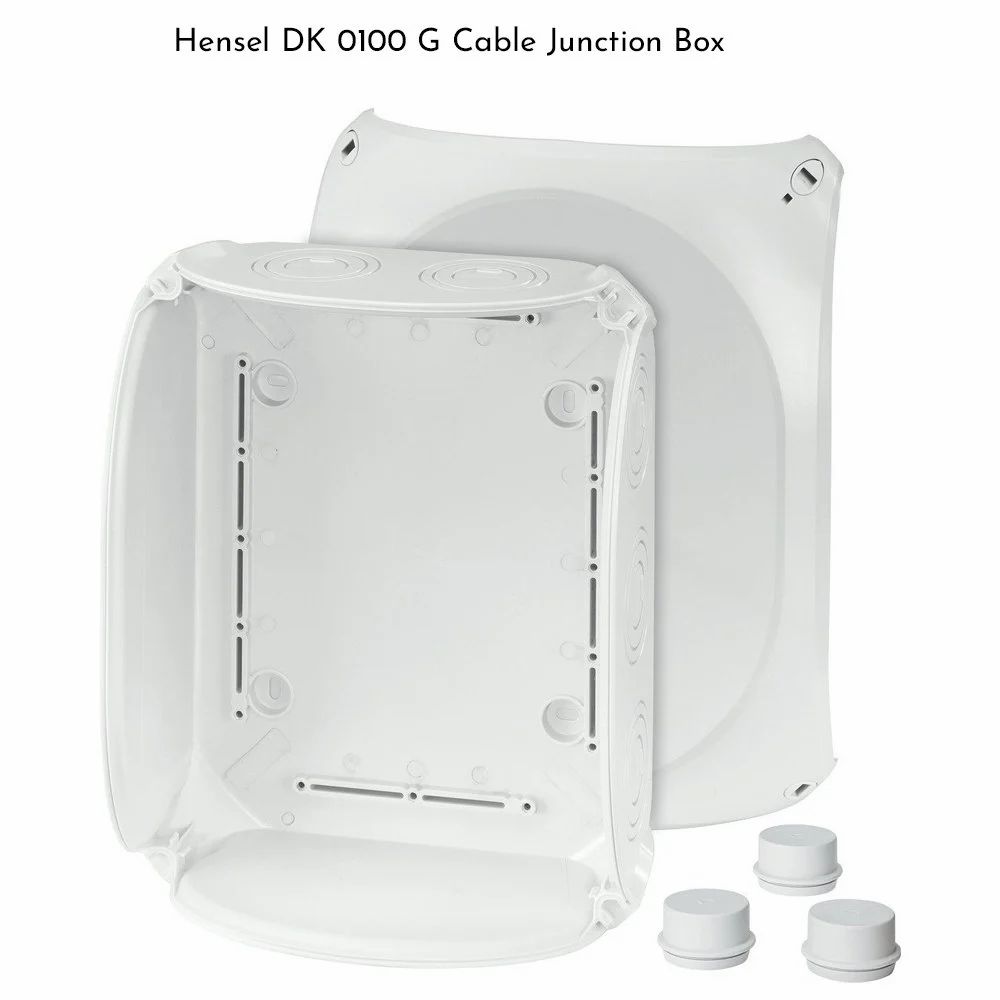

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Price 4925.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Grey) with integrated membranes Specification

Connector Type
Cable glands/membrane entries

Power Factor
N/A (Passive Part)

IP Rating
IP66

Mounting Type
Wall/Surface Mounted

Shape
Square/Rectangular

Feature
Integrated membrane for tool-free cable entry

Surface Finish
Matte, Non-conductive

Insulation Material
Polycarbonate/ABS plastic

Overheating Protection
N/A (Not an active device)

Humidity %
Up to 95% RH

Operating Temperature
-25C to +60C

Product Type
Cable Junction Box with Integrated Membranes

Application
Indoor/Outdoor Electrical Cable Junction/Distribution

Protection Level
Weatherproof, Dustproof

Frequency (MHz)
N/A (Passive Component)

Rated Voltage
Up to 400V AC

Energy Consumption
N/A (Passive Housing)

Color
Grey (RAL 7035)

Dimension (L*W*H)
85x85x40 mm, 100x100x50 mm, 150x110x70 mm, etc.

Weight
5 Kilograms (kg)

Phase
PHASE 3

Size
Multiple sizes available

Material
High-impact ABS/Polycarbonate

Connection Type
Cable entry with integrated membrane

No Of Poles
N/A (Suitable for multi-cable entry)

Sealing Type
Membrane entry, no additional tools required

Gasket
Seamless integrated gasket for superior sealing

Impact Resistance
IK08

Installation Accessories
Supplied with mounting brackets (optional)

Flame Retardant Rating
UL94 V-2

Halogen Free
Yes

Cable Entry Ports
Up to 10 (size variant dependent)

Standards Complied
IEC 60670, CE Certified

Lid Fixing
Stainless Steel Screws (corrosion-resistant)

UV Resistance
Yes (suitable for outdoor use)

Cable Junction Boxes IP 66 (Grey) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Grey) with integrated membranes

Material	Polycarbonate
Shape	Square
Size	205X255X112
Ingress Protection	IP66
Mounting Type	Wall Mount
Cover Type	Screwed
With Terminal Block	No
Color	White
Availability	In Stock

Superior Environmental Protection

Engineered for durability, these IP66-rated junction boxes shield electrical connections from dust, water, and UV rays. The seamless gasket and stainless steel fixings ensure a weatherproof and dustproof enclosure-ideal for outdoor or high-humidity applications. Certified to IEC 60670 and CE standards, they're built for lasting performance.

Convenient and Flexible Installation

Enjoy hassle-free setup with integrated membrane cable entries that eliminate the need for extra tools. The included mounting brackets allow easy wall or surface installation. Multiple box sizes and up to 10 cable entry ports (size dependent) make them versatile for various cable management scenarios, supporting phase 3 electrical environments.

Flame Retardant and Halogen Free

Safety is paramount-the enclosure is molded from halogen-free ABS or Polycarbonate, providing low-toxicity in case of fire. With a flame-retardant rating of UL94 V-2, these boxes offer an extra layer of safety for critical electrical distribution points.

FAQ's of Cable Junction Boxes IP 66 (Grey) with integrated membranes:

Q: How are cables inserted into the IP66 junction box?

A: Cables are inserted through the integrated membrane cable entry ports, allowing for tool-free installation. The membrane ensures a secure seal around each cable for superior ingress protection.

Q: What environments are these junction boxes suitable for?

A: These junction boxes are designed for both indoor and outdoor use. They provide excellent weatherproof and dustproof protection, withstand temperatures ranging from -25C to +60C, and resist UV damage for reliable outdoor installation.

Q: What benefits does the flame-retardant and halogen-free construction offer?

A: The flame-retardant rating (UL94 V-2) ensures higher safety in electrical installations, reducing the risk of fire propagation. The halogen-free material minimizes toxic emissions during a fire, making it suitable for sensitive and public installations.

Q: When should I use a junction box with IP66 rating?

A: You should select an IP66 junction box when you require robust protection against dust, water, and environmental hazards. It is ideal for exposed outdoor applications or demanding industrial indoor settings.

Q: What sizes and cable entry options are available?

A: The boxes are offered in multiple sizes, such as 85x85x40 mm, 100x100x50 mm, and 150x110x70 mm, with the number of cable entry ports (up to 10) varying by size. This flexibility makes them suitable for a range of cable management needs.

Q: Where can these junction boxes be mounted?

A: They are suitable for wall or surface mounting and come with optional mounting brackets for convenience. The matte, non-conductive finish also enhances safety and aesthetics in various installation locations.
