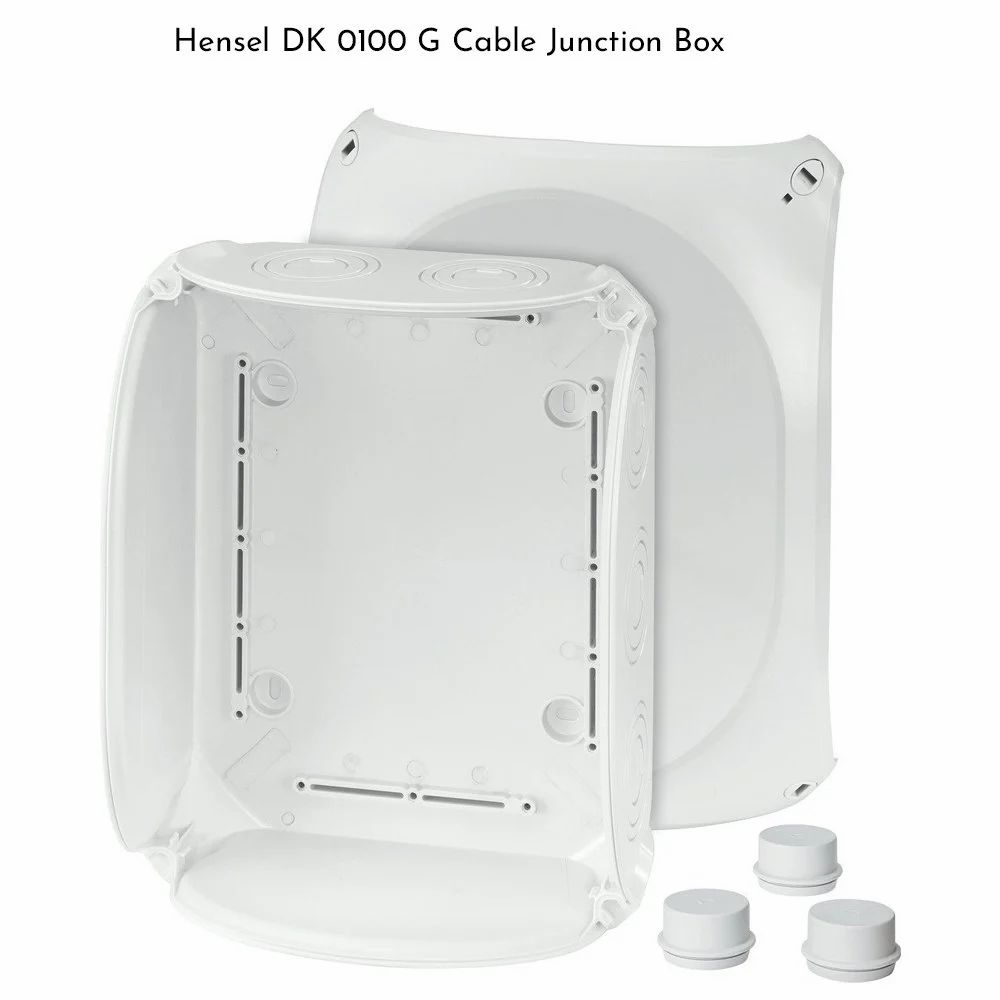

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Name: Cable Junction Boxes IP 66 (Grey) with integrated membranes
Brand: Emson Power Engineers
Price: 16695.0 INR
Availability: InStock

Price 16695.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Grey) with integrated membranes Specification

Feature
Integrated elastic membranes for easy cable entry, watertight construction, UV resistant

Insulation Material
Polycarbonate (PC)

Humidity %
Up to 95% RH (non-condensing)

Connector Type
Cable gland (via membrane) or screw terminal

Mounting Type
Wall-mount or Surface-mount

Shape
Rectangular

Surface Finish
Matte, anti-UV coated

Efficiency
Passive, >99% insulation efficiency

Operating Temperature
-25C to +60C

Overheating Protection
No active elements, material resistant to heat

IP Rating
IP66

Product Type
Cable Junction Box with Integrated Membranes

Application
Electrical cable management and connection in industrial, outdoor, and commercial environments

Protection Level
IP 66

Frequency (MHz)
50/60 Hz

Rated Voltage
up to 450V AC

Energy Consumption
Passive device (no direct consumption)

Output Type
Terminal block or cable exit depending on installation

Color
Grey (RAL 7035)

Dimension (L*W*H)
110 mm x 110 mm x 60 mm

Weight
5 Kilograms (kg)

Size
Standard: 110 x 110 x 60 mm (other variants available)

Phase
PHASE 3

Input Voltage
up to 450V AC

Material
High-impact Resistant Polycarbonate (PC)

Connection Type
Screwless and/or screw terminal, with integrated cable membrane entries

No Of Poles
Multi-pole (suitable for multiple cable entries)

Standards Compliance
IEC 60670, RoHS compliant

Membrane Entry Diameter
8 x 20 mm (flexible for 8-16 mm cables)

Number of Cable Entries
8 integrated membrane entries

Cable Retention
Elastomer-integrated membrane for secure hold

Sealing Type
One-piece seal integrated in lid

Halogen Free
Yes

Lid Fixing
Screw-on polyamide

Resistance to Chemicals
Good - suitable for most industrial environments

Closure
Quarter-turn screws

Flammability Rating
UL94 V-2

Impact Resistance
IK08

Cable Junction Boxes IP 66 (Grey) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Grey) with integrated membranes

Material	Polycarbonate
Shape	Square
Size	225X295X122
Ingress Protection	IP66
Mounting Type	Wall Mount
Cover Type	Screwed
With Terminal Block	No
Color	White
Availability	In Stock

Superior Protection for Critical Connections

Engineered to provide IP66-level protection, these cable junction boxes safeguard sensitive connections against dust, heavy jets of water, and various industrial chemicals. Their impact-resistant polycarbonate body ensures longevity in challenging settings, while the integrated sealing membranes eliminate the need for additional cable glands, streamlining installation.

Flexible and Secure Cable Entry

The integrated elastomer membranes support up to eight cable entries, flexibly accepting cable diameters from 8 to 16 mm. This design ensures each connection is securely held and protected from moisture, even under high humidity. Screwless and screw terminal options permit fast and reliable wire connections, reducing both setup time and maintenance.

Ready for Industrial and Outdoor Demands

Compliant with IEC 60670 and RoHS standards, the junction box is UV resistant, halogen-free, and suitable for wide-ranging climate conditions from -25C to +60C. Its screw-on lid with a one-piece seal prevents ingress and ensures electrical safety, making it ideal for industrial distributors, manufacturers, and service providers in India.

FAQ's of Cable Junction Boxes IP 66 (Grey) with integrated membranes:

Q: How do I install cables into the IP66 cable junction box with integrated membranes?

A: To install, pierce the integrated membrane entry with the cable, then insert the cable through the opening. The elastomer membrane will create a tight seal around the cable, ensuring a watertight fit for diameters ranging from 8 to 16 mm. Secure the lid with the provided quarter-turn screws to complete the installation.

Q: What types of environments are suitable for using this junction box?

A: This junction box is designed for industrial, commercial, and outdoor environments where high protection against dust, water, impact, and UV exposure is essential. It's ideal for applications demanding robust cable management, such as factories, building exteriors, and harsh weather conditions.

Q: When should I use a IP66-rated cable junction box for my projects?

A: Use an IP66-rated box when you need to safeguard electrical and cable connections from dust, strong water jets, or extreme humidity (up to 95% RH), such as in outdoor installations, industrial plants, or areas exposed to regular cleaning or moisture.

Q: What are the benefits of the integrated membrane cable entries?

A: Integrated membrane entries simplify installation by eliminating the need for separate cable glands. They ensure a secure, watertight hold on a variety of cable sizes, improve installation speed, and help maintain the enclosure's IP66 rating.

Q: Where can I mount the enclosure for optimal performance?

A: The box is suitable for both wall and surface mounting. Ensure that the enclosure is securely fixed and not subject to excessive mechanical force, and always mount it in environments within the recommended temperature and humidity range for optimal durability and protection.

Q: How does the junction box provide chemical resistance?

A: The high-impact polycarbonate construction, paired with the integrated seal and halogen-free composition, offers good resistance to most industrial chemicals, making the enclosure suitable for challenging chemical-rich settings found in many industrial applications.

Q: What process should I follow to ensure compliance with safety standards?

A: Always use the enclosure according to IEC 60670 and RoHS guidelines-ensure proper gland or membrane use, verify cable sizes, confirm all seals are intact, and secure all connections using screwless or screw terminals as specified by the installation manual.
