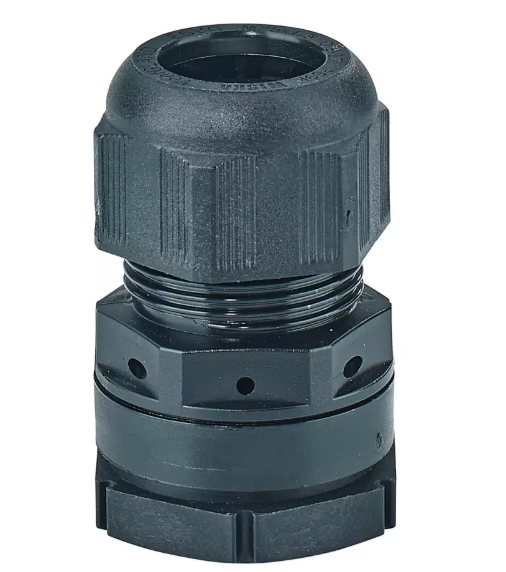

Combination Ventilation Glands (Black)

Name: Combination Ventilation Glands (Black)
Brand: Emson Power Engineers
Price: 1805.0 INR
Availability: InStock

Price 1805.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Combination Ventilation Glands (Black) Specification

Humidity %
5% to 95% RH

Overheating Protection
YES

Shape
Round

Feature
Combination cable entry and venting, Easy Installation

Surface Finish
Matte

Insulation Material
Polyamide

Connector Type
Screw/Clamp

IP Rating
IP66/IP67

Mounting Type
Panel Mount

Efficiency
High Ventilation Efficiency

Operating Temperature
-40C to +100C

Product Type
Combination Ventilation Gland

Application
Enclosure Ventilation, Cable Entry, Electrical Cabinets

Protection Level
Waterproof, Dustproof

Frequency (MHz)
50-60

Rated Voltage
250V

Output Type
Ventilation & Cabling

Color
Black

Dimension (L*W*H)
25 mm x 30 mm x 50 mm

Weight
2 Kilograms (kg)

Phase
PHASE 3

Size
PG 9 / PG 11 / PG 13.5 / PG 16 (Available)

No Of Poles
Single

Material
Polyamide (Nylon)

Connection Type
Threaded

Standard Packing
50 pcs per box

UV Resistance
High

Ingress Protection Technology
Membrane Vent

Air Permeability Rate
1200 ml/min (Typical)

Resistance to Chemicals
Good

Humidity Control
Integral membrane for condensation control

Sealing Ring Material
EPDM Rubber

Flammability
UL94-V2

RoHS Compliance
Yes

Thread Type
Metric / PG

Halogen Free
Yes

Combination Ventilation Glands (Black) Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Combination Ventilation Glands (Black)

Kombi-Belftungsstutzen mit Zugentlastung und Gegenmutter, zur Reduzierung von Kondenswasser. Glhdrahtprfung IEC 60695-2-11 960 C. Fr Umgebungstemperatur maximal + 70 C und minimal - 25 C, bei relativer Luftfeuchte 50% bei 40 C oder 100% bei 25 C. Schutzart nach IEC 60529 IP 66 / IP 67, Werkstoff: PA-Polyamid, schwer entflammbar, selbstverlschend, halogen- und silikonfrei, Farbe: schwarz, RAL 9005, Fabrikat: HENSEL, Typ: KBS

Superior Protection for Electrical Installations

The combination ventilation glands offer waterproof and dustproof protection with advanced membrane venting technology. This ensures optimal environmental control in electrical cabinets, enclosures, and cable entry systems, making these glands suitable for a wide range of industrial and commercial applications.

Easy Integration and Versatile Sizing

Available in multiple thread sizes (PG 9/11/13.5/16) and a round, compact profile, these glands are designed for quick, secure panel mounting. The screw/clamp connectors, matte finish, and standard 2 kg box packing simplify distribution, installation, and maintenance processes.

FAQ's of Combination Ventilation Glands (Black):

Q: How does the integral membrane in the ventilation gland help with condensation control?

A: The built-in membrane allows air to flow while blocking water and dust, preventing condensation buildup inside enclosures. This maintains optimal humidity levels (5% to 95% RH) and helps extend the lifespan of internal components by reducing moisture-related damage.

Q: What are the main benefits of using these combination ventilation glands in electrical cabinets?

A: These glands offer dual functionality-secure cable entry and efficient ventilation. Their membrane vent technology ensures IP66/IP67-rated protection against water and dust, while the EPDM sealing ring and halogen-free nylon body guarantee durability, chemical resistance, and safe flammability performance.

Q: Where can I use these ventilation glands?

A: They are ideal for electrical enclosures, cabinets, and panels in industrial, commercial, and outdoor environments. Their high UV resistance and waterproof design make them suitable for demanding conditions across various sites in India.

Q: What is the installation process for these glands?

A: The glands use a threaded, panel-mount design with screw or clamp connectors for simple and fast installation. Just select the appropriate size (PG9, PG11, PG13.5, or PG16), mount it into the panel, and ensure the sealing ring is positioned for maximum ingress protection.

Q: When should I consider using glands with halogen-free and flame-retardant materials?

A: Choose these glands whenever fire safety and low-toxicity requirements are paramount, such as in public infrastructure or high-occupancy buildings. The UL94-V2 flame-retardant, halogen-free nylon minimizes harmful emissions during fire incidents, ensuring regulatory compliance and occupant safety.

Q: What level of ingress protection do these glands provide?

A: With an IP66/IP67 rating, these glands are thoroughly sealed against dust ingress and protect against powerful water jets and temporary immersion, making them highly reliable for both indoor and outdoor enclosure applications.
