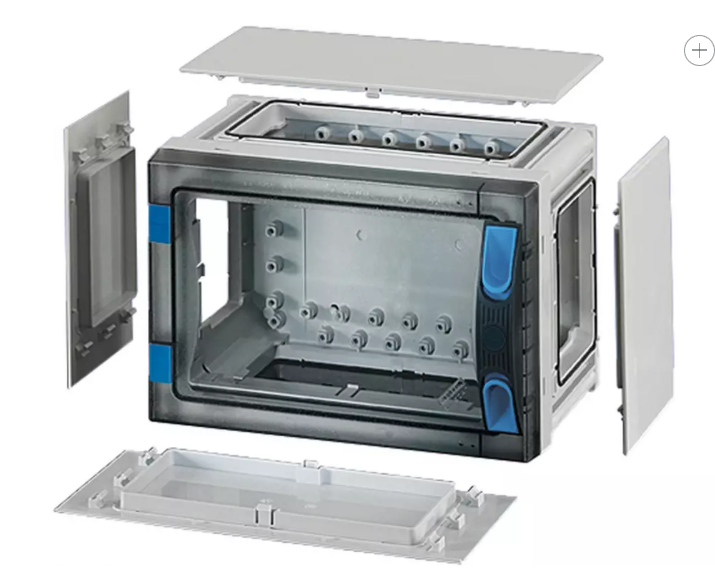

Enystar Circuit Breaker Boxes

Name: Enystar Circuit Breaker Boxes
Brand: Emson Power Engineers
Price: 46355.0 INR
Availability: InStock

Price 46355.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Enystar Circuit Breaker Boxes Specification

Operating Temperature
-25C to +65C

Mounting Type
Wall Mounted/Surface Mounted

IP Rating
IP65 (Weather & Dust Proof)

Insulation Material
High Grade Plastic, Fiberglass Reinforced

Feature
Weatherproof, Flame Retardant, Easy Installation

Overheating Protection
YES

Connector Type
Screw Terminal / Cable Lug

Shape
Rectangular

Surface Finish
Glossy Powder Coated

Humidity %
0 - 95% RH (Non-condensing)

Efficiency
99%

Product Type
Circuit Breaker Box

Application
Industrial, Commercial, Domestic circuitry distribution

Protection Level
High, Short Circuit, Overload

Frequency (MHz)
50/60 Hz

Rated Voltage
230/400 V AC

Energy Consumption
Negligible/Self-powered

Output Type
Modular Breaker Output

Color
Grey/White

Dimension (L*W*H)
380 x 250 x 120 mm

Weight
4 Kilograms (kg)

Phase
PHASE 3

Input Voltage
230/400 V AC

Size
Standard Compact

Material
Polycarbonate (PC), ABS Plastic, Steel Base

Connection Type
DIN Rail Mountable, Screw Connection

No Of Poles
Single/Double/Triple

Knockouts
Pre-marked for Cable Entry

Door Type
Hinged Transparent or Opaque

Fire Resistance
V0 flammability grade

Max Rated Current
Up to 125A

Standards Compliance
IEC 61439, IS 8623

Neutral/ Earth Busbar
Provided

UV Stability
UV Resistant for Outdoor Use

Cover
Lockable for Added Safety

Enystar Circuit Breaker Boxes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Enystar Circuit Breaker Boxes

Combinable enclosure system with door for the assembly of distribution boards up to 250 A to be opperated by ordinary persons (DBO) in accordance with IEC 61439-3 for surface-mounting. Enclosures are suitable for the outdoor installation - harsh environment and / or outdoor, however the climatic influences and effects on the equipment are to be considered. Bottom parts and doors are made from impact-resistant polycarbonate, halogen- and silicone-free, colour RAL 7035. All enclosures with doors, which are lockable and sealable. Operation of device behind the doors. Burning behavior in accordance with IEC 60695-2-11 Glow wire test + 960 C. Protective measure: protective insulation (protection class II). Make: Hensel ENYSTAR.

Superior Protection and Safety

Engineered with V0-grade fire-resistant materials and a lockable cover, Enystar Circuit Breaker Boxes provide reliable protection against electrical hazards and unauthorized access. The IP65 rating ensures resistance to dust and water, making them ideal for harsh environments where safety and durability are paramount.

Designed for Seamless Installation

Featuring pre-marked knockouts, DIN rail mountability, and a standard compact size, installation of these circuit breaker boxes is straightforward. The glossy powder-coated finish and modular output design contribute to an efficient, hassle-free setup for professionals handling industrial, commercial, or domestic projects.

Engineered for Longevity and Performance

Manufactured using UV-stable polycarbonate, high-grade plastics, and a steel base, these boxes guarantee resilience against environmental stress. The range provides high protection levels against short circuits, overloads, and overheating, maintaining optimal efficiency in ambient conditions from -25C to 65C.

FAQ's of Enystar Circuit Breaker Boxes:

Q: How are Enystar Circuit Breaker Boxes installed?

A: Enystar Circuit Breaker Boxes are designed for wall or surface mounting and feature DIN rail compatibility for modular breakers. Pre-marked knockouts simplify cable entry, and the standard compact size fits most installation areas.

Q: What benefits do the lockable doors and IP65 rating provide?

A: The lockable covers enhance safety by preventing unauthorized access, while the IP65-rated enclosure ensures robust resistance to dust and water, making the boxes suitable for both indoor and outdoor applications.

Q: When should I choose the opaque versus transparent door option?

A: Select the transparent door for quick visual inspections without opening the box, ideal for frequent monitoring. Opaque doors offer enhanced privacy and protection in settings where visibility of internal components is not required.

Q: Where can these circuit breaker boxes be used?

A: They are versatile for industrial, commercial, and domestic applications, supporting distribution and protection of electrical circuits in factories, offices, and homes across diverse environments.

Q: What standards compliance do these boxes offer?

A: Enystar Circuit Breaker Boxes are compliant with IEC 61439 and IS 8623, ensuring adherence to international safety and quality standards for electrical distribution systems.

Q: How do the V0 flammability grade and UV resistance improve safety and longevity?

A: The V0 flammability grade helps prevent fire propagation, while UV-resistant materials protect the enclosure from sunlight-induced degradation, ensuring reliable operation and extended lifespan outdoors.

Q: What is the process for connecting cables or breakers inside the box?

A: Cables and breakers can be securely mounted using the provided screw terminals, cable lugs, and DIN rails. The neutral and earth busbars offer safe, organized connections for efficient and streamlined wiring.
