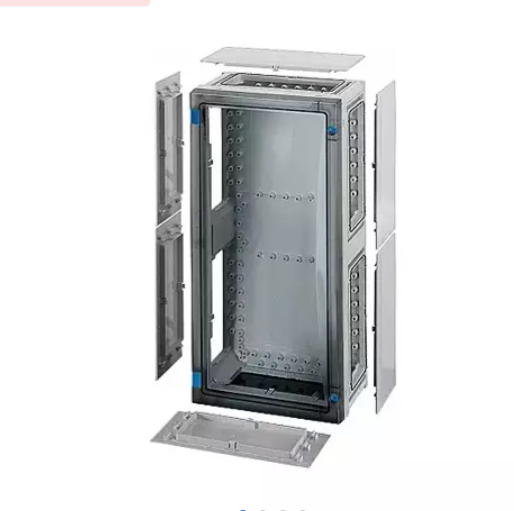

Enystar Empty Enclosures

Price 7530.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Enystar Empty Enclosures Specification

Surface Finish
Matte textured finish

IP Rating
IP66

Humidity %
Up to 95% RH, non-condensing

Operating Temperature
-25C to +40C

Connector Type
User configurable

Insulation Material
High grade flame retardant thermoplastic

Shape
Rectangular

Mounting Type
Wall & Floor Mount

Feature
Corrosion resistant, impact resistant, UV stabilized

Product Type
Empty Enclosure

Application
Industrial, Commercial, Electrical distribution

Protection Level
High impact, weatherproof durability

Frequency (MHz)
50-60 Hz

Rated Voltage
Up to 690 V

Color
Light Grey (RAL 7035)

Dimension (L*W*H)
Available from 200x300x170 mm, 300x400x170 mm, up to 800x1000x250 mm

Weight
5 Kilograms (kg)

Size
Standard and Custom sizes

Phase
PHASE 3

No Of Poles
Modular - Customizable

Connection Type
Modular, terminal-based

Material
Polycarbonate / ABS

Cover Type
Transparent or Opaque Door Option Available

UV Resistance
UV Stabilized for outdoor use

Cable Entry
Knockouts and gland plates Provided

Operating Altitude
Up to 2,000 meters above sea level

Standards Compliance
IEC 61439, IEC 62208

Locking System
Quarter Turn Lock/Key Lock

Accessories Supplied
Mounting Plate, Lock, Screws

Modular Options
Wide Range of Accessories Available

Earthing Provision
Integrated Earthing Studs Inside Enclosure

Mechanical Impact Resistance
IK08

Fire Retardant Class
UL94 V-0

Enystar Empty Enclosures Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Enystar Empty Enclosures

Combinable enclosure system with door for the assembly of distribution boards up to 250 A to be opperated by ordinary persons (DBO) in accordance with IEC 61439-3 for surface-mounting. Enclosures are suitable for the outdoor installation - harsh environment and / or outdoor, however the climatic influences and effects on the equipment are to be considered. Bottom parts and doors are made from impact-resistant polycarbonate, halogen- and silicone-free, colour RAL 7035. All enclosures with doors, which are lockable and sealable. Operation of device behind the doors. Burning behavior in accordance with IEC 60695-2-11 Glow wire test + 960 C. Protective measure: protective insulation (protection class II). Make: Hensel ENYSTAR.

Versatile and Robust Enclosure Design

The Enystar Empty Enclosure line is engineered for reliability in harsh environments, offering both transparent and opaque door options, multiple mounting styles, and sizes ranging from compact units to larger panel assemblies. Their modular, user-configurable design ensures suitability for diverse electrical distribution needs across industries.

Standards Compliance and Safety

Fully compliant with IEC 61439 and IEC 62208, these enclosures uphold industry-leading safety and performance standards. With flame retardant UL94 V-0 material and integrated earthing studs, the safety of electrical circuits is assured even in challenging conditions.

Weatherproof and UV Resistant Construction

Built with a high-impact polycarbonate/ABS blend and finished in UV-stabilized light grey, Enystar enclosures are certified IP66, ensuring dust and water ingress protection. Suitable for outdoor use, they withstand operating temperatures from -25C to +40C and up to 95% relative humidity.

FAQ's of Enystar Empty Enclosures:

Q: How do I choose between a transparent or opaque door for my Enystar Empty Enclosure?

A: Select a transparent door if frequent visual inspection of internal components is required, or opt for an opaque door when security and equipment concealment are priorities. Both versions maintain the enclosure's IP66 and high-impact protection.

Q: What mounting options are available for Enystar enclosures?

A: Enystar offers both wall and floor mounting options, facilitated by included mounting plates and hardware. This adaptability ensures the enclosure can fit varied installation requirements in industrial and commercial environments.

Q: When should I use knockouts versus gland plates for cable entry?

A: Knockouts provide quick cable access and are ideal for standardized cable sizes, while gland plates offer customizable and sealed cable entry, advantageous for maintaining IP66 protection in high-density or specialized cabling applications.

Q: Where can Enystar enclosures be installed for optimal performance?

A: These enclosures are designed for indoor and outdoor use in industrial, commercial, and electrical distribution settings. Their UV, corrosion, and weather resistance make them suitable for harsh environments, including exposed outdoor locations.

Q: What is the process for configuring Enystar enclosures with modular accessories?

A: Begin by selecting the preferred enclosure size and door type. From there, modular accessories such as additional locks, mounting plates, or terminal blocks can be integrated, creating a tailored solution that meets specific electrical control needs.

Q: How does the enclosure's protection rating benefit end users?

A: With IP66 and IK08 ratings, the enclosure safeguards internal components against dust, water, and mechanical impact, ensuring reliable operation and longevity in demanding conditions, reducing maintenance and downtime.
