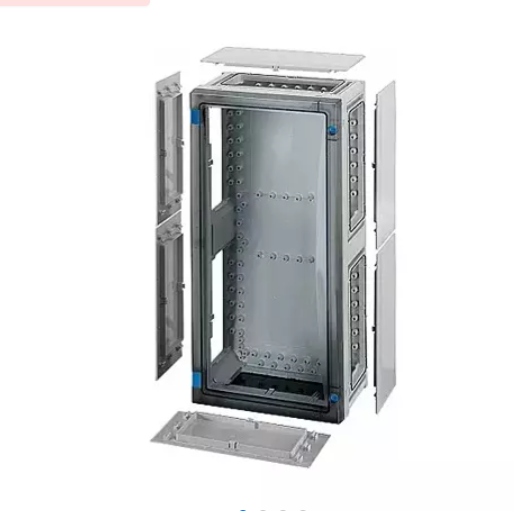

Enystar Empty Enclosures

Name: Enystar Empty Enclosures
Brand: Emson Power Engineers
Price: 9645.0 INR
Availability: InStock

Price 9645.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Enystar Empty Enclosures Specification

Insulation Material
Polycarbonate, ABS, or Glass-Fiber Reinforced Polyester

Shape
Rectangular / Square

Overheating Protection
Depends on installed equipment

Operating Temperature
-40C to +80C

Connector Type
Not pre-fitted (customizable during assembly)

Feature
Halogen-free, High Impact Resistance, Chemical Resistant, UV Stabilized

Mounting Type
Wall Mounting / Surface Mounting / Floor-standing (with accessories)

Surface Finish
Smooth/Matte

IP Rating
IP66 / IP65 (as per model)

Humidity %
Up to 95% non-condensing

Product Type
Empty Electrical Enclosure

Application
Electrical Panel Housing, Industrial Automation, Control Panels, Distribution Boards

Protection Level
High degree of mechanical protection

Frequency (MHz)
Not applicable (enclosure only)

Rated Voltage
Up to 1000V AC/DC (depending on application)

Color
Light Grey (RAL 7035)

Dimension (L*W*H)
Available in multiple standard sizes, e.g. 200x300x150 mm, 300x400x200 mm etc.

Weight
5 Kilograms (kg)

Input Voltage
Not applicable (enclosure only)

Phase
PHASE 3

Size
Multiple sizes available

Material
Polycarbonate / ABS / Glass-Fiber Reinforced Polyester

No Of Poles
Not applicable (Enclosure only)

Connection Type
Screw Terminals/Customizable as per application

Flammability Rating
UL94 V0 or V2 (as per material selection)

Standards Compliance
IEC 62208, CE, RoHS

Corrosion Resistance
Excellent (For outdoor and indoor use)

Lid Locking System
Screw/Latch system; Optional padlocking available

Accessories
Mounting plate, cable glands, terminal rails, sealing gaskets available

Impact Resistance
IK08 / IK09 depending on the model

Cover Type
Opaque or Transparent (polycarbonate clear cover option available)

Cable Entry Options
Customizable knockouts provided for gland/cable entry

Service Life
Designed for >20 years under normal usage

Enystar Empty Enclosures Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Enystar Empty Enclosures

Combinable enclosure system with door for the assembly of distribution boards up to 250 A to be opperated by ordinary persons (DBO) in accordance with IEC 61439-3 for surface-mounting. Enclosures are suitable for the outdoor installation - harsh environment and / or outdoor, however the climatic influences and effects on the equipment are to be considered. Bottom parts and doors are made from impact-resistant polycarbonate, halogen- and silicone-free, colour RAL 7035. All enclosures with doors, which are lockable and sealable. Operation of device behind the doors. Burning behavior in accordance with IEC 60695-2-11 Glow wire test + 960 C. Protective measure: protective insulation (protection class II). Make: Hensel ENYSTAR.

Versatile Construction and High Protection

Enystar Empty Enclosures are crafted from durable polycarbonate, ABS, or glass-fiber reinforced polyester, providing exceptional mechanical protection even in demanding environments. Their IP66/IP65 rating ensures reliable defense against water and dust ingress. The robust design, coupled with UV stabilization and excellent chemical resistance, makes these enclosures suitable for both outdoor and indoor installation, helping prolong your equipment's service life.

Flexible Customization for Every Application

With various dimensions, cover types (opaque or transparent), and options for wall, surface, or floor mounting, Enystar enclosures adapt seamlessly to your specific project requirements. The screw/latch lid locking systems and customizable knockouts allow for straightforward and secure cable entry. Accessories like mounting plates, terminal rails, and cable glands support quick, tailored installation, ensuring a smooth integration into electrical, industrial, and automation applications.

FAQ's of Enystar Empty Enclosures:

Q: How can I select the right cover type for my Enystar Empty Enclosure?

A: Enystar enclosures offer both opaque and transparent (polycarbonate clear) covers. Transparent covers are ideal when visual inspection of internal components is necessary, while opaque covers provide extra privacy and protection. Consider your application's monitoring and security needs when choosing.

Q: What makes Enystar enclosures suitable for outdoor use?

A: These enclosures are made from materials with excellent corrosion resistance, are UV stabilized, and meet IP66/IP65 ingress protection standards. This means they are highly resistant to water, dust, and harsh weather conditions, making them reliable for both indoor and outdoor settings.

Q: How do I install cables and glands into the Enystar enclosure?

A: Enystar enclosures include customizable knockouts that allow for easy cable and gland entry. Simply remove the knockouts in the required locations for your specific installation. Compatible cable glands and sealing gaskets are also available as accessories for a secure, watertight fit.

Q: What locking systems are available for securing the enclosure lid?

A: You can choose between screw or latch lid locking systems based on your security and access preferences. Additionally, certain models offer optional padlocking for enhanced protection against unauthorized access.

Q: Which standards do Enystar empty enclosures comply with?

A: These enclosures comply with IEC 62208, CE, and RoHS standards, ensuring reliable electrical safety, environmental compliance, and suitability for a wide range of industrial and automation controls.

Q: What is the service life and material durability of Enystar enclosures?

A: Designed for over 20 years of normal operation, the enclosures offer high impact resistance (IK08/IK09), excellent chemical resistance, and halogen-free composition, helping them withstand demanding industrial conditions over time.

Q: In what applications can I use Enystar empty enclosures?

A: These enclosures are ideal for housing electrical panels, industrial automation components, control panels, and distribution boards. Their robust build and protection levels ensure safe and lasting operation across a wide spectrum of electrical and automation projects.
