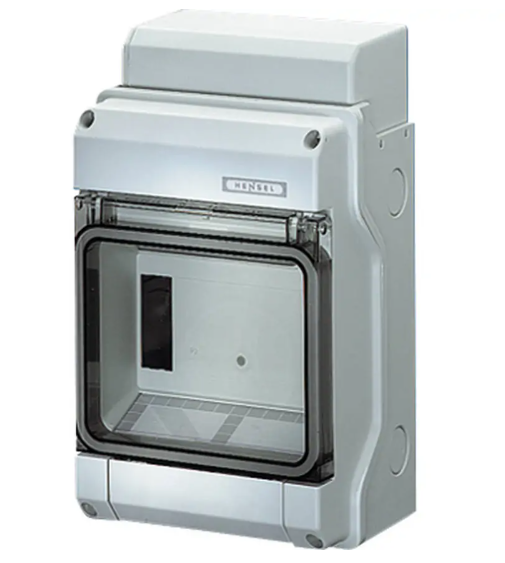

KV PC Small - type Distribution Boards IP 65

Name: KV PC Small - type Distribution Boards IP 65
Brand: Emson Power Engineers
Price: 3690.0 INR
Availability: InStock

Price 3690.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

KV PC Small - type Distribution Boards IP 65 Specification

Efficiency
>98% for insulation

Humidity %
up to 95% non-condensing

IP Rating
IP65

Overheating Protection
Yes, Heat Resistant PC Material

Shape
Rectangular

Mounting Type
Surface mount / Wall Mounted

Surface Finish
Smooth, Glossy

Power Factor
N/A (Passive equipment)

Connector Type
Screw Type / Din Rail Compatible

Insulation Material
Polycarbonate

Operating Temperature
-25C to +80C

Feature
IP65, High Impact Resistant, UV Stabilized, Sealable Cover

Product Type
Small Type Distribution Board

Application
Industrial, Commercial, Residential Electrical Distribution

Protection Level
Completely Waterproof, IP65 Rated

Frequency (MHz)
50/60 Hz

Rated Voltage
230V / 415V

Energy Consumption
Low (Passive device)

Output Type
Modular MCB/MCB + RCCB Cutout Compatible

Color
Light Grey

Dimension (L*W*H)
215 x 180 x 100 mm

Weight
5 Kilograms (kg)

Phase
PHASE 3

Size
126X228X111

Input Voltage
230V/415V AC

Material
Polycarbonate (PC)

Connection Type
Din Rail / Terminal Block

No Of Poles
Single/Double/Three Pole options

UV Resistance
Yes, Prevents Yellowing

Flammability Rating
UL94 V-2

Impact Resistance
IK08

RoHS Compliant
Yes

Gasket Material
Polyurethane

Ingress Protection
Dust Tight & Water Jet Proof

Door Lock Type
Plastic Snap Lock

Cable Entry Options
Multiple Pre-Punched Knockouts (Top/Bottom/Side)

Transparent Window
Yes, for Visible MCB State

KV PC Small - type Distribution Boards IP 65 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About KV PC Small - type Distribution Boards IP 65

4.5 modules: 1 x 4.5 x 18 mm
without PE and N terminal
1-row
box walls without knockouts
order PE/N terminals separately
for indoor (normal environment and/or protected outdoor) and outdoor installation (harsh environment and/or outdoor)
for the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
with transparent lid, sealable
locking device for hinged lid and sealing facility see accessories
with cable entry cover
protective cover can be cut out
degree of protection: IP 65
colour: grey, RAL 7035

Ultimate Protection for Electrical Installations

Experience unparalleled safety and reliability with our IP65 distribution boards. With advanced ingress protection, dust and water jet exposure are non-issues, making these units perfect for even the most demanding environments. The robust polycarbonate construction, reinforced with a polyurethane gasket, ensures your electrical components remain safeguarded against impact, UV rays, and chemical attacks. Seamlessly suited for any installation-industrial, commercial, or residential.

Clear Monitoring and Easy Access

Monitor your power status without opening the enclosure thanks to the transparent window, offering immediate visibility of the MCB state. The intuitive plastic snap lock supports quick yet secure door operation, minimizing downtime and improving user convenience. Multiple mounting and cable entry options simplify installation, backed by an easy-to-clean, smooth glossy finish for professional aesthetics.

FAQ's of KV PC Small - type Distribution Boards IP 65:

Q: How does the IP65 rating benefit the usage of KV PC Small Distribution Boards?

A: The IP65 rating signifies that the distribution board is completely protected against dust ingress and water jets, ensuring safe operation and protection for internal electrical components in both indoor and outdoor environments.

Q: What makes the transparent window feature useful in daily operations?

A: The transparent window lets users visually inspect the MCB state without unlocking or opening the door, enabling quick troubleshooting and monitoring, thus reducing maintenance time and increasing operational efficiency.

Q: Where can these distribution boards be installed?

A: These boards are versatile for industrial, commercial, and residential installations, thanks to their robust build, waterproofing, and impact resistance. They are suitable for mounting on surfaces or walls in various settings, including factories, offices, and homes.

Q: What installation options are available for cable entry and mounting?

A: The distribution boards come with multiple pre-punched knockouts on the top, bottom, and sides, offering flexible routing for cables. They support both DIN rail and terminal block connections and can be easily surface or wall mounted.

Q: What benefits does the use of polycarbonate material provide?

A: Polycarbonate construction ensures high impact resistance (IK08), UV stability to prevent yellowing, and superior insulation (>98% efficiency), offering long-term reliability and safety in harsh operating conditions.

Q: How does the distribution board ensure safety against electrical hazards?

A: Equipped with a flammability rating of UL94 V-2, the board provides flame-resistant protection. The secure snap lock, heat-resistant materials, and complete sealing with polyurethane gasket help prevent overheating and environmental ingress, enhancing overall electrical safety.
