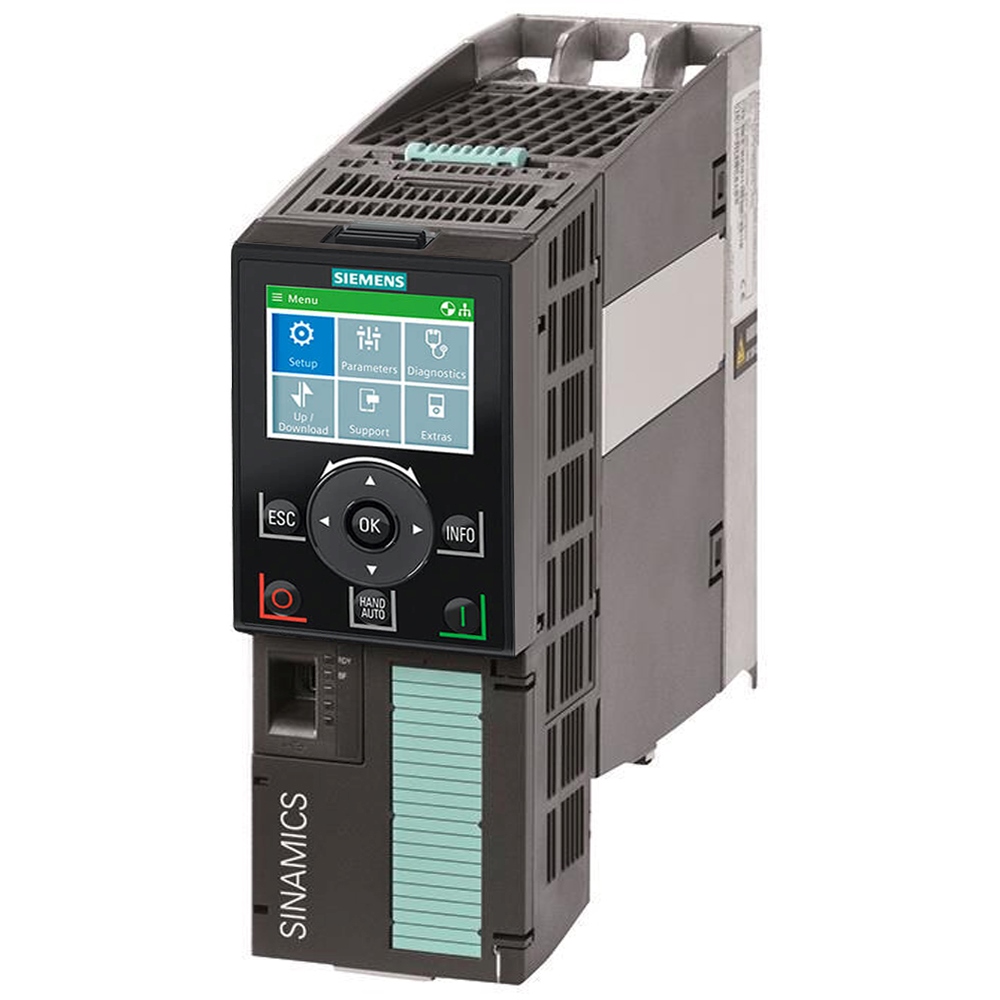

SIEMENS G120-PM240 DRIVE

Name: SIEMENS G120-PM240 DRIVE
Brand: Emson Power Engineers
Price: 88105.0 INR
Availability: InStock

Price 88105.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

SIEMENS G120-PM240 DRIVE Specification

Power Factor
>0.95

Humidity %
595% (non-condensing)

Connector Type
Pluggable Terminal

Overheating Protection
YES

Operating Temperature
-10C to +50C

Shape
Rectangular

Insulation Material
Thermoplastic

Surface Finish
Matte

IP Rating
IP20

Efficiency
>95%

Mounting Type
Wall Mounted

Feature
Modular Design, Integrated Brake Chopper, Safety Functions, Communication Options

Product Type
Variable Frequency Drive

Application
Industrial Automation, Pumps, Fans, Conveyors, Compressors

Protection Level
Overload, Short Circuit, Ground Fault

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
Energy Efficient Operation

Output Type
Three Phase Motor Output

Color
Grey

Dimension (L*W*H)
220 x 140 x 195 mm

Weight
4.5 kg

Warranty
1 YEAR

Input Voltage
380-480 V AC

Phase
Three Phase

Size
FS A/B (Frame Size)

Material
Plastic, Metal

No Of Poles
3

Connection Type
Screw Terminal

Analog Inputs/Outputs
2 AI, 1 AO (typical)

Braking Unit
Integrated Brake Chopper

Control Method
V/F Control, Vector Control

Digital Inputs/Outputs
6 DI, 2 DO (typical)

Relative Air Humidity
<95% (non-condensing)

Cooling Method
Internal Fan Cooling

Communications
PROFINET, PROFIBUS, CANopen (optional)

Motor Power Range
0.37250 kW (depending on model)

Storage Temperature
-40C to +70C

EMC Filter
Integrated (depending on version)

Display
Optional Operating Panel/Basic Operator Panel (BOP-2)

Standards Compliance
EN 61800-5-1, EN 61800-3

Noise Level
<65 dB(A) (depending on load)

SIEMENS G120-PM240 DRIVE Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
4 Week

About SIEMENS G120-PM240 DRIVE

Brand	Siemens
Model Name/Number	6SL3210-1KE13-2AB2
Motor Power	1.1kW
Input Voltage	480V
Input Phase	3 Phase
Input Frequency	63Hz
Rated Power	1.1kW
IP Rating	IP20
Dimension	Fsaa 173 x 73 x 155 mm
External Voltage	24V
Availability	In Stock

Sinamics G120C Rated Power 1,1kW With 150% Overload For 3 Sec 3AC380-480V +10/-20% 47-63Hz Integrated Filter Class A I/o-interface: 6di, 2do,1ai,1ao Safe Torque Off Integrated Fieldbus: USS/ Modbus Rtu Protection: IP20/ Ul Open Type Size: Fsaa 173x73x155(Hxwxd) External 24V

Versatile Motor Control & Applications

The G120-PM240 drive offers precision speed and torque regulation for three-phase motors, supporting both V/F and vector control. This makes it suitable for a range of industrial applications, such as pumps, fans, conveyors, and compressors. Its adaptability enables energy-efficient operation while catering to complex automation requirements.

Integrated Safety & Protective Features

Equipped with robust overload, short circuit, and ground fault protections, the SIEMENS G120-PM240 drive ensures operational safety. The integrated EMC filter and brake chopper further maintain system reliability and performance, while advanced safety functions adhere to international standards for industrial environments.

Flexible Communication & Easy Installation

Supporting PROFINET, PROFIBUS, and optional CANopen interfaces, the G120-PM240 drive allows seamless integration into modern automation infrastructures. The modular, wall-mounted design, pluggable terminals, and optional operator panels enable straightforward installation and user-friendly operation, simplifying both commissioning and maintenance.

FAQ's of SIEMENS G120-PM240 DRIVE:

Q: How does the SIEMENS G120-PM240 drive enhance energy efficiency in industrial applications?

A: The G120-PM240 drive uses efficient V/F and vector control methods to optimize motor performance, minimizing energy consumption, especially in applications with varying load demands like pumps and fans. Its advanced control algorithms and >95% efficiency rating enable substantial energy savings.

Q: What is the process to connect and configure the drive for a new motor installation?

A: To connect the drive, mount it on a wall, use the screw or pluggable terminals for wiring, and ensure compatibility with the motor's voltage and current ratings. Configuration is performed via the optional Basic Operator Panel (BOP-2) or with PC software, allowing users to input motor parameters and select control modes.

Q: When should I use the integrated brake chopper feature?

A: The integrated brake chopper is utilized during rapid deceleration or stopping of high inertia loads, such as large fans or conveyors. It dissipates surplus regenerative energy, protecting the drive from overvoltage and ensuring smooth, safe operation.

Q: Where is the optimal environment to install the G120-PM240 drive?

A: This drive is suited for industrial locations with three-phase mains (380-480 V AC) and requires wall mounting in areas with operating temperatures between -10C and +50C. Humidity should be maintained below 95% (non-condensing) to ensure optimal performance and longevity.

Q: What are the communication options available for system integration?

A: The G120-PM240 offers standard PROFINET and PROFIBUS connectivity, with optional CANopen support. These communication interfaces facilitate integration with most industrial automation systems, enabling remote monitoring, configuration, and data exchange.

Q: How does the drive ensure safety and equipment protection during operation?

A: The drive provides comprehensive protection features such as overload, short circuit, and ground fault detection, as well as integrated overheating protection. Compliance with EN 61800-5-1 and EN 61800-3 standards ensures a high level of operational safety.
