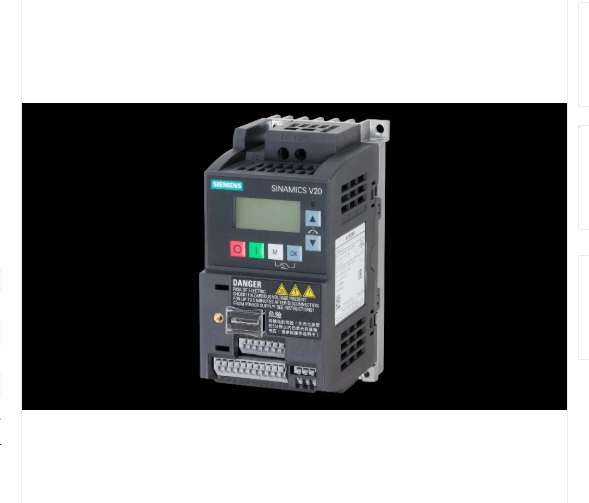

Siemens VFD 6SL3210-5BE13-7UV1 Siemens Sinamics, 0.5Hp

Send Inquiry

Request To Call Back

Siemens VFD 6SL3210-5BE13-7UV1 Siemens Sinamics, 0.5Hp

Name: Siemens VFD 6SL3210-5BE13-7UV1 Siemens Sinamics, 0.5Hp
Brand: Emson Power Engineers
Price: 18000.0 INR
Availability: InStock

Price 18000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens VFD 6SL3210-5BE13-7UV1 Siemens Sinamics, 0.5Hp Specification

Insulation Material
Plastic/Polycarbonate

Connector Type
Screw Terminal

Feature
Integrated EMC filter, Vector control

Efficiency
> 96%

Operating Temperature
-10C to +50C Celsius (oC)

IP Rating
IP20

Power Factor
> 0.95

Surface Finish
Matte

Humidity %
5% to 95% (Non-Condensing)

Shape
Rectangular

Mounting Type
Panel / Wall Mount

Product Type
AC Drive

Application
Industrial Automation

Protection Level
Overload, Short Circuit

Frequency (MHz)
50/60 Hz Hertz (HZ)

Rated Voltage
380-480 V AC Volt (V)

Output Type
PWM

Color
Gray

Dimension (L*W*H)
173 mm 100 mm 172 mm Millimeter (mm)

Weight
1.2 kg Kilograms (kg)

Input Voltage
380-480 V AC Volt (V)

Size
FSAA (Frame Size AA)

Phase
Three Phase

Connection Type
Screw Terminal

Material
Plastic, Metal

Braking Unit
Built-in

Output Current
1.3 A

Communication Interface
USS, Modbus RTU

Cooling
Forced Air

Digital Inputs
4

Control Method
V/f, Vector Control

Series
SINAMICS V20

Analog Inputs
2

Altitude
up to 1000 m without derating

Motor Power
0.37 kW (0.5 Hp)

Model Number
6SL3210-5BE13-7UV1

Relay Outputs
1

Display
LED, with keypad

Siemens VFD 6SL3210-5BE13-7UV1 Siemens Sinamics, 0.5Hp Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
4 Week

About Siemens VFD 6SL3210-5BE13-7UV1 Siemens Sinamics, 0.5Hp

Motor Power	0.5HP
Usage/Application	Industrial
Brand	Siemens
Input Phase	3 - Phase
Cooling Method	Fan
IP Rating	IP20
Model Name/Number	SINAMICS V20 Series 6SL3210-5BE13-7UV1
Input Voltage	380-480 V
Output Type	Single, Dual
Input Frequency	47 to 63 Hz
Overload Capacity	150 % rated output current for 60 s,cycle time 300 s
Degree Of Protection	IP20 / UL open type
Operating Temperature	-10 to 60 Degree C
Ul Standards	CE,cULus,C-Tick (RCM),KC
Availability	In Stock

Efficient Motor Management

The Siemens SINAMICS V20 VFD excels in reliable and energy-efficient motor control. With a power factor above 0.95 and efficiency greater than 96%, it minimizes energy costs. Its PWM output and vector control ensure smooth, precise motor operation suitable for various industrial environments.

Built for Industrial Automation

Designed specifically for Industrial Automation, this VFD supports both V/f and vector control for flexibility in demanding applications. Its robust protection features-like IP20 rating, temperature monitoring, and EMC filtering-provide consistent reliability and safety even in challenging electrical environments.

Easy Integration and Operation

With versatile mounting options (panel or wall), screw terminal connectors, and compact dimensions, installation and integration is quick and simple. The user-friendly LED display and keypad enable straightforward setup and monitoring, making operations seamless for technicians and operators alike.

FAQ's of Siemens VFD 6SL3210-5BE13-7UV1 Siemens Sinamics, 0.5Hp:

Q: How do I install the Siemens VFD 6SL3210-5BE13-7UV1 in my control panel?

A: To install the VFD, ensure a suitable panel or wall mounting location with adequate ventilation. Use the screw terminal connections for wiring, following the product manual for input and output terminals. Its compact FSAA frame and lightweight design (1.2 kg) make it easy to position and secure within standard control panels.

Q: What types of motors and applications are compatible with this drive?

A: The 6SL3210-5BE13-7UV1 is compatible with three-phase asynchronous motors rated at 0.37 kW (0.5 Hp), commonly used in industrial automation such as conveyors, pumps, and fans. It's suited for applications requiring precise speed and torque regulation with high efficiency.

Q: When should I use the built-in braking unit?

A: The integrated braking unit should be used during rapid deceleration or when controlled stopping is required. This feature provides enhanced stopping performance and helps protect the system from potential mechanical or electrical overload during frequent starts and stops.

Q: Where can I access communication settings for integrating with PLCs?

A: The VFD supports USS and Modbus RTU protocols, accessible via its communication interface. Configuration and wiring information can be found in the manual to ensure correct setup with your control system or PLC, enabling seamless data exchange and automation control.

Q: What protection and safety features does this VFD provide?

A: This model ensures safety with multiple protections: built-in overload and short circuit protection, overheat monitoring, and EMC filtering. Its IP20 rating means it is protected against solid objects and touch, suitable for clean interior installations up to 1000 meters without derating.

Q: How does the VFD contribute to energy efficiency in industrial systems?

A: With an efficiency greater than 96% and a power factor higher than 0.95, the VFD minimizes power consumption and reduces losses. The advanced motor control and integrated energy-saving features translate to cost savings and improved system performance in industrial environments.

Q: What is the recommended operating environment for this VFD?

A: Operate the drive within a temperature range of -10C to +50C and humidity between 5% and 95% (non-condensing). It can function reliably at altitudes up to 1000 meters without power reduction, making it suitable for various industrial sites across India.
