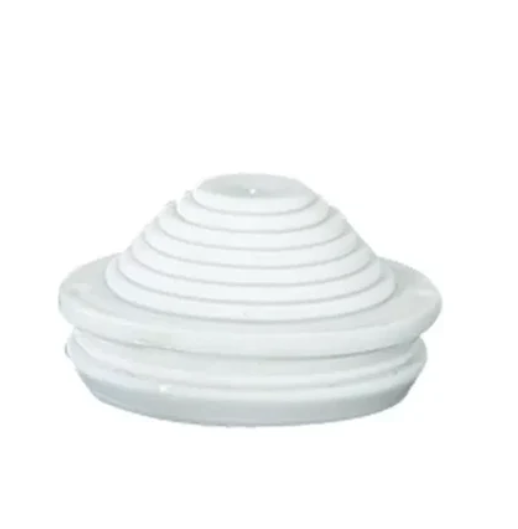

Stepped Glands IP 54

Name: Stepped Glands IP 54
Brand: Emson Power Engineers
Price: 60.0 INR
Availability: InStock

Price 60.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Stepped Glands IP 54 Specification

Feature
Multiple cable entry sizes with single gland

Surface Finish
Smooth

Operating Temperature
-20C to +70C

Overheating Protection
NO

IP Rating
IP54

Shape
Stepped/Conical

Humidity %
Up to 95% non-condensing

Insulation Material
Polyamide (Nylon 6)

Mounting Type
Panel mounted

Connector Type
Stepped, knock-out

Product Type
Stepped Cable Gland

Application
Cable termination, enclosure entry sealing

Protection Level
IP54

Color
Light grey

Dimension (L*W*H)
Varies by size - typically 35mm length

Weight
2 Kilograms (kg)

Phase
PHASE 3

Size
5-16 mm (stepped range for cable diameter)

Connection Type
Push fit

Material
Polyamide (Nylon 6) / PVC

Sealing Material
Integral flexible lip

Easy Installation
Yes, requires no special tools

Standards Compliance
RoHS Compliant, IEC 60423

Weather Resistance
Limited outdoor use

Cutout Requirement
Needs matching panel knockout

Thread Type
Unthreaded/Push-in design

Flame Retardancy
UL94 V-2

Halogen Free
Yes

Reusable
Single use

Stepped Glands IP 54 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Stepped Glands IP 54

The STM32 family of 32-bit microcontrollers based on the Arm Cortex-M processor is designed to offer new degrees of freedom to MCU users. It offers products combining very high performance, real-time capabilities, digital signal processing, low-power / low-voltage operation, and connectivity, while maintaining full integration and ease of development.

Versatile Cable Entry for Multiple Sizes

The stepped/conical design uniquely caters to varying cable diameters, within the 5-16 mm range, allowing one gland to serve multiple applications. This efficiency not only simplifies inventory but also ensures seamless adaptation to ever-changing project requirements, making it especially valuable for panel builders and installation professionals.

Engineered for Safety and Compliance

These stepped glands are manufactured from halogen-free Polyamide (Nylon 6) or PVC, supporting flame retardancy to UL94 V-2 and RoHS compliance per IEC 60423. Their smooth, non-conductive finish aids in maintaining enclosure integrity in humid or moderately challenging conditions, withstanding up to 95% non-condensing humidity and temperatures from -20C to +70C.

FAQ's of Stepped Glands IP 54:

Q: How do I install the Stepped Glands IP54, and are any special tools required?

A: Installation is straightforward; simply push the gland into a matching panel knockout. No special tools are needed, making the process quick and user-friendly even for those with minimal technical experience.

Q: What size cables can these stepped glands accommodate and how is the correct size selected?

A: These glands are designed for cable diameters ranging from 5 to 16 mm, thanks to their stepped (conical) design. The installer can trim the gland to the required step matching the cable's diameter during installation.

Q: When is it recommended to use IP54 Stepped Glands over other types of cable glands?

A: IP54 Stepped Glands are ideal when multiple cable sizes need to be managed in a single enclosure, or when limited outdoor protection (against dust and water splash) is adequate. Their application is best in control panels, distribution boxes, or light outdoor environments.

Q: Where should I ensure a proper panel knockout for these glands?

A: A precisely sized panel knockout matching the intended gland step is essential for effective sealing and proper fit. This ensures that the integral flexible lip creates a secure, weather-resistant barrier at the cable entry point.

Q: What are the compliance and safety standards met by these stepped glands?

A: Stepped Glands IP54 are RoHS compliant, conform to IEC 60423, offer flame retardancy rated UL94 V-2, are halogen free, and are designed for single-use applications to ensure long-term integrity of the cable seal.

Q: How does the integral flexible lip enhance the gland's performance?

A: The integral flexible lip on each stepped gland provides a secure, weather-resistant seal around the cable, helping maintain the IP54 rating by protecting against dust ingress and water spray.

Q: What are the key benefits of using a stepped (conical) gland design?

A: A stepped gland allows for multiple cable sizes to be sealed with one product, reducing part numbers and simplifying stock management. It enhances flexibility in applications where cable sizes may vary, while still ensuring robust enclosure entry sealing.
