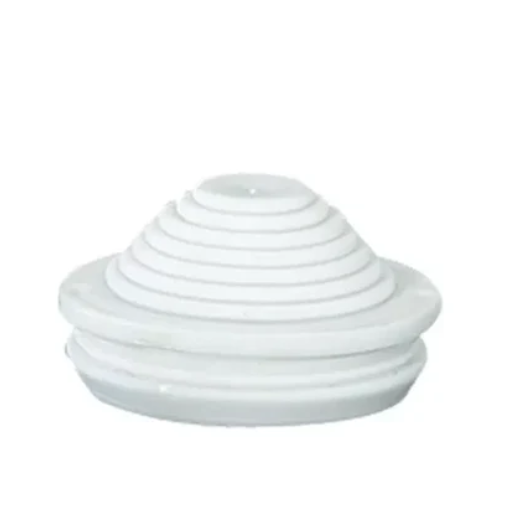

Stepped Glands IP 54

Name: Stepped Glands IP 54
Brand: Emson Power Engineers
Price: 88.0 INR
Availability: InStock

Price 88.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Stepped Glands IP 54 Specification

Operating Temperature
-20C to +100C

Feature
Easily trimmable steps for multiple fit sizes

Connector Type
Cable Gland

Humidity %
Up to 95% RH (non-condensing)

IP Rating
IP54

Surface Finish
Matte

Mounting Type
Panel Mount

Shape
Stepped cylindrical

Insulation Material
Polyamide

Product Type
Stepped Cable Gland

Application
Securing and insulating electrical cable entries in enclosures

Protection Level
Dust and splash proof

Rated Voltage
Up to 400V AC

Color
Gray

Dimension (L*W*H)
30 mm (height) x 15 mm (minimum outer diameter)

Weight
2 Kilograms (kg)

Phase
PHASE 3

Size
10-22 mm cable diameter

Connection Type
Push Fit / Compression

Material
Polyamide (Nylon 6) / Thermoplastic

Flammability Rating
UL 94 V-2

Chemical Resistance
Resistant to common oils and greases

Tensile Strength
High mechanical strength

Sealing Insert
Integrated sealing lip for dust and splash protection

Stepped Glands IP 54 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Stepped Glands IP 54

Cable entry as a stepped grommet. For ambient temperature maximum +40 C and minimum 25 C, at relative humidity 50% at 40 C or 100% at 25 C. Degree of protection according to IEC 60529: IP 55. Material: TPE, flame-retardant, halogen- and silicone-free. Color: gray, RAL 7035. Make: HENSEL. Type: STM.

Exceptional Chemical and Mechanical Performance

These stepped glands are crafted from high-grade polyamide, delivering excellent resistance to oils, greases, and various chemicals. Their tough construction ensures longevity and consistent performance, even under challenging industrial conditions. The material's inherent strength and the secure compression fitting make these glands highly reliable for both indoor and outdoor applications.

Reliable Dust and Splash Protection

With an integrated sealing lip and a robust IP54 rating, the stepped glands effectively shield sensitive electrical connections from dust and water splashes. This ensures safer operation and extends the service life of your equipment, especially in environments where cleanliness and ingress protection are essential.

Versatile Cable Accommodation and Easy Installation

Supporting a cable diameter range of 10-22 mm, these glands can be easily trimmed to suit various cable sizes thanks to their innovative stepped design. The push-fit and compression connection types, paired with a simple panel mount mechanism, allow for quick, secure, and tool-friendly installation.

FAQ's of Stepped Glands IP 54:

Q: How are Stepped Glands IP 54 installed in electrical enclosures?

A: Installation of the Stepped Glands IP 54 is straightforward. Simply select the appropriate step for your cable diameter (between 10-22 mm), trim as needed, and mount the gland on your enclosure panel. The push-fit or compression connection simplifies the process, ensuring a secure hold and fast setup.

Q: What makes these glands resistant to chemicals and suitable for industrial use?

A: These glands are manufactured from polyamide (Nylon 6), a durable thermoplastic known for its resistance to many common oils, greases, and industrial chemicals. This material choice, along with the high mechanical strength, ensures reliability in a wide range of environments.

Q: When should I use a stepped gland with IP54 protection?

A: Stepped glands with IP54 protection are particularly useful when your application requires both flexibility in cable size and reliable protection against dust and splashes. They are ideal for settings where electrical enclosures are exposed to challenging conditions but are not completely submerged.

Q: Where can these stepped glands be sourced in India?

A: These glands are available from a range of distributors, manufacturers, suppliers, service providers, and traders across India. Look for specialized electrical component suppliers or industrial automation distributors to source authentic and high-quality products.

Q: What process ensures the correct fit for different cable sizes?

A: Each gland features easily trimmable, stepped sections. To match your cable, determine the needed diameter, trim the gland to the correct step, and insert the cable, ensuring a snug and protective fit. This modular approach provides both versatility and a secure seal.

Q: How does the integrated sealing lip benefit the user?

A: The gland's integrated sealing lip enhances dust and splash protection, preventing contaminants from entering the enclosure. This extra sealing measure contributes to the gland's IP54 rating, improving equipment reliability and longevity.
