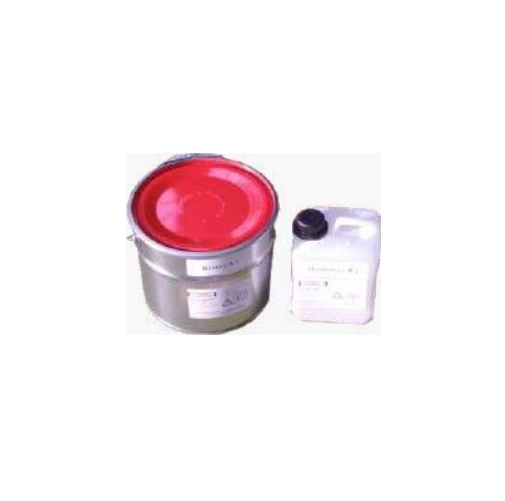

Two component gel

Name: Two component gel
Brand: Emson Power Engineers
Price: 9055.0 INR
Availability: InStock

Price 9055.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Two component gel Specification

Efficiency
Premium insulation efficiency, >95%

IP Rating
Up to IP68 when used in proper enclosure

Humidity %
Works reliably at 0-100% RH

Surface Finish
Smooth, non-sticky after curing

Insulation Material
Special polymer gel

Connector Type
Suitable for all cable connector types

Mounting Type
Cast-in/Pour-in for enclosures

Feature
Self-curing, highly transparent, flexible, re-enterable

Shape
As per enclosure/mould

Operating Temperature
-40C to +100C

Overheating Protection
Intrinsic thermal stability; gel does not overheat

Product Type
Two Component Electrical Insulation Gel

Application
Electrical cable joint and insulation, moisture protection

Protection Level
Excellent against moisture and dust

Frequency (MHz)
50/60 Hz compatible

Rated Voltage
Up to 1 kV

Output Type
Gel, self-leveling after mixing

Color
Transparent/Light Yellow

Dimension (L*W*H)
Depends on mixing container (customized on use)

Weight
2 Kilograms (kg)

Size
500 ml+500 ml components, twin pack

Input Voltage
Up to 1 kV (insulation)

Phase
PHASE 3

No Of Poles
Universal (suitable for all pole types)

Material
Polyurethane prepolymer & special catalyst

Connection Type
Cabling and joint enclosure

Thermal Conductivity
0.25 W/mK

Dielectric Strength
>23 kV/mm

Toxicity
Non-toxic, RoHS compliant

Packaging Type
Twin chambered bottle and box with instructions

Mechanical Protection
Shock and vibration absorbing

Water Absorption
Nil after curing

Shelf Life
24 months in original packaging

Re-Entry Capability
Yes, removable and reusable

Flammability
Self-extinguishing

Chemical Resistance
Excellent to acids, bases, oils and salts

Viscosity (before curing)
Low, very pourable

Mixing Time
<1 minute by manual stirring

Curing Time
Approx. 10 minutes at room temperature

Compatibility
Safe with copper, aluminum, and plastic materials

Storage Condition
Store in cool, dry place, avoid direct sunlight

Two component gel Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Two component gel

Set sealing compound, 850 ml
for WP 060x x
sealing compound for refilling after changes or repairs
durability of sealing compound to processing 12 months at a storage temperature of 5 - 50 C

Rapid, Reliable Insulation Solution

Achieve professional-grade cable jointing and insulation in minutes with this easy-to-mix polyurethane gel. Its low viscosity ensures thorough pouring and complete enclosure coverage. Quick to cure and offering premium protection, this gel is ideal for electrical installations where speed, safety, and durability are paramount.

Ultimate Protection for Harsh Environments

Designed to withstand extreme temperatures (-40C to +100C), this gel provides unmatched defense against moisture, dust, shock, vibration, and chemicals-ensuring long-lasting cable reliability. Its excellent dielectric and mechanical properties make it suitable for use in industrial, commercial, and outdoor electrical systems.

Flexible and Re-Enterable Design

Once cured, this gel remains soft, transparent, and highly flexible, allowing for easy re-entry whenever inspection or cable modifications are necessary. Its self-curing nature and smooth, non-sticky finish guarantee effortless handling during both installation and future maintenance tasks.

FAQ's of Two component gel:

Q: How do I properly mix and apply the two-component gel?

A: To use, combine both components (500 ml each) in the supplied mixing container. Stir manually for less than one minute until you achieve a homogenous mixture, then pour into the enclosure, ensuring all cable joints are fully covered. The gel will cure and self-level within approximately 10 minutes at room temperature.

Q: What are the primary benefits of using this gel for cable insulation?

A: This gel provides superior dielectric strength, excellent moisture and dust protection (up to IP68), outstanding chemical and flame resistance, and effective shock absorption. Its non-toxicity, flexibility, re-entry capability, and compatibility with different cable materials further enhance safety and installation efficiency.

Q: When is it necessary to re-enter or remove the gel, and how is it done?

A: Re-entry is useful for inspection, maintenance, or cable modification. Simply open the enclosure; the cured gel remains flexible and can be removed without damage or residue. The gel can be reused if reinstallation is required, saving both material and labor costs.

Q: Where should the gel be stored to ensure optimal shelf life?

A: Store the product in its original packaging in a cool, dry place away from direct sunlight. Proper storage under these conditions will maintain its properties for up to 24 months.

Q: What makes this gel compatible with various connector and enclosure types?

A: Its low viscosity and self-leveling properties enable the gel to flow around any cable and connector design, ensuring full encapsulation. The product's chemistry is safe with copper, aluminum, and plastic, making it suitable for universal cable enclosures and joint types.

Q: How does the gel protect against environmental and electrical hazards?

A: Once cured, the gel provides a robust barrier against water ingress, dust, corrosive chemicals, oils, and salts. It also offers strong dielectric insulation (over 23 kV/mm) and withstands high humidity (0-100% RH), frequent mechanical shocks, and temperature fluctuations, ensuring safe and reliable operation.
