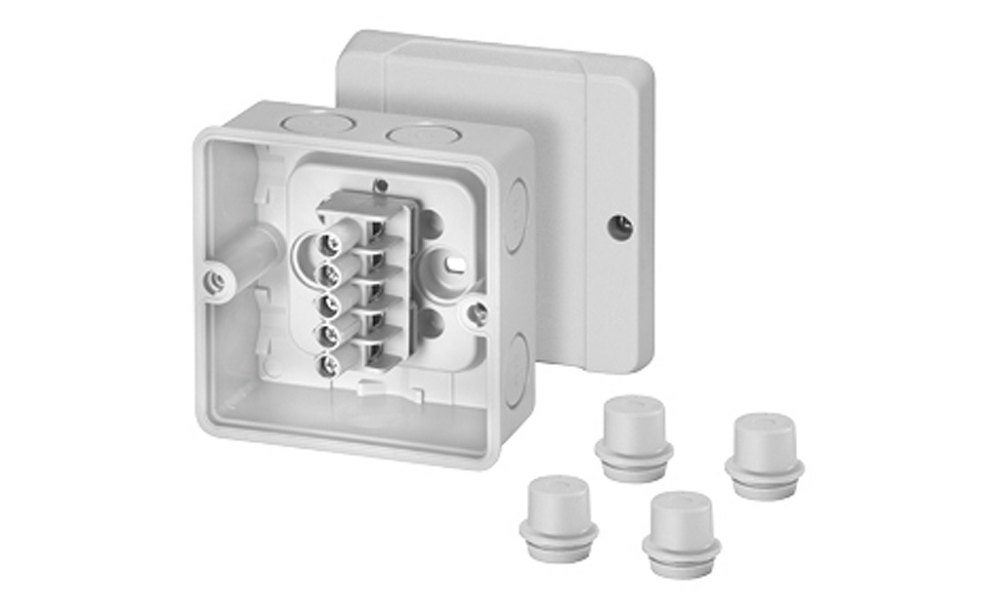

Cable Junction Boxes IP 65 with metric knockouts

Name: Cable Junction Boxes IP 65 with metric knockouts
Brand: Emson Power Engineers
Price: 22750.0 INR
Availability: InStock

Price 22750.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 65 with metric knockouts Specification

Mounting Type
Surface Mount / Wall Mount

Efficiency
N/A (Passive Enclosure)

Feature
Weatherproof, Dustproof, Corrosion-resistant, Easy cable entry via metric knockouts

IP Rating
IP65

Shape
Rectangular/Square

Humidity %
Up to 95% RH (non-condensing)

Surface Finish
Smooth, UV Resistant

Connector Type
Metric Cable Gland Knockout

Insulation Material
Polycarbonate / ABS insulation

Operating Temperature
-25C to +80C

Overheating Protection
Depends on cable rating, No active protection

Product Type
Cable Junction Box

Application
Junction and branching of electrical cables in indoor and outdoor installations

Protection Level
IP 65

Frequency (MHz)
50-60 Hz

Rated Voltage
Up to 690 V AC

Output Type
Knockout cable entry

Color
Light Grey (RAL 7035)

Dimension (L*W*H)
75x75x50 mm, 100x100x70 mm, 150x110x70 mm, 190x140x70 mm, 240x190x90 mm (varies by model)

Weight
5 Kilograms (kg)

Phase
PHASE 3

Size
Multiple Sizes - with metric knockout options: M16, M20, M25, M32, M40

Input Voltage
Up to 690 V

Connection Type
Screw Terminal / DIN connection

Material
High Impact Polycarbonate (PC/ABS)

No Of Poles
Single/Multiple (as per configuration)

Cable Entry Points
4-12 Metric knockouts (varies by enclosure size)

Padlock Provision
Optional for select models

Service Temperature
Short-term up to +100C (without mechanical load)

Resistance
Chemical, UV, and Impact Resistant

UV Resistance
Yes, Suitable for outdoor applications

Gasket Type
Silicone/Neoprene Gasket for sealing

Cover Transparency
Opaque or Transparent Lid Available

Flammability Rating
UL94 V-0

Lid Fastening
Screw closure (4-point) or snap-on lid (model-dependent)

Accessories
Mounting Screws, Internal Rail, Terminal Blocks (on request)

Standards Compliance
IEC 60670, EN 60529

Cable Junction Boxes IP 65 with metric knockouts Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 65 with metric knockouts

Unleash the potent reliability of our hot-selling Cable Junction Boxes IP 65, designed for superior cable management in challenging environments. Stellar for both indoor and outdoor plant applications, these weatherproof enclosures comply with IEC 60670 and EN 60529 standards. Procure models with screw closure or snap-on lids, offering watertight and dustproof protection with silicone/neoprene gaskets. Wondrous features include chemical, UV, and impact resistance, optional padlock provision, and a range of metric knockouts (M16-M40) for easy cable routing. Redeem robust performance thanks to high-impact PC/ABS construction, suitable for voltages up to 690V and ambient temperatures from -25C to +80C. Available in multiple dimensions and connection configurations, these junction boxes are the trusted choice for distributors, manufacturers, service providers, suppliers, and traders across India.

Versatile Applications and Advantages

Cable Junction Boxes IP 65 with metric knockouts shine in plant environments and industrial sites where dependable cable branching is vital. Ideal for electrical control panels, HVAC assemblies, and outdoor lighting, these boxes ensure secure sealing and protection against dust, water, and chemicals. The advantage lies in effortless installation via metric knockouts, robust impact-resistant housing, and dependable weatherproof sealing, making them suitable for both new and retrofit electrical network projects.

Export Markets, Payment, and Delivery Process

Our Cable Junction Boxes IP 65 are widely delivered to global buyers in the Middle East, Africa, Europe, and Southeast Asia. Order processing begins upon receipt of a formal Purchase Order, with flexible payment terms such as advance payment or letters of credit. Lead times vary by quantity, with most shipments dispatched within 7-15 business days from the confirmation of your order. Efficient handling and secure packaging ensure products arrive safely and on time.

FAQ's of Cable Junction Boxes IP 65 with metric knockouts:

Q: How are Cable Junction Boxes IP 65 installed for outdoor and indoor applications?

A: These junction boxes are designed for surface or wall mounting, accommodating various environments. Simply select the appropriate enclosure size, knock out the required metric entries for cables, mount the box, and fasten the lid securely using the provided screws or snap-on mechanism.

Q: What makes these junction boxes weatherproof and suitable for harsh conditions?

A: Featuring an IP 65 rating, these boxes are dustproof and protected against water jets. Silicone or neoprene gaskets, high-impact PC/ABS housing, and UV-resistant construction provide long-lasting defense against chemicals, UV light, and environmental impacts.

Q: Where can I use Cable Junction Boxes IP 65 in industrial facilities?

A: They are commonly installed in cable management systems, plant machinery, outdoor lighting circuits, HVAC control panels, and general electrical infrastructure requiring multiple cable branches and connection protection.

Q: What is the process for ordering and receiving Cable Junction Boxes?

A: Just submit a Purchase Order with specifications (size, lid type, accessories), arrange the agreed payment, and we initiate prompt order processing. Delivery is typically completed within 7-15 business days, with tracking and secure packaging.

Q: What are the main benefits of using metric knockouts in these enclosures?

A: Metric knockouts simplify cable entry, enabling custom cable routing without compromising the enclosure's IP 65 protection. This increases installation flexibility, reduces labor time, and assures secure connections for single or multiple poles.
