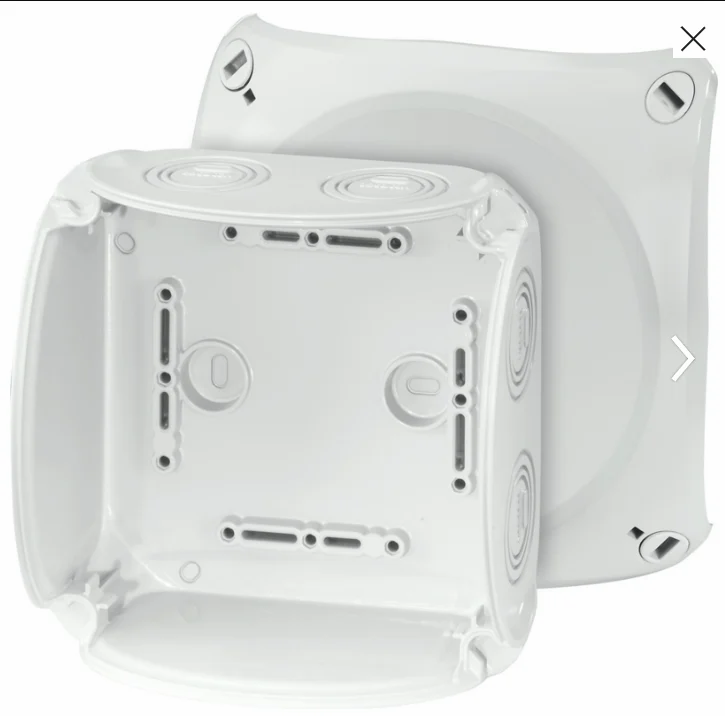

Cable Junction Boxes IP 66

Name: Cable Junction Boxes IP 66
Brand: Emson Power Engineers
Price: 641.0 INR
Availability: InStock

Price 641.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 Specification

Mounting Type
Wall / Surface / Panel Mount

Connector Type
Screw Terminal / Gland Entry

IP Rating
IP66

Surface Finish
Matte/Granular

Shape
Rectangular / Square

Operating Temperature
-25C to +80C

Humidity %
Up to 95% RH non-condensing

Insulation Material
Glass-Filled Polycarbonate

Power Factor
Not Applicable (passive device)

Overheating Protection
Not Applicable (passive device)

Feature
UV Resistant, Halogen Free, Weatherproof

Product Type
Cable Junction Box

Application
Wire & Cable Enclosure, Electrical Distribution

Protection Level
Full Gasket Seal, Dust-tight, Waterproof

Frequency (MHz)
50-60 Hz

Rated Voltage
Up to 690V AC

Energy Consumption
Passive (Non-powered)

Output Type
Terminal / Cable Entry

Color
Light Grey (RAL 7035)

Dimension (L*W*H)
150mm x 150mm x 100mm

Weight
5 Kilograms (kg)

Phase
PHASE 3

Size
104X104X70

Input Voltage
Up to 690V

Material
Polycarbonate (PC), Glass-Filled Thermoplastic

No Of Poles
Single / Multiple as required

Connection Type
Screw / Terminals / Gland Entry

Impact Resistance
IK08

Flammability Class
UL94 V-2

Terminal Capacity
Up to 16 mm2

Locking Provision
Optional Padlockable Lid

UV Resistance
Yes, suitable for outdoor use

Compliance Standards
IEC 60529, RoHS

Sealing Gasket
Silicone continuous gasket

Service Life
>10 Years

Chemical Resistance
Resistant to acids and alkalis

Closure Type
Screw Fastened Lid

Cable Entry Capacity
Multiple knockouts (pre-marked)

Halogen Free
Yes

Lid Type
Opaque or Transparent with Secure Screws

Cable Junction Boxes IP 66 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66

Material	Poly Carbonate
IP Rating	IP69
Brand	Hensel
Dimensions	104 x 104 x 70 mm
Model Name/Number	KF 0404
Rated Insulation Voltage	690 V AC
Rated Current	32 A
Weight	0.17 Kg
Tightening Torque For Terminal	0.7 Nm
Availability	In Stock

Rugged Outdoor Protection

Designed to withstand harsh weather, these IP66 cable junction boxes feature a continuous silicone gasket, providing dust-tight and waterproof performance. Their UV-resistant polycarbonate bodies ensure reliable service in outdoor installations, while the IK08 impact rating adds peace of mind for physical protection.

Flexible Cable and Terminal Management

Accommodating multiple cable entries with pre-marked knockouts and supporting up to 16 mm2 terminals, these boxes adapt effortlessly to varying wiring needs. Whether deployed in residential, commercial, or industrial settings, they offer flexibility for both new installations and upgrades.

Secured and Safe Connections

Each enclosure features a screw-fastened lid with optional padlock provision for improved security. With compliance to IEC, RoHS, and UL standards, and constructed from halogen-free, glass-filled polycarbonate, safety and durability are inherently integrated-making these boxes ideal for critical electrical junctions.

FAQ's of Cable Junction Boxes IP 66:

Q: How can I install and mount the IP66 cable junction box securely?

A: The junction box is designed for easy installation with wall, surface, or panel mounting options. Use the provided mounting points and secure the screw-fastened lid for a tight, weatherproof seal. Ensure connections are properly secured using screw or terminal/gland entries as needed.

Q: What types of environments are these junction boxes suitable for?

A: These enclosures are engineered for both indoor and outdoor environments, withstanding temperatures from -25C to +80C and humidity up to 95% RH (non-condensing). Their UV resistance and IP66 rating make them suitable for exposed locations, ensuring long-term performance.

Q: When should I opt for an opaque versus a transparent lid?

A: Choose an opaque lid for enhanced protection against sunlight and accidental viewing of internal wiring. A transparent lid provides easy inspection of internal connections without opening the box, which can be beneficial for regular visual checks in maintenance routines.

Q: Where can these junction boxes be deployed?

A: These boxes are versatile and can be used in a range of installations such as residential cable junctions, industrial electrical distributions, outdoor lighting, and harsh environments requiring chemical, dust, and waterproof protection, including marine or chemical plants.

Q: What is the process for cable and gland entry in this box?

A: Cables can be fed through the multiple pre-marked knockouts on each box side. After selecting your desired cable entry point, remove the knockout, insert the gland or cable, and seal around it as per installation best practices to maintain IP66 protection.

Q: How does the box ensure electrical and user safety?

A: Safety is achieved by using high-grade, flame-retardant (UL94 V-2), halogen-free, glass-filled polycarbonate, with a continuous silicone gasket for a watertight and dust-tight seal. The optional padlock and screw-fastened lid offer additional security against unauthorized access.

Q: What are the benefits of using this junction box for my cabling needs?

A: This junction box provides robust physical and environmental protection, long service life (>10 years), flexible cable management, and ensures compliance with global safety and environmental standards, making it a reliable solution for critical wiring applications.
