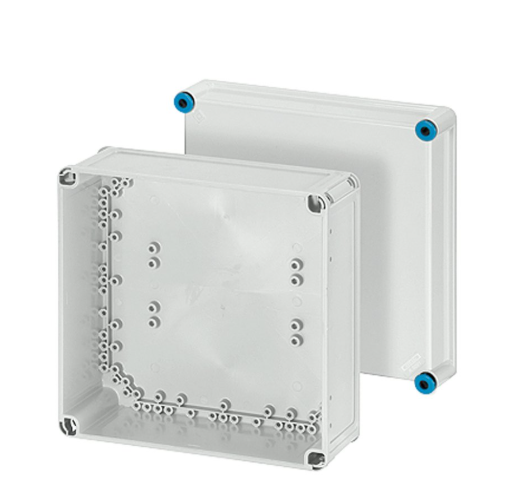

Cable Junction Boxes IP 66

Name: Cable Junction Boxes IP 66
Brand: Emson Power Engineers
Price: 1505.0 INR
Availability: InStock

Price 1505.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 Specification

Humidity %
<95% RH, Non-condensing

IP Rating
IP66

Operating Temperature
-25C to +80C

Efficiency
High

Insulation Material
Polycarbonate

Mounting Type
Wall/DIN Rail Mountable

Feature
UV Stabilized, Tamper Proof, Fire Retardant

Surface Finish
Textured / Smooth

Connector Type
Cable Gland / Terminal

Overheating Protection
YES

Shape
Rectangular

Product Type
Cable Junction Box

Application
Electrical Junction/Terminal Enclosure

Protection Level
IP66 Dust and Water Proof

Frequency (MHz)
50/60 Hz

Rated Voltage
220-415 V

Output Type
Terminal Connection

Color
Light Grey

Dimension (L*W*H)
150 mm x 110 mm x 70 mm

Weight
5 Kilograms (kg)

Phase
PHASE 3

Input Voltage
220 V AC

Size
200X200X89

No Of Poles
Single/Multiple (as per requirement)

Connection Type
Screw Type Terminal Block

Material
Polycarbonate / ABS

Operating Altitude
Up to 2000 meters

Cover Fastening
4 x Captive Screws for Secure Closure

Sealing Gasket
Silicon Rubber

Compliance
RoHS, CE Certified

Flammability Rating
UL94 V-0

Service Life
>10 Years

Cable Entry Options
Pre-scored Knockouts on sides and base

Ingress Protection
Total protection against dust ingress and powerful water jets

Mechanical Impact Resistance
IK08

Cable Junction Boxes IP 66 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66

Cable junction box 1.5-10 mm, Cu
cable junction box with fused outgoing unit
D 01 neozed fuse base
5-pole terminal with 2 connecting terminals, 2 junction terminals and 2 PE terminals, each 1.5-10 mm sol
terminal block made from ceramic with resistance to high temperatures
mounted grommets 4 EDKF 40,sealing range 11-30 mm, closed
intrinsic fire resistance E 30 in accordance with DIN 4102 part 12
the use of this equipment requires the approval from the building and regulatory authorities for the individual case
Tested with cable manufacturers Dtwyler and Nexans for the intrinsic fire resistance E30, see test certificate no.: P-MPA-E-02-032, valid till March 20, 2018, download available from www.hensel-electric.de
mounted using exterior wall fixings,
bore hole 8.2 mm(for dowels refer to technical data)
for normal environment and protected outdoor
colour: orange, RAL 2003

Robust Ingress Protection

Our cable junction boxes offer IP66-rated protection, ensuring no dust ingress and safeguarding internal components from powerful water jets. The silicone gasket and tightly fastened captive screws deliver a watertight seal, making these boxes reliable for demanding industrial and outdoor settings. This robust protection helps prolong the lifespan and performance of sensitive electrical connections.

Certified Safety and Compliance

Meeting RoHS and CE certifications, these junction boxes prioritize environmental and user safety. The construction materials, including polycarbonate or ABS, are UV stabilized, tamper resistant, and carry a UL94 V-0 flammability rating. This ensures the enclosure performs optimally under tough conditions and aligns with global regulatory requirements.

Flexible Installation and Connectivity

Designed with pre-scored knockouts on sides and base, the enclosure can be tailored easily onsite for various cable entry requirements. Wall or DIN rail mounting options cater to diverse installation needs, while the screw-type terminal blocks and cable gland connections provide dependable wiring and secure fits, streamlining both setup and ongoing maintenance.

FAQ's of Cable Junction Boxes IP 66:

Q: How does the IP66 rating benefit the installation in outdoor or harsh environments?

A: The IP66 rating guarantees total protection against dust and resistance to strong water jets, ensuring the junction box can be safely installed outdoors or in harsh industrial locations without risk of contamination or water ingress.

Q: What safety certifications and standards does this cable junction box meet?

A: This junction box is RoHS and CE certified, with a flammability rating of UL94 V-0, ensuring adherence to strict environmental and safety regulations for electrical enclosures.

Q: When should I choose a polycarbonate or ABS enclosure for my application?

A: Polycarbonate is ideal for applications requiring high impact resistance, UV stability, and fire retardancy, while ABS provides a cost-effective solution for less demanding settings. Both materials ensure durability and electrical insulation.

Q: Where can this junction box be mounted and what options are available?

A: The enclosure is suitable for both wall and DIN rail mounting, offering flexibility in installation across control panels, distribution boards, and field locations.

Q: What process should I follow to connect cables using this box?

A: Simply use the pre-scored knockouts to create cable entry points, then insert cables via glands or terminal blocks and secure connections using the screw type terminal blocks provided within the box.

Q: How does the product ensure long service life and reliability?

A: With robust material choices, silicone sealing gaskets, fire retardant properties, and protection against corrosion, UV, and tampering, the junction box is engineered for a service life exceeding 10 years, even under tough conditions.
