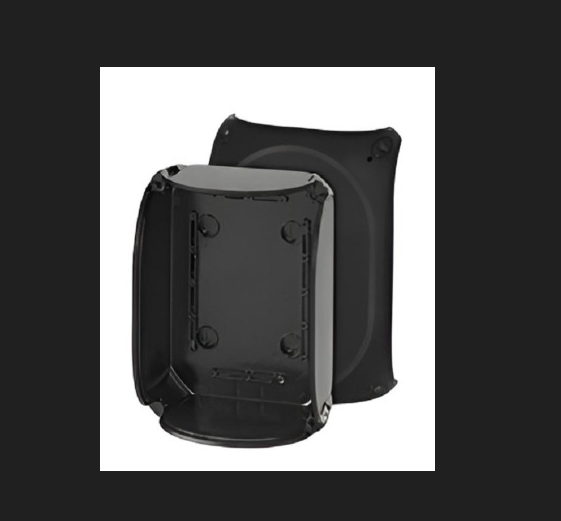

Cable Junction Boxes IP 66/67/69 (Black)

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66/67/69 (Black)

Price 1520.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66/67/69 (Black) Specification

Power Factor
1.0

Mounting Type
Wall/Surface Mount

Surface Finish
Matte

Efficiency
98%

Overheating Protection
Yes (Material resistant up to 650C)

Humidity %
5% to 95%

Feature
UV Resistant, Weatherproof

IP Rating
IP66 / IP67 / IP69

Insulation Material
Polycarbonate

Shape
Rectangular

Operating Temperature
-25C to +60C

Connector Type
Screw/Push-fit

Product Type
Cable Junction Box

Application
Outdoor and Indoor Cable Connections

Protection Level
IP66 / IP67 / IP69

Frequency (MHz)
50 / 60 Hz

Rated Voltage
450 V AC / 500 V DC

Output Type
Terminal

Color
Black

Dimension (L*W*H)
110 x 80 x 40 mm (typical)

Weight
5 Kilograms (kg)

Phase
PHASE 3

Size
130X180X77

Input Voltage
Up to 450V AC

Material
Glass fiber reinforced polycarbonate (PC)

No Of Poles
2, 3, 4, 5, 6, 8, 10 (depending on model)

Connection Type
Screw Terminal / Cable Gland

Resistance to Chemicals
High

Halogen Free
Yes

Flammability Class
UL94-V2

Lid Fixing
4 captive screws

Cable Entry Option
Knockout holes for cable glands

Impact Resistance
IK08

Environmental Compliance
RoHS Compliant

Ingress Protection Standard
EN 60529

Gasket Material
Silicone

Earth Terminal
Included (optional)

Cable Junction Boxes IP 66/67/69 (Black) Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66/67/69 (Black)

Unlock the finest in electrical safety with our Sizzling Cable Junction Boxes IP66/67/69 (Black) - now available on clearance. Crafted from glass-fiber reinforced polycarbonate, these paragon junction boxes boast stellar ingress protection to EN 60529, weatherproof matte finish, and knockout cable entry options. With optional earth terminals, silicone gaskets, and UL94-V2 flammability class, they're a top choice for outdoor and indoor plant applications. RoHS and IK08 compliant, halogen-free, and highly resistant to chemicals, these junction boxes are engineered for reliability in India's demanding environments.

Exceptional Performance for Plant Applications

These Cable Junction Boxes IP66/67/69 (Black) stand out in power plants, industrial sites, and commercial installations. Their robust construction offers high resistance to chemicals and UV rays, a must for both indoor and outdoor cable connections. Designed for efficient phase management (PHASE 3), they suit a wide range of wiring setups with screw terminal or cable gland options. Use them for secure, weatherproof cable terminations where durability is paramount.

Packaging, Certifications & Seamless Order Processing

Each junction box is meticulously packed to prevent damage during transit, assuring delivery in pristine condition. Our products meet RoHS and EN 60529 standards and come with UL94-V2 flammability certification. Benefit from transparent list pricing, swift purchase order acceptance, and efficient order processing to streamline your procurement. Flexible payment terms are available for distributors, manufacturers, and service providers across India.

FAQ's of Cable Junction Boxes IP 66/67/69 (Black):

Q: How does the Cable Junction Box ensure weatherproof protection?

A: The Cable Junction Box is engineered with a silicone gasket, IP66/67/69 ingress protection, and a UV-resistant, glass-fiber reinforced polycarbonate body, guaranteeing exceptional weatherproof performance for both indoor and outdoor installations.

Q: What certifications do these junction boxes hold?

A: They comply with EN 60529 ingress standards, UL94-V2 flammability ratings, and are RoHS compliant, ensuring safety, environmental responsibility, and high-quality performance.

Q: Where can these boxes be used most effectively?

A: These versatile boxes are ideal for plant applications, industrial environments, and any setting where reliable, high-protection cable junctions are needed for outdoor or indoor use.

Q: What are the available entry and mounting options?

A: Choose from knockout holes for cable glands and secure wall/surface mounting. The lid features four captive screws for quick and safe access to internal terminals.

Q: How is order processing handled for bulk purchases?

A: Order processing is streamlined: submit a purchase order, receive transparent list pricing, and enjoy efficient shipment handling. We cater to distributors, manufacturers, and service providers across India.
