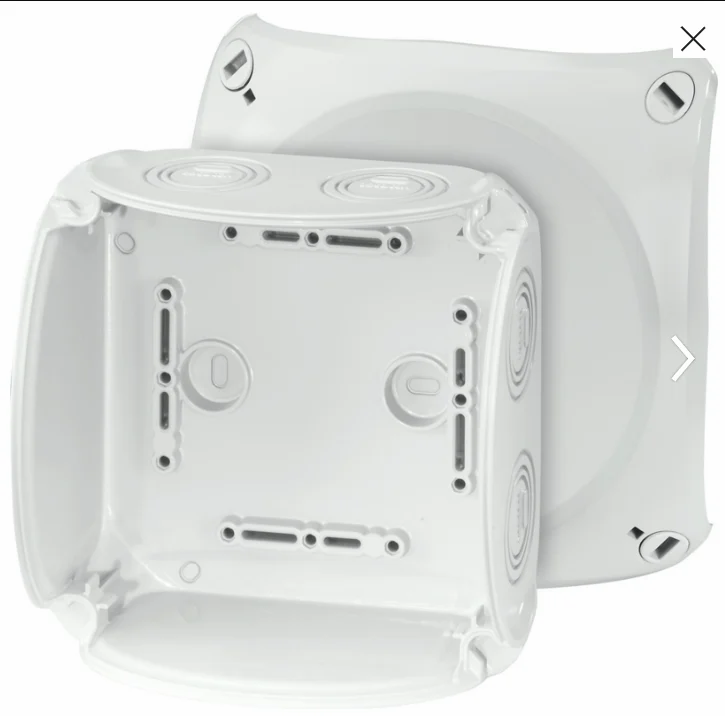

Cable Junction Boxes IP 66/67/69 (Grey)

Price 715.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66/67/69 (Grey) Specification

Efficiency
100% in Sealing and Protection

Connector Type
Cable Gland/Terminal Block

Humidity %
Up to 95% (non-condensing)

IP Rating
IP66/67/69

Surface Finish
Smooth Matt Finish

Operating Temperature
-25C to +80C

Mounting Type
Wall/Surface Mount

Insulation Material
High-Quality Polycarbonate

Overheating Protection
Yes (Material is Heat Resistant)

Shape
Rectangular

Feature
UV resistant, Impact Resistant, Fire Retardant

Product Type
Cable Junction Box

Application
Electrical Wiring, Cable Management, Industrial & Outdoor Applications

Protection Level
Dust Tight, Waterproof, High Pressure Washdown

Frequency (MHz)
50/60 Hz

Rated Voltage
up to 690 V

Output Type
Terminal Block/Cable Gland

Color
Grey

Dimension (L*W*H)
110mm x 110mm x 65mm (Custom Size Available)

Weight
5 Kilograms (kg)

Phase
PHASE 3

Size
104X104X70

Input Voltage
Up to 690 V

Material
ABS Polycarbonate

No Of Poles
Single/Multiple (Customizable)

Connection Type
Screw/Push-fit

Internal Mounting Options
Mounting Plate/Terminal Rails Possible

Resistance
Resistant to Chemicals and UV

Flammability Rating
UL94 V-2

Lid Type
Screw-on Lid

Standards Compliance
EN 60529, RoHS Compliant

Cable Entry Options
Pre-punched/Knockout (On Request)

Gasket Material
Silicone Rubber

Cover Screws
Stainless Steel, Corrosion Resistant

Cable Junction Boxes IP 66/67/69 (Grey) Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66/67/69 (Grey)

Material	Polycarbonate
Size	104X104X70
Ingress Protection	IP 66/67/69
Shape	Square
Cover Type	Screwed
Mounting Type	Wall Mount
With Terminal Block	No
Color	Grey
Availability	In Stock

Unparalleled Protection for Industrial and Outdoor Installations

Boasting an IP66/67/69 rating, these cable junction boxes are engineered to deliver complete protection against dust, water ingress, and even high-pressure cleaning. Suitable for environments exposed to extreme weather or industrial washdowns, the boxes safeguard your electrical wiring and connections, ensuring operational safety and reliability even in challenging conditions.

Advanced Materials and Robust Construction

Constructed from ABS polycarbonate, with a smooth matt finish and stainless steel screws, these enclosures offer excellent impact, UV, and fire resistance. They remain reliable in temperatures from -25C to +80C and humidity up to 95%. The high-quality silicone rubber gasket and corrosion-resistant features ensure durability and safety throughout their service life.

FAQ's of Cable Junction Boxes IP 66/67/69 (Grey):

Q: How do the IP66/67/69 cable junction boxes ensure electrical protection in industrial applications?

A: These junction boxes are designed with silicone rubber gaskets and screw-on lids to deliver exceptional sealing against dust, water, and high-pressure spray. Their advanced ABS polycarbonate material, robust construction, and stainless-steel screws provide additional protection against chemicals, UV, and corrosion, making them ideal for rigorous industrial environments.

Q: What cable entry options are available and how can they be customized for specific projects?

A: The boxes offer pre-punched or knockout cable entry options on request, allowing easy tailoring to suit cable specifications or conduit sizes. This flexibility ensures compatibility with different cable management setups, making installation straightforward and efficient for various electrical wiring needs.

Q: When should these cable junction boxes be chosen over standard enclosures?

A: Select these boxes when your installation requires exceptional protection against ingress of water, dust, chemicals, or when subject to outdoor or industrial conditions. Their high IP ratings, impact resistance, and capacity for high humidity environments make them suitable for critical or exposed electrical connections.

Q: Where can these enclosures be installed, and what mounting options do they support?

A: They are suitable for both indoor and outdoor installations-ideal for factories, facilities, and external structures. The design supports wall and surface mounting, with internal options for mounting plates or terminal rails, expanding their use in varied electrical and cable management applications.

Q: What is the process for ensuring compliance with safety and quality standards?

A: Each box adheres to EN 60529, UL94 V-2 flammability, and RoHS guidelines. The materials used are rigorously tested for durability, heat resistance, and insulative properties, while the enclosures undergo quality checks to ensure 100% sealing and protection efficiency before distribution.

Q: How does the design of these junction boxes benefit users in corrosive or UV-intensive environments?

A: The carefully chosen ABS polycarbonate material, UV-resistant surface, and stainless steel hardware make these boxes highly resistant to sunlight, weather, and corrosive substances. This construction ensures a long lifespan and low maintenance, particularly in outdoor, marine, or chemical-prone locations.
