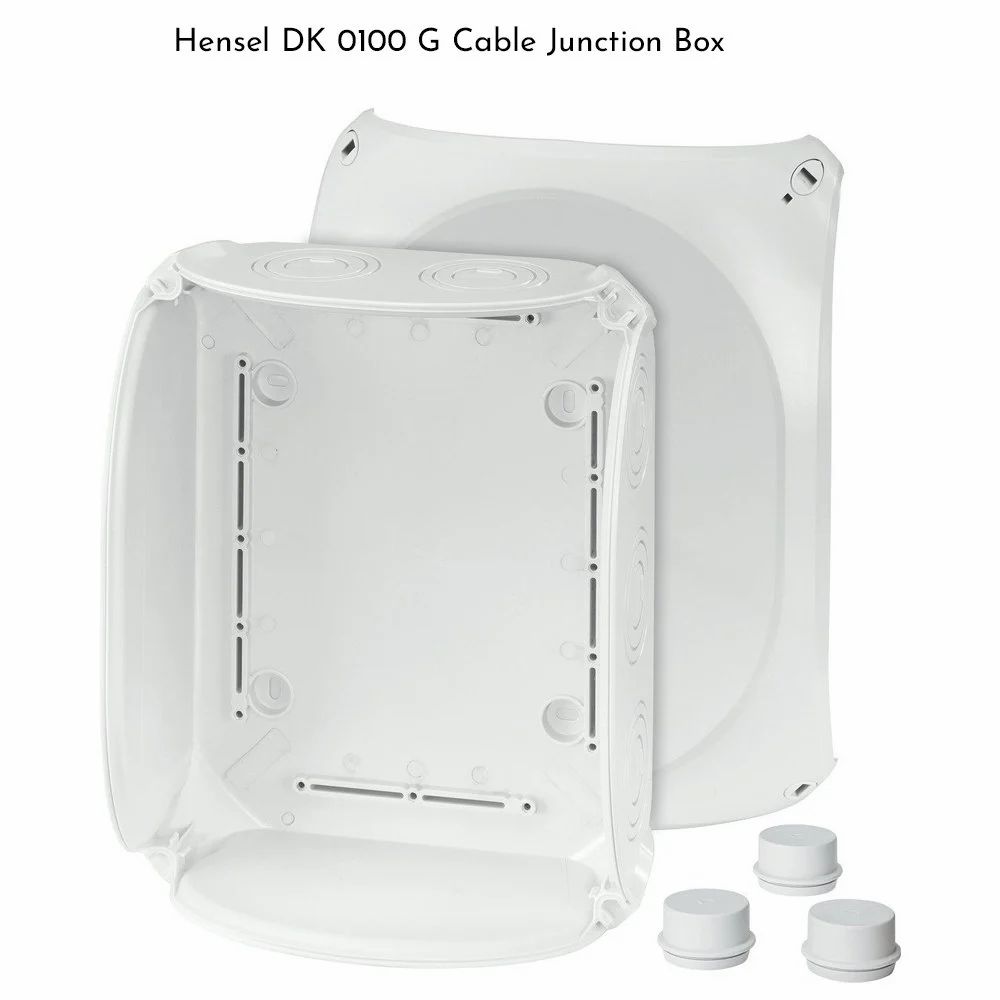

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Price 1890.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Grey) with integrated membranes Specification

Humidity %
Up to 95% RH

IP Rating
IP66

Connector Type
Cable Gland/Integrated Membrane

Shape
Rectangular

Feature
Integrated Entry Membranes, Weatherproof, UV Resistant

Insulation Material
Polycarbonate

Operating Temperature
-25C to +60C

Mounting Type
Surface/Wall Mounting

Overheating Protection
Yes (By design, non-metallic body)

Efficiency
N/A (Passive Component)

Surface Finish
Matte/Texture Finish

Product Type
Cable Junction Box with Integrated Membranes

Application
Electrical Cable Management and Protection

Protection Level
IP66

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 500V AC/DC

Energy Consumption
N/A (Passive Device)

Output Type
Cable Interface

Color
Grey

Dimension (L*W*H)
110 mm x 110 mm x 66 mm

Weight
4 Kilograms (kg)

Size
Standard (110 x 110 x 66 mm)

Phase
Single/Three Phase Compatible

Input Voltage
Up to 500V

Material
High-Grade Polycarbonate

Connection Type
Screw Terminal/Quick Connector

No Of Poles
Multiple (Up to 4 Entries)

Impact Resistance
IK08

Enclosure Sealing
Integrated Gasket

Cover Type
Screw-fitted Lid with Seal

Standards Compliance
IEC 60670, EN 60529

Cable Diameter Range
4-15 mm

Halogen Free
Yes

Flame Retardant Standard
UL94 V-2

Resistance to Chemicals
High

Accessories Included
Mounting Screws, Cable Markers

Membrane Entry Count
4 Sides with Multiple Entry Points

Cable Junction Boxes IP 66 (Grey) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Grey) with integrated membranes

Material	Poly Carbonate
Brand	HENSEL
Type	WITHOUT TERMINALS
Color	GREY
Dimensions	155X210X92 MM
Usage/Application	Industrial
IP Rating	IP 66
Shape	Rectangular
Availability	In Stock

Superior Protection and Durability

Engineered for reliability and longevity, these junction boxes deliver IP66-level weatherproofing, excellent UV resistance, and a robust polycarbonate body to protect against mechanical and environmental stressors. The integrated gasket guarantees a moisture-tight seal, while matte/textured surfaces prevent accidental slips during handling. Perfect for both indoor and outdoor applications, they provide peace of mind in any setting.

Effortless Installation and Versatility

With entry membranes on all four sides and support for both screw terminal and quick connector types, installation is flexible and efficient. The included mounting screws and cable markers simplify setup, while the standardized dimensions (110 x 110 x 66 mm) ensure compatibility with existing systems. Suitable for surface or wall mounting, the junction boxes can accommodate a range of cable management needs.

Compliance and Safety First

Manufactured in accordance with IEC 60670 and EN 60529, these enclosures meet stringent international standards for safety and reliability. The integrated flame retardant design (UL94 V-2), high chemical resistance, and non-metallic body offer additional safeguards against fire, chemical exposure, and overheating. Halogen-free construction enhances safety and environmental responsibility.

FAQ's of Cable Junction Boxes IP 66 (Grey) with integrated membranes:

Q: How do I install the IP66 grey cable junction box with integrated membranes?

A: Simply mount the box on any surface or wall using the included mounting screws. The integrated membranes allow for tool-less cable entry; just push cables with diameters between 4 and 15 mm through the membrane at any of the four sides. Connect your wires using either screw terminals or quick connectors. Ensure the screw-fitted lid with integrated gasket is secured tightly to maintain IP66 protection.

Q: What are the main benefits of using this junction box for cable management?

A: This enclosure provides IP66-rated protection against dust, water, and UV, keeping electrical connections safe in harsh environments. Its high-grade polycarbonate body offers IK08 impact resistance, and its flame-retardant, halogen-free materials ensure safety and environmental compliance. The integrated membrane design simplifies cable entry, speeding up installation and reducing the need for additional accessories.

Q: When should I use a junction box with this level of protection and compliance?

A: Use this IP66 junction box in conditions that require full protection against dust, water jets, chemical exposure, or UV radiation-ideal for industrial, commercial, outdoor, or demanding indoor environments where robust cable management and electrical protection are essential.

Q: Where can these junction boxes be installed, and what systems are they compatible with?

A: They are suitable for both indoor and outdoor installations across various locations, from factories and warehouses to outdoor distribution panels and commercial complexes. The boxes support single and three-phase systems, accommodating up to four pole/supply entries and a wide range of cable sizes.

Q: What process ensures the box maintains its weatherproof and secure enclosure?

A: The junction box employs a precision-engineered, screw-fitted lid with an integrated gasket. When the cover is securely fastened, the gasket forms a watertight and dust-tight seal, ensuring reliable IP66 protection even under variable humidity or temperature conditions.

Q: How does the flame retardancy and chemical resistance contribute to safety?

A: With UL94 V-2 flame retardancy and high chemical resistance, the box protects against fire hazards and chemical spills, reducing the risk to electrical connections and personnel. Halogen-free materials further enhance safety during fire incidents by minimizing toxic emissions.

Q: What accessories come with the product, and how do they aid installation?

A: Each box includes mounting screws for easy installation and cable markers for clear identification of circuits or cable runs, ensuring a neat and organized setup. These accessories streamline the installation process and enhance system traceability.
