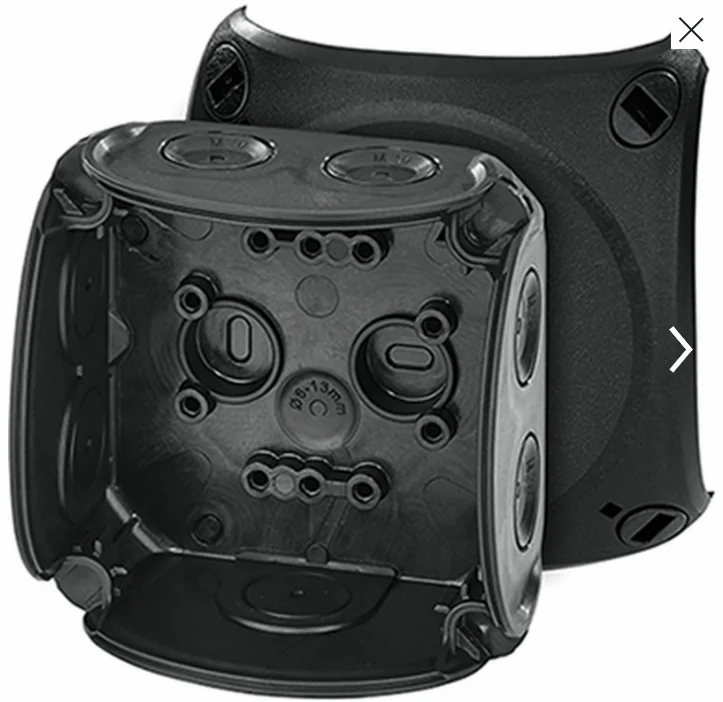

Cable Junction Boxes IP 66/67 with PE Inlay

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66/67 with PE Inlay

Name: Cable Junction Boxes IP 66/67 with PE Inlay
Brand: Emson Power Engineers
Price: 1240.0 INR
Availability: InStock

Price 1240.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66/67 with PE Inlay Specification

Efficiency
High

Overheating Protection
Yes (via insulation and design)

IP Rating
IP66/IP67

Insulation Material
Polyethylene (PE) Inlay

Surface Finish
Smooth / Textured

Mounting Type
Surface/Wall Mounting

Humidity %
Up to 95% (non-condensing)

Connector Type
Cable Glands / Terminal Block

Shape
Rectangular

Feature
Weatherproof, Dustproof, Flame retardant

Operating Temperature
-25C to +60C

Product Type
Cable Junction Box with PE Inlay

Application
Electrical cable termination, connection and distribution

Protection Level
High

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 690 V AC/DC

Output Type
Wired output

Color
Grey

Dimension (L*W*H)
130 x 130 x 75 mm

Weight
5 Kilograms (kg)

Input Voltage
Up to 690 V

Size
93X93X62

Phase
PHASE-3

Connection Type
Screw/Clamp type terminals

No Of Poles
1-12 Poles (customizable)

Material
Polycarbonate (PC), Polyethylene (PE) Inlay

Lid Type
Screw-on Transparent/Opaque lid options

With PE Terminal
Yes, pre-mounted

Standards Compliance
IEC 60670-22, RoHS compliant

Corrosion Resistance
Excellent

UV Resistance
Yes

Cover Sealing
Silicone/Neoprene gasket

Flame Class
UL94 V-2

Cable Entry Holes
Up to 8 (customizable)

Locking Mechanism
Optional hinge & lock

Cable Junction Boxes IP 66/67 with PE Inlay Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66/67 with PE Inlay

Jump on this best-seller for unparalleled value-Cable Junction Boxes IP 66/67 with PE Inlay. Renowned for their excellent corrosion resistance and brilliant protection, these radiant enclosures feature a lustrous polycarbonate body, customizable entry holes, and screw-on transparent or opaque lids. UV and flame resistance (UL94 V-2) ensure durability in every environment. Designed for safety with pre-mounted PE terminals, silicone/neoprene sealing, and optional locks, making them the ideal choice for robust electrical termination and distribution. Trusted by distributors, manufacturers, traders, and service providers across India.

Diverse Cable Termination & Connection Applications

Cable Junction Boxes IP 66/67 with PE Inlay are crafted for exceptional durability in demanding environments. Used for electrical cable termination, connection, and distribution, these radiant junction boxes are ideal for power grids, industrial setups, commercial complexes, and outdoor installations. They feature a robust screw/clamp connection type, with up to 12 poles and various mounting options, meeting diverse wiring needs and ensuring secure, long-lasting connections even where humidity and temperature fluctuations challenge lesser enclosures.

Certifications, Payment Process & Sample Handover

Our Cable Junction Boxes are IEC 60670-22 and RoHS compliant for assured safety and environmental standards. Whether you are a supplier, distributor, or manufacturer, accommodate seamless transactions with flexible payment terms. Customers may request a sample-charges may apply-which will be handed over promptly to allow confident assessment before a larger order is placed. Each box is meticulously inspected before final handover, ensuring only the best value and compliance reach your hands.

FAQ's of Cable Junction Boxes IP 66/67 with PE Inlay:

Q: How do Cable Junction Boxes IP 66/67 with PE Inlay protect electrical connections?

A: The IP66/IP67 rating means these junction boxes offer complete protection against dust and powerful water jets or temporary immersion. Combined with UV resistance, flame retardant materials, and outstanding corrosion resistance, your electrical connections remain secure in harsh environments.

Q: What are the customization options for entry holes and poles?

A: These junction boxes offer up to 8 customizable cable entry holes and can accommodate 1 to 12 poles, adapting easily to specific cable distribution and termination requirements in various applications.

Q: Where can Cable Junction Boxes IP 66/67 with PE Inlay be installed?

A: Their weatherproof and dustproof design, coupled with the flame retardant polycarbonate housing, makes them suitable for surface or wall mounting outdoors or indoors, servicing industrial, commercial, and utility environments.

Q: What standards and certifications support product reliability?

A: Each box is manufactured to meet IEC 60670-22 and RoHS compliance, ensuring adherence to stringent international electrical safety and environmental benchmarks.

Q: Is it possible to obtain a sample unit before placing a bulk order?

A: Yes, samples can be requested-generally subject to a small charge. Once approved, samples will be handed over promptly to help you evaluate the product's suitability for your requirements.
