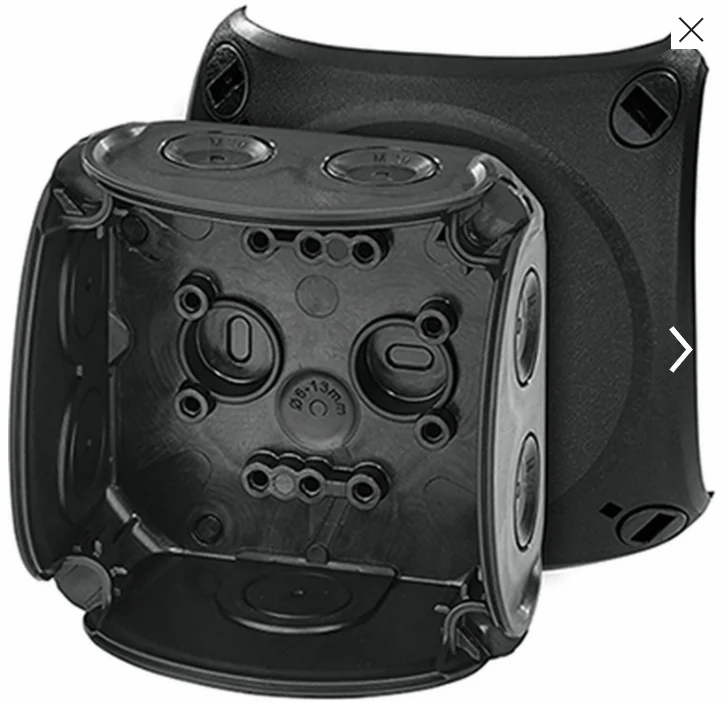

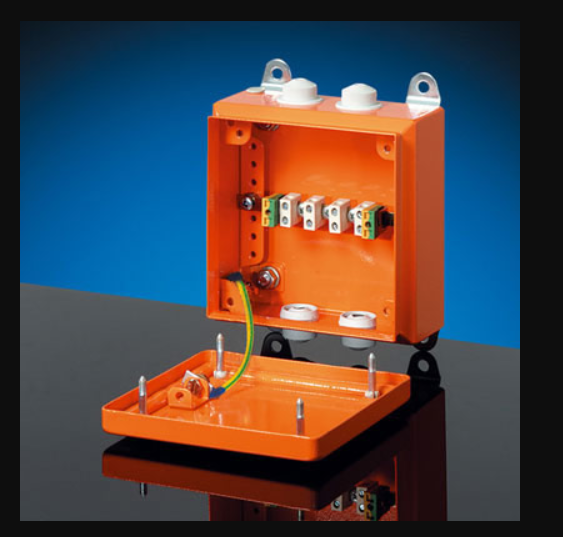

Cable Junction Boxes IP 66/67 with PE Inlay

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66/67 with PE Inlay

Name: Cable Junction Boxes IP 66/67 with PE Inlay
Brand: Emson Power Engineers
Price: 2040.0 INR
Availability: InStock

Price 2040.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66/67 with PE Inlay Specification

Insulation Material
Polycarbonate (PC), PE Inlay

Feature
High mechanical strength, UV-resistant, flame retardant, halogen free

Connector Type
M20 / M25 cable gland compatible

Operating Temperature
-25C to +80C

Overheating Protection
Yes (self-extinguishing material)

Surface Finish
Smooth, matte

Efficiency
100% (No losses as passive junction)

Shape
Rectangular

Humidity %
Up to 95% RH (non-condensing)

IP Rating
IP66 / IP67

Mounting Type
Wall / Surface Mount

Product Type
Cable Junction Box

Application
Electrical wiring, cable management, outdoor and industrial uses

Protection Level
Double insulation

Frequency (MHz)
50-60 Hz

Rated Voltage
Up to 690 V AC/DC

Energy Consumption
Passive device - not applicable

Output Type
Terminal connection

Color
Grey (Lid: Transparent/Grey)

Dimension (L*W*H)
Various (e.g., 130x130x75mm, 180x180x90mm, others)

Weight
5 Kilograms (kg)

Input Voltage
Up to 690V

Phase
PHASE-3

Size
130X130X77

Material
Polycarbonate (PC), PE Inlay

No Of Poles
Up to 4 Poles

Connection Type
Screw terminal or spring clamp

Cover Type
Screw-on Cover

Cable Entry Options
Knockouts and drilling points

Ingress Protection Test
Passed IPX6 and IPX7 tests

Environmental Resistance
UV, weather, and impact resistant

Custom Marking
Available upon request

Standards Compliance
EN 60670, IEC 62208

Halogen Content
Halogen free

Accessories Included
Cable glands, mounting screws

Fire Class
UL94 V-0

Recyclability
Fully recyclable materials

Cable Junction Boxes IP 66/67 with PE Inlay Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66/67 with PE Inlay

Grab yours now - the Supreme Cable Junction Boxes IP 66/67 with PE Inlay! Engineered for serious durability, these classic boxes blend enlightened design with certified compliance to EN 60670 and IEC 62208. With advanced ingress protection (IPX6/IPX7 passed!), they're UV, weather, and impact resistant. Benefit from double insulation, halogen-free composition, and a flame-retardant UL94 V-0 rating. Each sale includes accessories such as cable glands and mounting screws. Whether outdoors or in industrial settings, enjoy custom marking, supreme material quality, and full recyclability. Secure your installation - grab this powerful solution today!

Unmatched Versatility, Strength & Performance

Cable Junction Boxes IP 66/67 with PE Inlay shine in outdoor, industrial, and demanding environments. Their versatility encompasses applications in harsh weather, cable management for machinery, and electrical wiring projects. Engineered for maximum protection and safety, they offer competitive advantages such as double insulation, UV- and impact-resistance, and flame-retardant PE Inlay. Special features include knockouts, customizable markings, and a transparent cover option, ensuring adaptability to any project's requirements. Grab the enlightened choice for secure electrical connections.

Certifications, Fast Shipping & Hassle-Free Service

Certified to standards EN 60670 and IEC 62208, these junction boxes also pass IPX6/IPX7 ingress protection and UL94 V-0 flame retardancy. Quick dispatch of orders is available, supported by reliable transport services and prompt drop-off arrangements across India. Packaging is robust for safe transit, and standard payment terms include advance payment, bank transfer, and credit facilities for distributors and traders. Enjoy the confidence of certified safety and dedicated service when you grab yours today!

FAQ's of Cable Junction Boxes IP 66/67 with PE Inlay:

Q: How do I install these Cable Junction Boxes?

A: Installation is straightforward-mount the box using the included screws, prepare cable entries through knockouts or drilling points, and connect wires via screw terminals or spring clamps. Cable glands are supplied for secure entries.

Q: What environments are these boxes designed for?

A: These junction boxes are designed for outdoor, harsh industrial, and high-humidity settings thanks to their IP66/67 rating, double insulation, UV resistance, and impact-proof design.

Q: When can I expect delivery after placing an order?

A: Orders are typically processed with quick dispatch. Delivery times depend on your location in India, but we partner with efficient transport and drop-off services for prompt arrival.

Q: Where can I use these cable junction boxes?

A: They are ideal for electrical wiring, cable management, and as protective enclosures in outdoor, industrial, and commercial applications needing supreme ingress protection.

Q: What certifications and safety features do these boxes offer?

A: Boxes comply with EN 60670, IEC 62208, have passed IPX6/IPX7 ingress protection, and meet UL94 V-0 flame retardant standards. They are also halogen-free, recyclable, and provide double insulation.

Q: How does the custom marking process work?

A: Custom marking is available upon request during ordering. Provide your specifications, and we will ensure the boxes are marked correctly before shipping.
