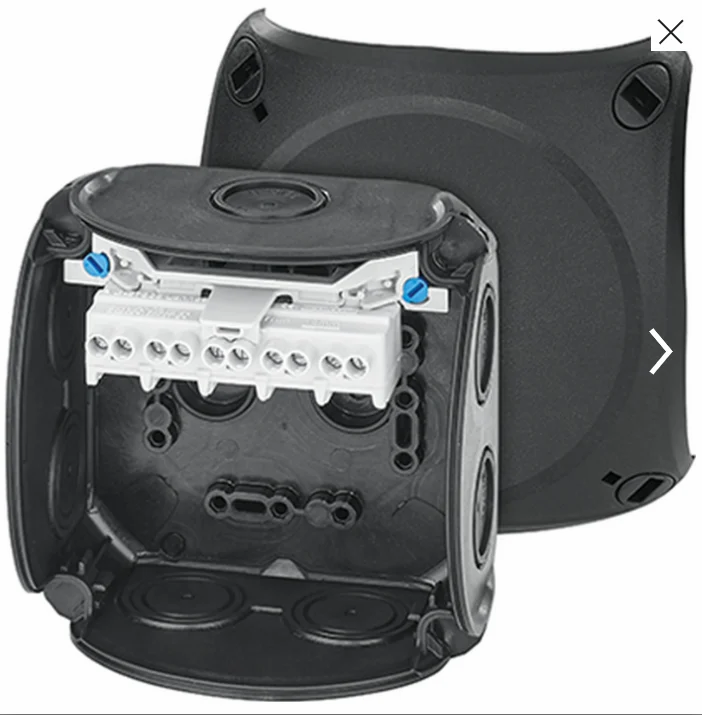

Cable Junction Boxes IP 66 (Black) with integrated membranes

Name: Cable Junction Boxes IP 66 (Black) with integrated membranes
Brand: Emson Power Engineers
Price: 1400.0 INR
Availability: InStock

Price 1400.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Black) with integrated membranes Specification

Feature
Integrated Membranes, High Protection, UV Resistance

Insulation Material
Polycarbonate / Synthetic Rubber (Membrane)

Shape
Rectangular

Surface Finish
Matte / Textured

Connector Type
Cable Gland Membrane

Humidity %
Up to 95% RH (non-condensing)

Operating Temperature
-25C to +60C

Mounting Type
Surface/Wall Mount

IP Rating
IP66

Overheating Protection
YES

Product Type
Cable Junction Box with Integrated Membranes

Application
Electrical Installations, Outdoor and Indoor Cable Connections

Protection Level
IP66

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 450V AC

Output Type
Terminal Block or Cable Entry

Color
Black

Dimension (L*W*H)
110 x 110 x 66 mm

Weight
5 Kilograms (kg)

Phase
PHASE 3

Input Voltage
Up to 450V AC

Size
110 mm

No Of Poles
Single/Multiple (Customizable)

Connection Type
Screw Connection / Push-in

Material
Polycarbonate (PC)

Membrane Material
Elastomer

Lid Type
Screw-fixed lid with seal

Number of Cable Entries
Up to 4 (with membrane flexibility)

Halogen Free
Yes

Ingress Protection
Dust tight, protected against powerful water jets

Cable Diameter Supported
5-14 mm

Type of Sealing
Integrated membrane & rubber seal

Impact Resistance
IK08

Flame Class
UL94 V-2

Cable Junction Boxes IP 66 (Black) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Black) with integrated membranes

Material	Polycarbonate
Shape	Square
Size	130X130X77
Ingress Protection	IP66
Mounting Type	Wall Mount
Cover Type	Screwed
With Terminal Block	No
Color	Black
Availability	In Stock

Ultimate Protection for Electrical Installations

Engineered with IP66-rated ingress protection, this cable junction box is impervious to dust and high-pressure water jets. The integrated membrane and rubber seal offer superior sealing, while UV resistance and a flame retardant build add extra layers of safety. Its sturdy, impact-resistant design makes it perfect for harsh environments, both indoors and outdoors.

Flexible and Easy Cable Management

Supporting cables from 5 to 14 mm and up to four entries, the box employs elastic membranes for hassle-free cable insertion. The rectangular, matte/textured enclosure is simple to mount on surfaces or walls, fitting seamlessly into various setup requirements. Multiple pole options and terminal block or cable entry outputs allow for streamlined, customizable connectivity.

Built for Reliability and Longevity

Manufactured from high-grade polycarbonate and halogen-free components, this junction box is lightweight yet tough. It functions effectively in humid conditions up to 95% RH and across temperatures from -25C to +60C. Whether used in industrial, commercial, or residential projects, it's engineered to deliver dependable performance over time.

FAQ's of Cable Junction Boxes IP 66 (Black) with integrated membranes:

Q: How do I install the IP66 cable junction box for optimal protection?

A: To ensure optimal ingress protection, mount the box securely on a flat wall or surface using the built-in fixtures. Insert cables through the integrated elastomer membranes, making sure each cable fits snugly within the 5-14 mm supported diameter range. Lock the screw-fixed lid with the included seal to prevent dust and water entry.

Q: What types of cables and connections can this junction box accommodate?

A: This junction box supports a wide range of cables with diameters between 5 and 14 mm. It is designed for both screw and push-in connection types and offers either terminal block outputs or simple cable entries, providing flexibility for various electrical installation needs.

Q: Where is it suitable to use this junction box?

A: The box is ideal for both indoor and outdoor electrical installations, especially where robust ingress and impact protection are essential. Its UV-resistant and flame-retardant properties make it suited for industrial, commercial, and residential applications in India and other regions with challenging conditions.

Q: What are the main benefits of using a box with integrated membranes?

A: Integrated membranes provide flexible and tool-free cable entry, decreasing installation time and ensuring a reliable seal around each cable. This design also supports easy customization for up to four cable entries, all while maintaining high levels of dust and water resistance (IP66 rating).

Q: When should I consider using this specific junction box model?

A: Opt for this junction box when you require high ingress protection, such as in environments exposed to water jets, dust, or physical impacts. Its robust construction and temperature/humidity tolerance make it suitable for new installations or upgrades in demanding settings.

Q: How does the box ensure electrical safety and prevent overheating?

A: Equipped with a flame-retardant UL94 V-2 rating and constructed from halogen-free, high-impact polycarbonate, the box minimizes fire risk. Integrated rubber and membrane seals, as well as overheating protection features, ensure continued safe operation even in elevated temperature conditions.

Q: What is the process for customizing the number of poles or outputs?

A: You can specify the required number of poles-single or multiple-based on your application's demands. Terminal block or cable entry outputs are available, and the robust design allows for easy adaptation to custom wiring configurations by electrical professionals or during on-site installations.
