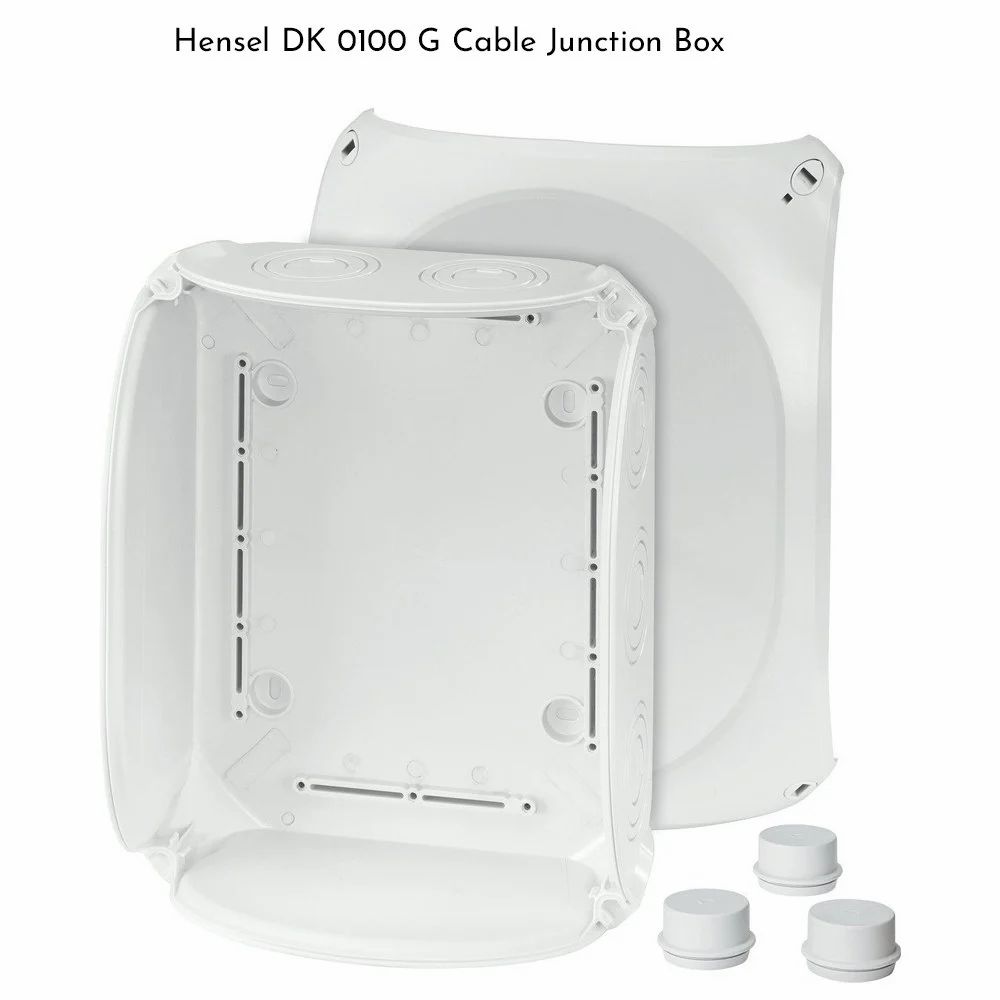

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Name: Cable Junction Boxes IP 66 (Grey) with integrated membranes
Brand: Emson Power Engineers
Price: 430.0 INR
Availability: InStock

Price 430.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Grey) with integrated membranes Specification

Surface Finish
Matte/Textured

IP Rating
IP66

Connector Type
Multiple cable entry membranes

Mounting Type
Wall/Surface Mount

Shape
Rectangular/Square

Feature
Integrated Membranes, UV Resistant, Weatherproof, Easy Installation

Humidity %
Max 95% RH (non-condensing)

Operating Temperature
-25C to +70C

Insulation Material
Polycarbonate

Overheating Protection
No (Passive Enclosure)

Product Type
Cable Junction Box with Integrated Membranes

Application
Electrical wire termination, cable management, indoor and outdoor installations

Protection Level
IP66

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 400V AC

Output Type
Cable Output via Membrane

Color
Grey (RAL 7035)

Dimension (L*W*H)
110 x 110 x 50 mm (Other sizes available)

Weight
4 Kilograms (kg)

Input Voltage
Up to 400V AC

Phase
Single

Size
110 x 110 x 50 mm / Custom sizes

Material
High Impact Polycarbonate (Halogen Free)

Connection Type
Screw connection/Push-fit (according to variant)

No Of Poles
Single/Multiple (as per variant)

Standards Complied
EN 60670, IEC 60529, RoHS compliant

Service Life
>10 years

Flammability Rating
UL 94 V-2

Halogen Free
Yes

Cable Diameter Range
5 mm to 13 mm per entry

Gasket Type
Integrated foam gasket in lid

Membrane Material
Thermoplastic Elastomer (TPE)

Number of Membrane Entries
8

Cover Material
Same as box, screw-fitted

Membrane Cutout Sizes
6 x 20 mm

Resistance
Impact resistant up to IK08, UV resistant

Closure Type
Screw locking lid

Reusable
Yes

Environment Suitability
Indoor/Outdoor

Ingress Protection
Dust tight and protected against powerful water jets

Cable Junction Boxes IP 66 (Grey) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Grey) with integrated membranes

Material	Polypropylene
IP Rating	IP66
Brand	Hensel
Dimensions	93 x 93 x 62 mm
Model Name/Number	DK 0200 G
Rated Insulation Voltage	1000 V AC
Mounting Width	74 mm
Weight	0.099 Kg
Ambient Temperature	-25 to 40 Degree C
Availability	In Stock

Superior Environmental Protection

With an IP66 rating and robust polycarbonate body, these junction boxes offer complete protection against dust, powerful water jets, and UV exposure. Their weatherproof construction makes them ideal for outdoor installations as well as demanding indoor environments, ensuring cable terminations remain safe and secure in variable conditions.

Fast and Flexible Installation

The integrated membranes simplify cable entry, requiring no additional tools or glands and reducing installation time. The combination of screw-fitting cover and push-fit or screw connection options (depending on variant) provide flexibility for efficient installation and maintenance. The foam gasket ensures a tight seal every time.

Durable and Safe Design

These junction boxes are built to last for over 10 years, featuring high-impact resistance (IK08) and a flammability rating of UL 94 V-2. The halogen-free, non-corrosive materials make them a safe, long-lasting solution for both commercial and industrial cable management, even in high-humidity settings (up to 95% RH).

FAQ's of Cable Junction Boxes IP 66 (Grey) with integrated membranes:

Q: How do I install cables into the IP66 cable junction box's integrated membranes?

A: Cables can be simply pushed through the thermoplastic elastomer (TPE) membranes without additional tools. The membrane cutouts (6 x 20 mm) accommodate cable diameters from 5 mm to 13 mm per entry, ensuring a secure and weatherproof seal for each cable.

Q: What environments are these junction boxes suitable for?

A: These IP66 junction boxes are designed for both indoor and outdoor environments. They are dust-tight, protected against powerful water jets, UV resistant, and can withstand operating temperatures from -25C to +70C, making them ideal for various climatic conditions.

Q: What benefits do the integrated membranes offer over traditional gland systems?

A: Integrated membranes provide faster, tool-free cable entry, saving installation time and costs. They also ensure a watertight, dustproof seal for each cable, simplifying maintenance and enhancing reliability compared to individual cable glands.

Q: What standards and certifications do these junction boxes comply with?

A: The boxes meet EN 60670, IEC 60529, and RoHS requirements and have a flammability rating of UL 94 V-2. This ensures high safety, reliability, and environmental compliance for industrial, commercial, and residential applications.

Q: Can the membrane entries be reused if I change the cable configuration?

A: Yes, the membrane entries are designed to be reused, offering flexibility for future changes in cable arrangements without compromising the ingress protection or integrity of the enclosure.

Q: Where are these cable junction boxes typically installed?

A: They are suitable for wall or surface mounting in electrical wire termination, cable management, and distribution systems. Common installations include industrial plants, commercial buildings, outdoor lighting circuits, and telecom setups.

Q: What is the process for ensuring a secure and IP66-rated seal?

A: Ensure cables are inserted through the appropriate membrane entry, and that the integrated foam gasket is intact. Firmly close the cover using the screw locking lid to create a tight seal, maintaining the IP66 rating and protective qualities of the junction box.
