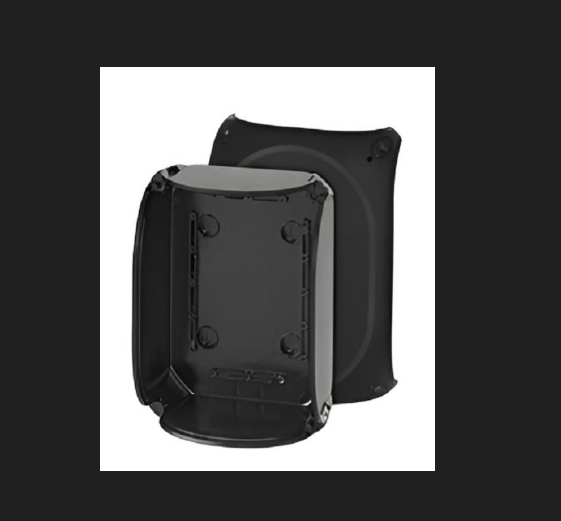

Cable Junction Boxes IP 66/67/69 (Black)

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66/67/69 (Black)

Name: Cable Junction Boxes IP 66/67/69 (Black)
Brand: Emson Power Engineers
Price: 4340.0 INR
Availability: InStock

Price 4340.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66/67/69 (Black) Specification

Mounting Type
Wall Mount / Surface Mount

Efficiency
100% Passive Conductor Junction

Feature
Dustproof, Waterproof, UV Resistant, Flame Retardant

Operating Temperature
-25C to +80C

Connector Type
M20/M25 Cable Glands, Screwed Terminal Blocks

Humidity %
Up to 95% RH (Non-condensing)

Insulation Material
Polycarbonate / ABS

Power Factor
N/A (Passive Device)

Surface Finish
Matte / Textured Black Finish

IP Rating
IP66 / IP67 / IP69

Shape
Rectangular / Square

Overheating Protection
Body designed for heat dissipation

Product Type
Cable Junction Box

Application
Outdoor/Indoor Cable Management and Connection

Protection Level
IP66/IP67/IP69

Frequency (MHz)
50/60 Hz

Rated Voltage
Max 450V AC

Energy Consumption
Negligible (passive device)

Output Type
Cable Output / Through Connectors

Color
Black

Dimension (L*W*H)
Varies by model (Typical: 110x110x50 mm, 150x110x70 mm, etc.)

Weight
5 Kilograms (kg)

Size
225X295X122

Phase
PHASE 3

Input Voltage
Max 450V AC

Connection Type
Screw Terminal / Clamp Type

Material
High-impact ABS/Polycarbonate

No Of Poles
Single and Multi-Pole options available

Lid Fixing Type
Stainless Steel Screws

Sealing Gasket
Silicone (pre-installed)

Impact Resistance
IK08

Cable Entry Options
Knockouts for flexible cable gland insertion

Flammability Rating
UL94 V-0

UV Resistance
Yes, suitable for outdoor installation

Cable Junction Boxes IP 66/67/69 (Black) Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66/67/69 (Black)

Experience wondrous protection with our in-demand Cable Junction Boxes IP66/67/69 (Black). Designed in a radiant, matte black finish, these pristine enclosures offer personalised cable management for both indoor and outdoor applications. Each box features stainless steel screws, knockouts for flexible cable gland insertion, and a pre-installed silicone gasket for flawless sealing-even in harsh environments. Crafted from high-impact ABS/polycarbonate, these units deliver robust dustproof, waterproof, and UV-resistant performance. Perfect for clearance stock or your next major installation, their single and multi-pole options meet demanding standards for safety, flammability (UL94 V-0), and impact resistance (IK08).

Ideal Application and Features

Cable Junction Boxes IP66/67/69 (Black) excel in both indoor and outdoor environments, effectively managing and connecting cables for power distribution, industrial machinery, and telecommunications. These boxes are engineered with high-impact ABS/polycarbonate for durability and boast features such as silicone gaskets, IK08 impact resistance, UV resistance, and flexible entry options. Their radiant, matte finish ensures seamless site integration, while their pristine design guarantees robust performance at critical installation points.

Payment, Certification, and Export Details

We offer convenient, secure exchange and payment options, ensuring a smooth transaction for our valued clients. Our Cable Junction Boxes adhere to reputed domestic and international certifications for quality and safety, providing peace of mind to buyers. Serving the domestic market and major global destinations, we cater to manufacturers, suppliers, and distributors. Our transparent charge structure and prompt service make us a trusted trader and service provider throughout India and in leading export markets.

FAQ's of Cable Junction Boxes IP 66/67/69 (Black):

Q: How do I select the appropriate Cable Junction Box for my installation needs?

A: Choose the right junction box by considering your site's environmental conditions, required protection level (IP66/67/69), cable entry options, and the number of connection poles needed. Our team can guide you to a personalised solution.

Q: What are the main advantages of using these IP66/67/69 Cable Junction Boxes outdoors?

A: These boxes are dustproof, waterproof, UV resistant, and impact resistant (IK08), ensuring reliable cable connections in pristine condition, even in harsh outdoor environments or industrial sites.

Q: Where can these Cable Junction Boxes be commonly installed?

A: They are suitable for outdoor and indoor applications, commonly used in power distribution, industrial automation, telecommunications, and renewable energy installations across commercial and residential settings.

Q: What is the process for installing and sealing the box to protect cables?

A: Installation is simple: secure the box with stainless steel screws, insert cables using the knockout options and cable glands, and benefit from the pre-installed silicone gasket for a flawless, watertight seal.

Q: When should I consider using single-pole versus multi-pole Cable Junction Boxes?

A: Use single-pole boxes for straightforward cable joins and multi-pole boxes for complex connections, such as in three-phase systems or where multiple circuits need safe separation in a single enclosure.

Q: How does your company handle product exchanges or after-sales support?

A: We provide prompt exchange and after-sales support, ensuring client satisfaction. All products come with quality assurance and are eligible for service or replacement as per our policy.
