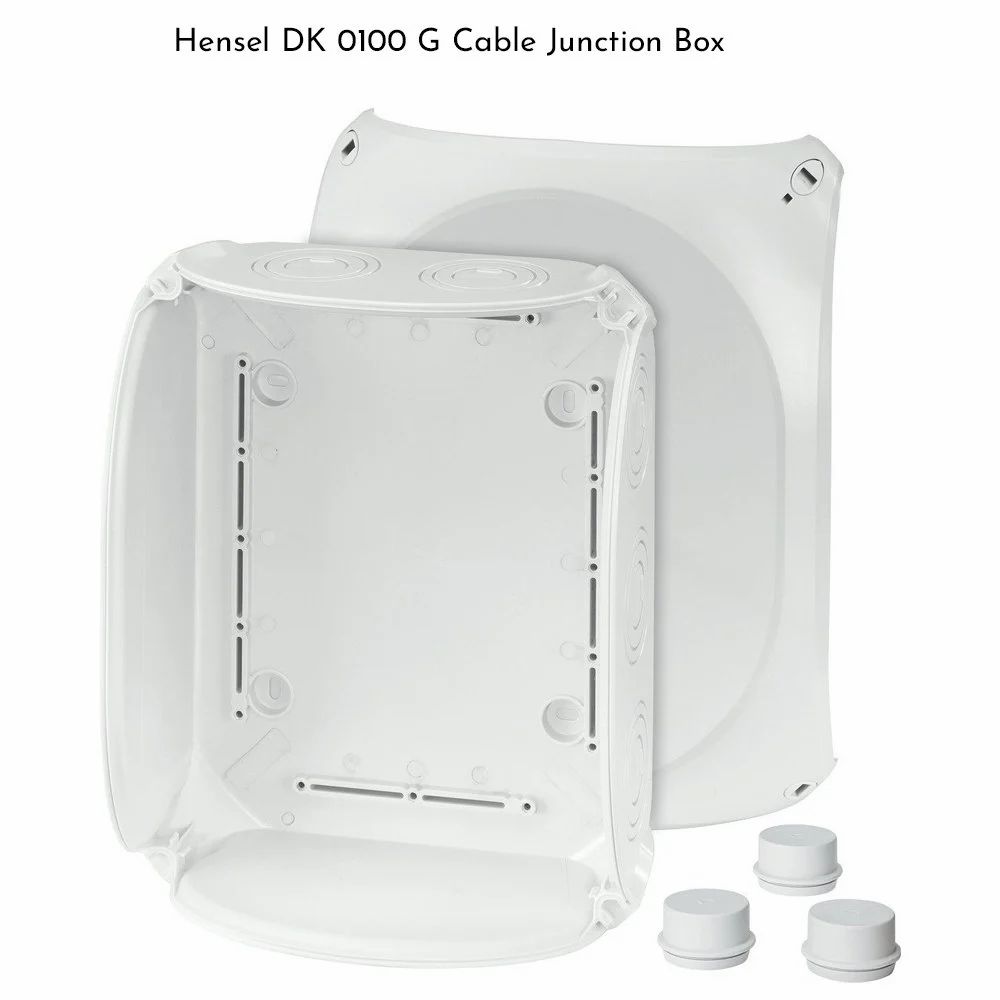

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Name: Cable Junction Boxes IP 66 (Grey) with integrated membranes
Brand: Emson Power Engineers
Price: 660.0 INR
Availability: InStock

Price 660.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Grey) with integrated membranes Specification

Shape
Rectangular/Square

Mounting Type
Wall/Surface mounting

Efficiency
N/A (Passive Component)

Overheating Protection
Yes (by design - sealed enclosure)

IP Rating
IP66

Surface Finish
Matte/UV-resistant coating

Insulation Material
Self-extinguishing thermoplastic

Connector Type
Membrane entry for cable, internal terminal blocks optional

Feature
Integrated self-sealing membranes, weatherproof, tool-less installation

Operating Temperature
-25C to +85C

Humidity %
Up to 95% RH (non-condensing)

Power Factor
N/A (Non-powered)

Product Type
Cable Junction Box with Integrated Membranes

Application
Electrical cable connections, indoor/outdoor cable management

Protection Level
Double insulated

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 450 V AC

Energy Consumption
N/A (Passive Equipment)

Output Type
Cable connection interface

Color
Grey

Dimension (L*W*H)
Varies by model; e.g., 85x85x50mm, 100x100x60mm

Weight
5 Kilograms (kg)

Size
Multiple sizes available

Input Voltage
Up to 450 V AC

Phase
Single Phase/Three Phase compatible

No Of Poles
1-3

Connection Type
Screw terminal/ Push-in (Membrane Entry)

Material
ABS/Polycarbonate (PC)

Cover Fixation
Snap-on or screw-fastened lid

Flame Retardant Class
UL94 V-2 or better

Lockable Option
Available on select models

Halogen Free
Yes

Ingress Protection Details
Dust-tight and protected against high-pressure water jets

Standards Compliance
EN 60529, IEC 60670

Cable Diameter Range
8-22 mm

RoHS Compliance
Yes

UV Resistance
Yes (suitable for outdoor use)

Accessories Included
Mounting screws, wall plugs (where applicable)

Number of Cable Entries
4 to 12 integrated membranes (varies by model)

Sealing Material
Silicone/Polymer membrane

Impact Resistance
IK08 or higher

Cable Junction Boxes IP 66 (Grey) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Grey) with integrated membranes

Material	Polycarbonate
Size	104X104X70
Ingress Protection	IP66/67/69
Shape	Square
Cover Type	Screwed
Mounting Type	Wall Mount
With Terminal Block	No
Color	White
Availability	In Stock

Durable & Weatherproof

Engineered with UV-resistant ABS or polycarbonate, these junction boxes provide long-lasting protection outdoors. The IP66 rating ensures total dust-tight sealing and resistance to high-pressure water jets, making them reliable for various challenging environments.

Easy Installation & Versatile Use

Tool-less installation is achieved using integrated self-sealing membranes, compatible with a cable diameter range of 8-22 mm. Snap-on or screw-fastened lids, along with wall/surface mounting options, simplify application in residential, commercial, or industrial settings.

Advanced Safety Features

Flame-resistant (UL94 V-2 or better) and double-insulated, these junction boxes offer superior protection against electrical hazards. They are halogen free, RoHS compliant, and equipped with internal features to prevent overheating, ensuring safe cable management.

FAQ's of Cable Junction Boxes IP 66 (Grey) with integrated membranes:

Q: How do I install a Cable Junction Box IP66 with integrated membranes?

A: Installation is straightforward: secure the box using the included mounting screws and wall plugs, then insert cables through the self-sealing membranes. The snap-on or screw-fastened lid completes the setup, providing a secure and weatherproof enclosure.

Q: What types of cables and diameters are supported by these junction boxes?

A: These boxes are suitable for cable diameters ranging from 8 mm to 22 mm. They can accommodate single-phase and three-phase cables with 1 to 3 poles, thanks to the flexible membrane entries and optional internal terminal blocks.

Q: When should I choose an IP66 grey junction box with UV resistance?

A: Select these junction boxes when you need durable and weather-resistant protection for electrical connections exposed to outdoor conditions, such as in industrial sites, construction areas, or residential exteriors.

Q: Where can these junction boxes be mounted, and what mounting options are available?

A: The junction boxes can be mounted on walls or flat surfaces using the included mounting accessories. They are suitable for both indoor and outdoor cable management applications.

Q: What safety standards and certifications do these cable junction boxes comply with?

A: These junction boxes comply with EN 60529, IEC 60670, and RoHS standards. They are flame-retardant per UL94 V-2 or better, halogen free, UV-resistant, and offer a double-insulated design for enhanced safety.

Q: How does the box prevent entry of dust and water?

A: The IP66 rating ensures the box is totally dust-tight and protected against powerful water jets. The integrated silicone or polymer self-sealing membranes and sealed lid design maintain a secure barrier against environmental ingress.

Q: What are the main benefits of using these junction boxes for cable management?

A: Key benefits include rapid installation, high-level protection against environmental hazards, compatibility with multiple cable sizes, and compliance with stringent safety standards. These features make them ideal for efficient and reliable cable management indoors or outdoors.
