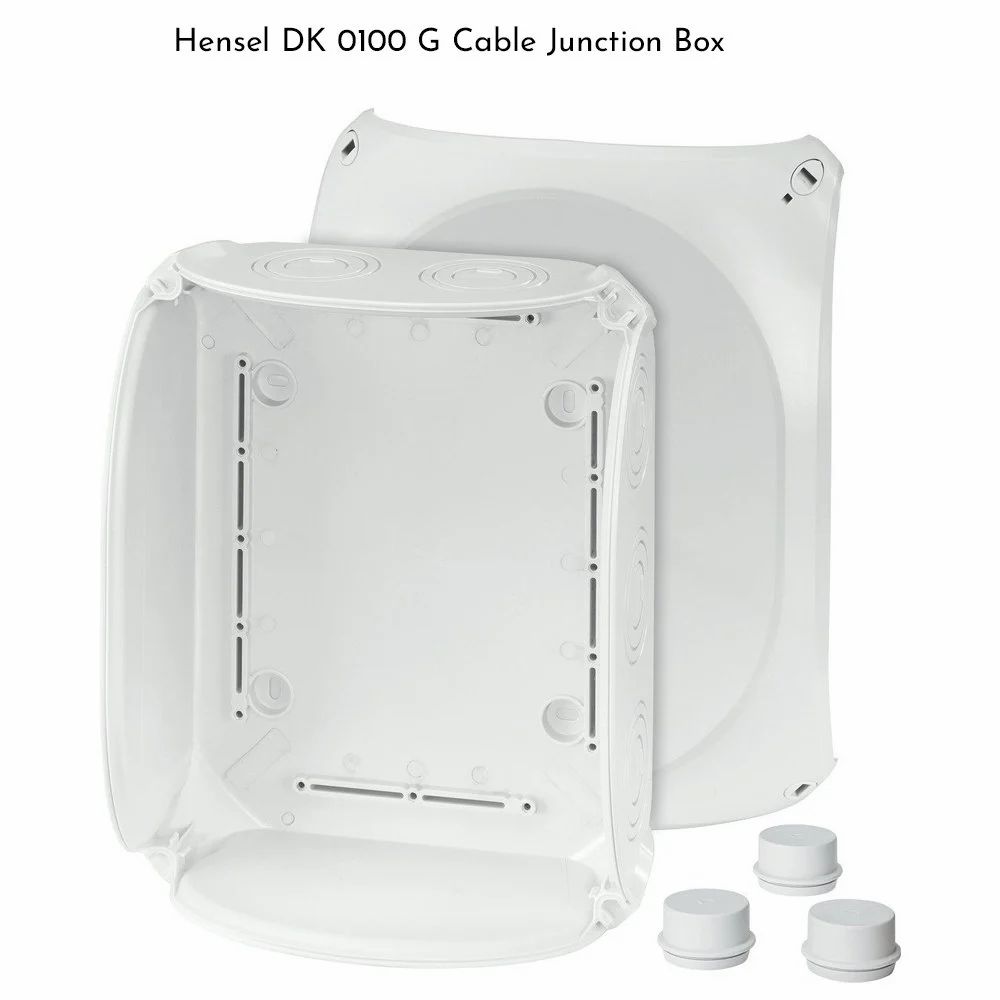

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Price 540.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Grey) with integrated membranes Specification

Mounting Type
Surface Mount/Wall Mount

Insulation Material
Polypropylene (Self-extinguishing)

Connector Type
Cable Gland Integrated Membranes

Surface Finish
Matte Textured

Overheating Protection
Material Resistant to Melting/Deformation

IP Rating
IP66

Efficiency
N/A (Passive Device)

Operating Temperature
-25C to +60C

Feature
Integrated Membrane Glands, Tool-free Cable Entry, Weatherproof

Shape
Rectangular

Humidity %
5% - 95% Non-Condensing

Product Type
Cable Junction Box with Integrated Membranes

Application
Electrical Cable Management, Indoor/Outdoor Installations

Protection Level
Double Insulated

Frequency (MHz)
50-60 Hz

Rated Voltage
450 V AC

Energy Consumption
N/A (Passive Device)

Output Type
Multiple Cable Exits via Membrane Glands

Color
Grey

Dimension (L*W*H)
110 x 110 x 66 mm

Weight
5 Kilograms (kg)

Size
110 mm (L) x 110 mm (W) x 66 mm (H)

Phase
Single / Three Phase Compatible

Input Voltage
450 V Max

Connection Type
Push-through Membrane, Screw Terminals compatible

No Of Poles
4

Material
High-impact Grey Polypropylene (PP)

UV Resistance
Yes, suitable for outdoor use

Sealing Type
Self-sealing membranes

Flammability Rating
UL94 V-2

Rohs Compliance
Yes

Standards
EN 60670-22, IEC 60529

Reusability
Cover and glands reusable without loss of protection

Cable Entry Points
8 integrated membrane entry points (4 sides, 4 bottom)

Halogen Free
Yes

Max Current Rating
32A

Cable Diameter Compatibility
4 mm to 18 mm

Cover Fastening
4-point captive screw

Mechanical Impact Resistance
IK07

Cable Junction Boxes IP 66 (Grey) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Grey) with integrated membranes

Material	Polypropylene
IP Rating	IP66
Brand	Hensel
Dimensions	104 x 104 x 70 mm
Rated Insulation Voltage	1000 V AC
Mounting Width	83 mm
Weight	0.122 Kg
Ambient Temperature	-25 to 40 Degree C
Availability	In Stock

Robust Outdoor and Indoor Cable Management

Engineered with IP66 protection and UV-resistant polypropylene, this junction box is ideal for harsh outdoor and demanding indoor environments. The double-insulated design withstands high humidity, wide temperature ranges, and physical impacts, safeguarding your connections against moisture, dust, and accidental contact.

Tool-Free Cable Entry with Integrated Membrane Glands

Enjoy the convenience of 8 integrated membrane entry points located on all sides and the bottom. Push-through, self-sealing membranes accommodate cable diameters from 4 mm to 18 mm, simplifying installation and ensuring a reliable seal without the need for extra tools or accessories.

Reliability, Safety, and Compliance in One Solution

Built to meet UL94 V-2 flammability, RoHS, EN 60670-22, and IEC 60529 standards, this box offers peace of mind in critical electrical setups. Its halogen-free, recyclable polypropylene construction and reusable cover and glands enhance both safety and sustainability in every installation.

FAQ's of Cable Junction Boxes IP 66 (Grey) with integrated membranes:

Q: How does the integrated membrane entry system simplify cable installation?

A: The integrated self-sealing membrane entry points allow you to push cables directly through without cutting or extra tools. This tool-free process streamlines installation, speeds up setup, and ensures a tight, weatherproof seal around cables ranging from 4 mm to 18 mm in diameter.

Q: What makes this cable junction box suitable for outdoor use?

A: The box features an IP66 rating, UV resistance, durable high-impact polypropylene construction, and a double-insulated design. These features ensure superior protection against dust, water, sunlight, and physical impacts, making it ideal for exposed outdoor environments.

Q: When should this junction box be selected over other types?

A: Choose this model when you require robust weatherproofing, tool-free cable management, and compliance with stringent safety standards for either indoor or outdoor electrical installations involving up to 32A current at 450V AC. It is especially recommended where quick, secure, and reusable cable entry is a priority.

Q: Where is the best place to install this cable junction box?

A: It is well-suited for surface or wall mounting in places such as exterior walls, industrial sites, rooftop installations, garden lighting systems, or within commercial and residential electrical panels, thanks to its compact size and rugged weatherproof properties.

Q: What is the process for reusing the cover and gland membranes?

A: Both the cover and the membrane entry points are designed for reuse. You can remove and reseal cables multiple times without degrading the IP66 protection or mechanical integrity, enabling flexible upgrades or reconfiguration without replacing the box.

Q: What electrical safety standards does the product meet?

A: This junction box is certified to comply with EN 60670-22 and IEC 60529, with a UL94 V-2 flammability rating and RoHS compliance, ensuring it meets international safety, fire-resistance, and environmental standards.

Q: What are the main benefits of using a halogen-free, self-extinguishing material?

A: The halogen-free, self-extinguishing polypropylene minimizes harmful emissions in case of fire, enhances user and environmental safety, and offers resistance to melting or deformation under overheating scenarios, ensuring reliable long-term operation.
