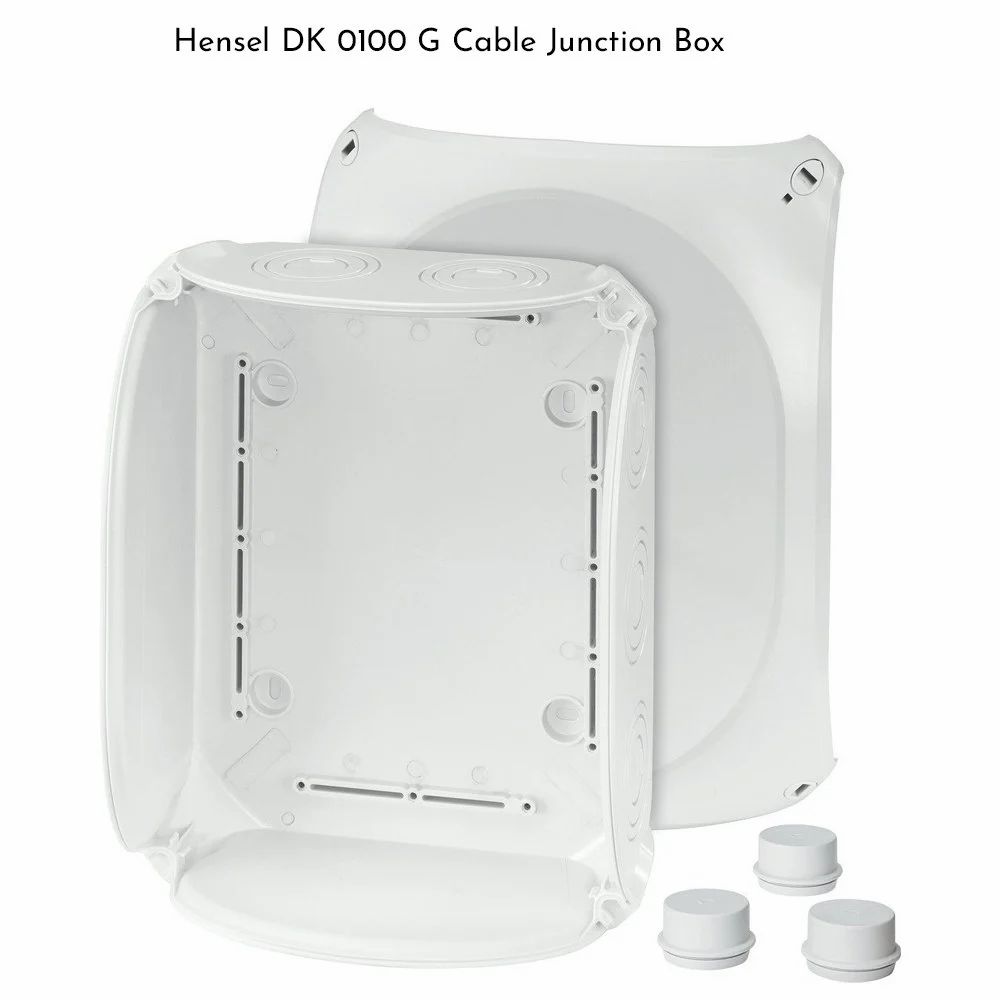

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Name: Cable Junction Boxes IP 66 (Grey) with integrated membranes
Brand: Emson Power Engineers
Price: 3295.0 INR
Availability: InStock

Price 3295.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Grey) with integrated membranes Specification

Efficiency
100% passive (zero energy loss)

Connector Type
Membrane, Screw Terminal Compatible

Operating Temperature
-25C to +40C

Surface Finish
Matte/Grained

Overheating Protection
Yes (Thermal Insulation Provided)

Insulation Material
Polypropylene (PP)

Feature
Integrated Cable Membranes, Weatherproof, Dustproof

Shape
Rectangular

Mounting Type
Surface/Wall Mount

Humidity %
Max 95% RH

IP Rating
IP 66

Power Factor
N/A (Not Applicable)

Product Type
Cable Junction Box with Integrated Membrane

Application
Electrical Wiring, Cable Termination, Distribution Network

Protection Level
IP 66

Frequency (MHz)
50-60

Rated Voltage
Up to 400V AC

Energy Consumption
N/A (Passive Product)

Output Type
Cable Routing/Termination

Color
Grey

Dimension (L*W*H)
110 mm x 110 mm x 66 mm

Weight
5 Kilograms (kg)

Size
Standard, 110mm

Phase
PHASE 3

Input Voltage
Up to 400V AC

No Of Poles
Single

Connection Type
Membrane Cable Entry (Tool-Free Installation)

Material
High Grade Polypropylene (PP)

Gasket Type
Sealed Lid with Integrated Gasket

UV Resistance
Yes

Lid Fixing Method
4 captive stainless steel screws

Sealing Material
Silicone-Free Membrane

Cable Entry Quantity
Up to 8 integrated membrane entries

Packaging
Individually boxed

Customization
Possible on request (Logo, Size)

Ingress Protection Standard
EN 60529

Service Life
>10 Years

Halogen Free
Yes

RoHS Compliant
Yes

Flammability Class
UL94 V-2

Min/Max Cable Dia
5 mm to 21 mm

Impact Resistance
IK08 (Protected against 5J impact)

Cable Junction Boxes IP 66 (Grey) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Grey) with integrated membranes

Material	Polycarbonate
Shape	Square
Size	205X255X112
Ingress Protection	IP66
Mounting Type	Wall Mount
Cover Type	Screwed
With Terminal Block	No
Color	White
Availability	In Stock

Superior Weatherproof Protection

Engineered for harsh conditions, this cable junction box features an IP66 rating, robust impact resistance (IK08), UV resistance, and a sealed lid with an integrated gasket. It is specifically designed for outdoor and industrial environments needing secure, dustproof, and weatherproof cable management solutions.

Easy, Tool-Free Installation

The integrated cable membranes support up to eight entries with an effortless, tool-free process. Simply press your cable through the pre-molded membrane for rapid, secure installation, saving both time and labor. The innovative design is compatible with cables from 5 mm to 21 mm in diameter.

Certified Quality and Durability

Crafted from high-grade polypropylene, these junction boxes meet EN 60529 (IP 66) and UL94 V-2 flammability standards, ensuring safety and compliance. The silicone-free membranes, captive stainless steel screws, and halogen-free construction contribute to a service life exceeding 10 years, perfectly suited for a wide range of electrical distribution needs.

FAQ's of Cable Junction Boxes IP 66 (Grey) with integrated membranes:

Q: How do I install cables into the integrated membrane entries of the IP66 junction box?

A: Cables can be quickly installed by simply pushing them through the designated membrane entries without the need for special tools. The membranes are designed to accommodate cable diameters ranging from 5 mm to 21 mm, ensuring a secure and easy fit.

Q: What types of environments is this cable junction box suitable for?

A: Thanks to its IP66 ingress protection, UV resistance, and robust IK08 impact resistance, this junction box is ideal for both indoor and outdoor use, including industrial, commercial, and exposed environments where weatherproofing and dustproofing are essential.

Q: When should I consider using a junction box with an IP66 rating?

A: You should choose an IP66-rated junction box when your application requires complete protection against dust, heavy rain, splashes, or direct water jets, such as in outdoor electrical distribution, cable routing, or industrial wiring setups.

Q: Where can this junction box be mounted and what is the recommended process?

A: This product is designed for surface or wall mounting. It comes with captive stainless steel screws for the lid and clear mounting holes, allowing for a straightforward and secure installation using conventional hand tools.

Q: What are the benefits of the sealed lid with an integrated gasket?

A: The sealed lid, combined with a high-quality gasket, ensures complete moisture and dust protection, preventing ingress and maintaining internal component integrity over the box's long service life, even in harsh or humid conditions.

Q: Is it possible to customize the box with our company logo or different sizes?

A: Yes, customization options are available upon request. You can request logo printing or adjust size specifications to align the product with your company's branding and application needs.

Q: What compliance and safety standards does this cable junction box meet?

A: The box complies with EN 60529 for ingress protection, UL94 V-2 flammability, RoHS directives, and is manufactured from halogen-free, high-grade polypropylene. These ratings ensure safe operation in demanding environments.
