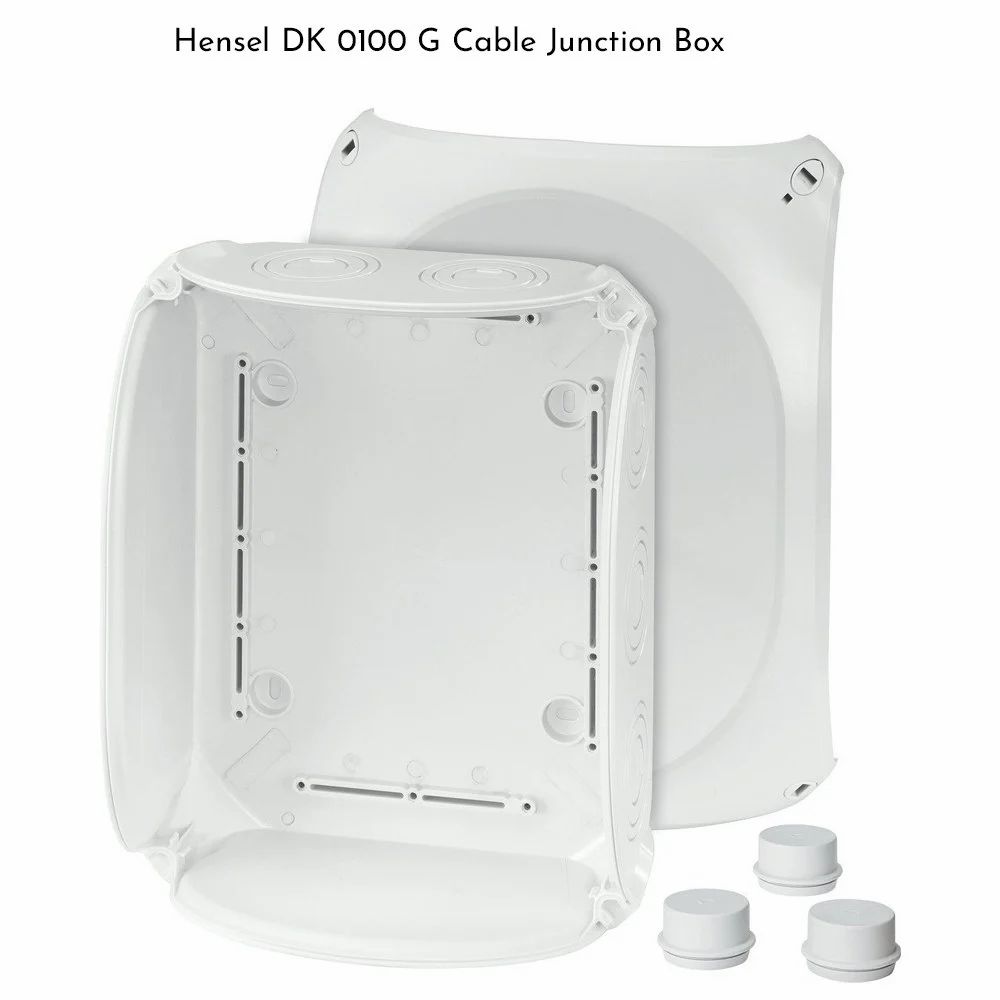

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Name: Cable Junction Boxes IP 66 (Grey) with integrated membranes
Brand: Emson Power Engineers
Price: 14860.0 INR
Availability: InStock

Price 14860.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Grey) with integrated membranes Specification

Connector Type
Glandless Membrane

Efficiency
100% Passive Component

Shape
Rectangular

Mounting Type
Surface / Wall Mount

Operating Temperature
-25C to +70C

Insulation Material
Polypropylene / Thermoplastic

IP Rating
IP66

Feature
Integrated Flexible Membranes for Easy Cable Insertion, High Weather/UV Resistance

Surface Finish
Textured Matte

Humidity %
Up to 95% RH (Non-condensing)

Overheating Protection
High Thermal Stability

Product Type
Cable Junction Box with Integrated Membranes

Application
Electrical Installations, Wire Joints, Outdoor and Indoor Connections

Protection Level
Dust Tight and Waterproof

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 400 V AC

Energy Consumption
Passive (Non-consuming)

Output Type
Cable Entry/Exit

Color
Grey

Dimension (L*W*H)
110 x 110 x 66 mm

Weight
5 Kilograms (kg)

Phase
PHASE 3

Input Voltage
Up to 400 V AC

Size
Standard / Custom Sizes Available

No Of Poles
Multi-pole (Customizable)

Material
High Impact Thermoplastic (Polypropylene)

Connection Type
Screw Terminal / Membrane Entry

Halogen Free
Yes

Cable Entry Points
4-8 Flexible Membrane Inlets

Cover Locking System
Snap-fit / Screw-on Lid

Self-extinguishing
Yes

UV Resistance
Yes, Suitable for Outdoor Use

Complies with Standards
IEC 60670-1, EN 60529

Flame Retardancy
UL 94 V-2

Corrosion Resistance
Yes

Reusable
Yes

Base Knockouts
None (Membrane Entry Only)

Cable Junction Boxes IP 66 (Grey) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Grey) with integrated membranes

Material	Poly Carbonate
IP Rating	IP66
Brand	Hensel
Dimensions	355 x 255 x 122 mm
Model Name/Number	DK 5054 G
Rated Insulation Voltage	690 V AC
Rated Current	150 A
Weight	2.134 Kg
Tightening Torque For Terminal	12 Nm
Availability	In Stock

Robust Weatherproof Protection

These cable junction boxes offer IP66-rated protection, making them dust tight and waterproof, ideal for outdoor and industrial environments. Their high UV and corrosion resistance, combined with a textured matte surface finish, ensure consistent durability even under harsh weather conditions. Mount with confidence on any wall or surface for lasting cable safety.

Simplified Cable Management

Thanks to integrated flexible membrane inlets, you can easily insert cables without additional tools or glands. The user-friendly design supports both snap-fit and screw-on lids, allowing for quick access and maintenance. Flexible entry points, combined with halogen-free, flame-retardant materials, deliver convenience, safety, and compliance with leading standards.

FAQ's of Cable Junction Boxes IP 66 (Grey) with integrated membranes:

Q: How are cables inserted into the IP66 junction box with integrated membranes?

A: Cables are inserted simply by pushing them through the flexible membrane inlets. This design allows for a tool-free, glandless process, providing a secure and dust-tight seal around each cable, which speeds up installation and minimizes risk of entry-point leaks.

Q: What benefits does the UL 94 V-2 flame retardancy offer for my installations?

A: UL 94 V-2 flame retardancy ensures that the box materials self-extinguish and resist catching fire, providing enhanced safety for electrical connections, particularly in environments with stringent fire safety requirements.

Q: When should I use these junction boxes for my electrical projects?

A: These boxes are ideal for both new installations and retrofitting existing wiring, especially when reliable environmental protection, easy cable management, and compliance with IEC 60670-1 and EN 60529 standards are necessary.

Q: Where can these junction boxes be installed?

A: You can install these IP66 boxes on any flat surface, indoors or outdoors, thanks to their robust weather, UV, and corrosion resistance. They are well-suited for industrial, commercial, and residential settings requiring high protection and durability.

Q: What process should be followed for maintaining or reusing the box?

A: To maintain or reuse the box, simply unfasten the snap-fit or screw-on lid to access the internal connections. The durable polypropylene construction and reusable flexible entry membranes make it easy to inspect or reconfigure wiring as needed.

Q: What are the key advantages of choosing this junction box over traditional models?

A: Key benefits include easy, glandless cable entry; superior weather, dust, and waterproof resistance (IP66); halogen-free, flame retardant, and UV-resistant materials; compliance with international standards; and a highly durable, reusable design for long-term use and safety.
