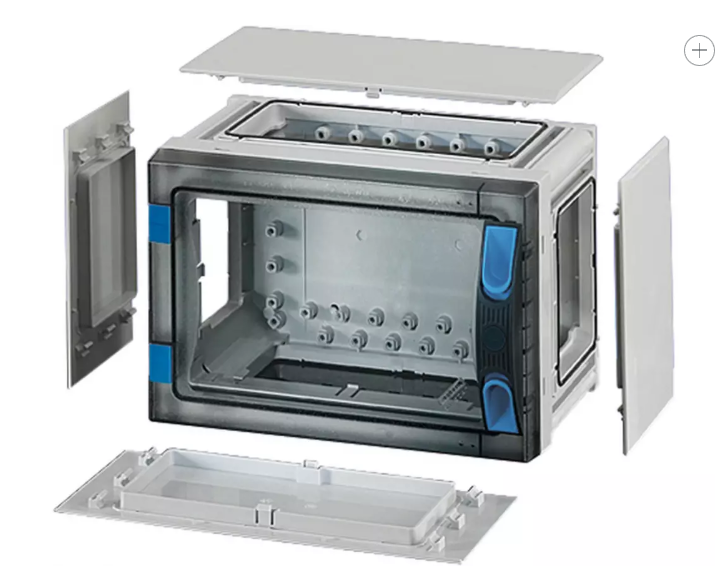

Enystar Circuit Breaker Boxes

Name: Enystar Circuit Breaker Boxes
Brand: Emson Power Engineers
Price: 24450.0 INR
Availability: InStock

Price 24450.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Enystar Circuit Breaker Boxes Specification

Humidity %
95%

Mounting Type
Wall Mount

Connector Type
Copper Lug

IP Rating
IP65

Feature
Weatherproof, Flame Retardant, Corrosion Resistant

Insulation Material
Thermoplastic

Shape
Rectangular

Operating Temperature
-25C to 60C

Surface Finish
Matte

Power Factor
0.95

Overheating Protection
YES

Efficiency
Up to 98%

Product Type
Circuit Breaker Box

Application
Electrical Distribution, Control Panels

Protection Level
High

Frequency (MHz)
50/60 Hz

Rated Voltage
415 V

Energy Consumption
Low

Output Type
AC Output

Color
Grey

Dimension (L*W*H)
300 x 200 x 120 mm

Weight
4 Kilograms (kg)

Phase
PHASE 3

Input Voltage
220 V / 415 V

Size
Standard

No Of Poles
4 Poles

Material
Polycarbonate

Connection Type
Screw Terminal

Locking Option
Padlock Provision

Internal Arrangement
Adjustable DIN Rail

Conformity Standard
IEC 61439-3

Cable Entry
Knockout Provided

Earth Terminal
Provided

Busbar Material
Tin-Plated Copper

Door Type
Transparent Cover

Enystar Circuit Breaker Boxes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Enystar Circuit Breaker Boxes

Combinable enclosure system with door for the assembly of distribution boards up to 250 A to be opperated by ordinary persons (DBO) in accordance with IEC 61439-3 for surface-mounting. Enclosures are suitable for the outdoor installation - harsh environment and / or outdoor, however the climatic influences and effects on the equipment are to be considered. Bottom parts and doors are made from impact-resistant polycarbonate, halogen- and silicone-free, colour RAL 7035. All enclosures with doors, which are lockable and sealable. Operation of device behind the doors. Burning behavior in accordance with IEC 60695-2-11 Glow wire test + 960 C. Protective measure: protective insulation (protection class II). Make: Hensel ENYSTAR.

Superior Protection and Versatile Design

Built to IEC 61439-3 standards, the Enystar Circuit Breaker Box incorporates high-grade insulation materials and a weatherproof polycarbonate enclosure. Its IP65 rating means it withstands dust, moisture, and harsh climates, making it ideal for various indoor and outdoor electrical distribution applications. A transparent door and padlock provision ensure user safety, visibility, and easy access.

Effortless Installation and Maintenance

This circuit breaker box arrives with knockouts for streamlined cable entry, adjustable DIN rails for flexible component arrangement, and screw terminals for secure connections. Wall mounting, low-weight construction, and a matte finish make installation straightforward, while the easy-access design simplifies ongoing maintenance and inspection.

FAQ's of Enystar Circuit Breaker Boxes:

Q: How is the Enystar Circuit Breaker Box installed and what mounting options are available?

A: The box is designed for easy wall mounting, using the provided mounting points. Its rectangular, lightweight structure and integrated knockouts simplify installation in various settings, including both indoor and outdoor environments.

Q: What benefits does the transparent cover with padlock provision offer?

A: The transparent door enables clear visual inspection of circuit status, facilitating quicker troubleshooting and monitoring, while the padlock provision enhances security by preventing unauthorized access.

Q: What standards and protection levels does this circuit breaker box meet?

A: It conforms to IEC 61439-3, features an IP65 rating for superior dust and water resistance, and is built from flame-retardant, corrosion-resistant polycarbonate to ensure safe and reliable operation.

Q: Where can the Enystar Circuit Breaker Box be used, and what environments are suitable?

A: This circuit breaker box is suitable for electrical distribution, control panels, and other applications in industrial, commercial, or residential settings, thanks to its weatherproof, high-protection construction and wide operating temperature range.

Q: What is the internal arrangement and cable entry process for this panel?

A: Internal DIN rails are adjustable for flexible configuration, and cable entry is facilitated by pre-formed knockouts. The screw terminals and copper lug connectors ensure secure wiring, while the earth terminal enhances safety.

Q: How does the Enystar box provide high efficiency and protect against overheating?

A: The box supports up to 98% efficiency with its tin-plated copper busbars and thermoplastic insulation. It includes integrated overheating protection, safeguarding equipment during prolonged or high-load operation.
