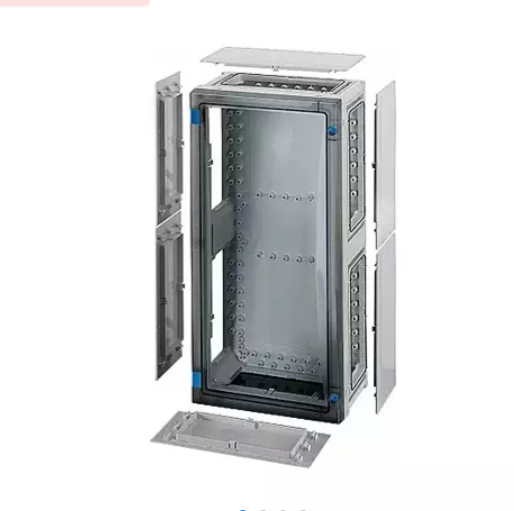

Enystar Empty Enclosures

Name: Enystar Empty Enclosures
Brand: Emson Power Engineers
Price: 9740.0 INR
Availability: InStock

Price 9740.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Enystar Empty Enclosures Specification

Feature
UV Resistant, Weatherproof, Rigid Construction

Operating Temperature
-25C to +40C

Insulation Material
Polyamide / Polycarbonate

Mounting Type
Wall, Surface, or Pole Mountable

Surface Finish
Smooth / Matte

Shape
Rectangular

Overheating Protection
Not applicable (can be equipped with accessories)

Humidity %
Up to 95% (non-condensing)

IP Rating
IP66 / IP67

Connector Type
As per configuration

Product Type
Empty Enclosure

Application
Electrical Distribution, Control Panels, Switchgear Protection

Protection Level
High - Up to IP66/IP67

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 690 V

Energy Consumption
N/A (Passive enclosure)

Output Type
N/A (Depends on internal assembly)

Color
Light Grey (RAL 7035)

Dimension (L*W*H)
Multiple sizes available (e.g. 200x300x170 mm, 400x600x210 mm, see catalogue)

Weight
5 Kilograms (kg)

Phase
PHASE 3

Size
Standard & Custom Sizes

Input Voltage
N/A (Depends on assembly)

No Of Poles
Customizable (usually 1-4)

Material
High-quality Polycarbonate or Polyamide

Connection Type
Screw Terminals / Cable Entry Glands

Gasket Material
EPDM / TPU for tight sealing

Lid Design
Screw-fastened Transparent or Opaque lid options

Flammability Class
UL 94 V-0

Knockouts
Integrated metric knockouts for easy cable entry

Ambient Storage Temperature
-40C to +70C

Accessories Support
Mounting plates and DIN rail compatibility

Resistance
Chemical & UV Resistant

Enystar Empty Enclosures Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Enystar Empty Enclosures

Combinable enclosure system with door for the assembly of distribution boards up to 250 A to be opperated by ordinary persons (DBO) in accordance with IEC 61439-3 for surface-mounting. Enclosures are suitable for the outdoor installation - harsh environment and / or outdoor, however the climatic influences and effects on the equipment are to be considered. Bottom parts and doors are made from impact-resistant polycarbonate, halogen- and silicone-free, colour RAL 7035. All enclosures with doors, which are lockable and sealable. Operation of device behind the doors. Burning behavior in accordance with IEC 60695-2-11 Glow wire test + 960 C. Protective measure: protective insulation (protection class II). Make: Hensel ENYSTAR.

Superior Protection and Durability

Enystar enclosures are designed to offer maximum protection for electrical components, with a flammability class of UL 94 V-0 and ingress ratings up to IP67. The robust polyamide or polycarbonate construction shields equipment from chemicals, UV exposure, and weather, making them ideal for indoor and outdoor use.

Versatile Installation Options

Available in multiple sizes and configurations, Enystar enclosures support wall, surface, or pole mounting, offering remarkable flexibility. The presence of metric knockouts allows for straightforward cable entry, and the design accommodates removable mounting plates and DIN rails for a wide range of assemblies.

Customizable for Your Application Needs

You can choose between transparent or opaque screw-fastened lids to suit application requirements. With options for up to 4 poles and standard or customized dimensions, these enclosures are adaptable to electrical distribution, panel building, and protective needs across industries.

FAQ's of Enystar Empty Enclosures:

Q: How can I select between the transparent and opaque lid options for Enystar enclosures?

A: Selection depends on your monitoring needs. Use a transparent lid if you require visual inspection of the internal components without opening the enclosure. For added security or less frequent inspection, opt for the opaque lid variant.

Q: What is the installation process for Enystar Empty Enclosures?

A: Enystar enclosures are designed for straightforward installation. They can be mounted on walls, surfaces, or poles using the provided mounting kits. Integrated metric knockouts simplify cable entry, and accessories like mounting plates and DIN rails make component installation easier.

Q: Where can Enystar enclosures be used effectively?

A: These enclosures are suitable for a wide variety of industrial and commercial settings in India, including electrical distribution systems, control panels, switchgear protection, and other outdoor or harsh environments requiring high ingress protection.

Q: What are the key benefits of using EPDM/TPU gaskets in Enystar enclosures?

A: The high-quality EPDM/TPU gaskets ensure a tight seal against dust, moisture, and contaminants, thus maintaining the enclosures' IP66/IP67 protection rating and safeguarding internal electrical components against challenging conditions.

Q: When should I consider adding mounting plates or DIN rails to my enclosure?

A: Mounting plates and DIN rails are ideal for organizing electrical or control components inside the enclosure. You may add these accessories when your assembly requires a neat, modular, or expandable internal layout.

Q: What makes Enystar enclosures suitable for outdoor installations?

A: Their high protection class, UV and chemical resistance, and sturdy weatherproof construction make them an excellent choice for outdoor installations, especially with ambient temperature ranges from -40C to +70C.
