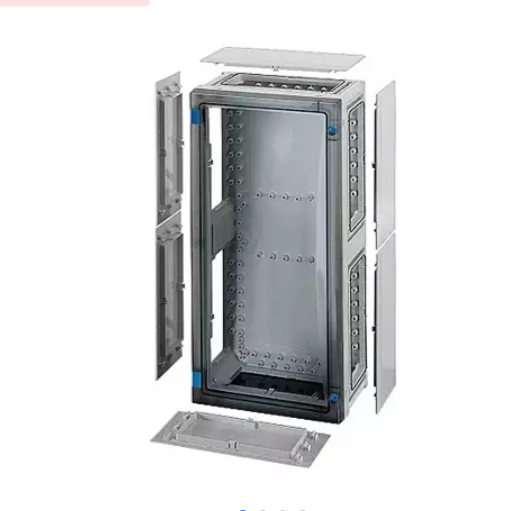

Enystar Empty Enclosures

Name: Enystar Empty Enclosures
Brand: Emson Power Engineers
Price: 12805.0 INR
Availability: InStock

Price 12805.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Enystar Empty Enclosures Specification

Humidity %
Up to 95% RH (non-condensing)

Power Factor
N/A (Not Applicable)

Connector Type
Cable Gland/Knock-out options available

Feature
Corrosion Resistant, UV Resistant, Shock Proof, Weatherproof

Insulation Material
Glass Reinforced Polyester (GRP)

IP Rating
IP66 / IP67 (High Protection)

Efficiency
N/A (No Energy Conversion)

Surface Finish
Matt/Structured

Mounting Type
Wall/Surface/Panel Mounting

Operating Temperature
-40C to +80C

Shape
Rectangular

Overheating Protection
Yes, due to material thermal resistance

Product Type
Empty Electrical Enclosure

Application
Electrical Distribution, Power Control, Outdoor/Indoor Installations

Protection Level
Double Insulated

Frequency (MHz)
Not Applicable (For Low-Voltage Applications)

Rated Voltage
690V AC max

Energy Consumption
N/A (Passive Enclosure)

Output Type
N/A (No Output, Empty Enclosure)

Color
Light Grey (RAL 7035)

Dimension (L*W*H)
250 x 200 x 132 mm

Weight
5 Kilograms (kg)

Size
Multiple sizes available (Standard: 250x200x132 mm)

Phase
PHASE 3

Input Voltage
N/A (Empty Enclosure)

Material
Polycarbonate (PC), Glass Reinforced Plastic (GRP)

Connection Type
Terminal/Modular Mounting

No Of Poles
Modular (Customizable as per requirement)

Cover Type
Opaque/Transparent Door Option

Fire Rating
UL94 V0

Earth Provision
Integrated Earth Connection

Impact Resistance
IK08 (High Impact Strength)

Sealing Type
Foam-in-Place Polyurethane Gasket

Degree of Protection
IP66/IP67 (Dust & Water Tight)

Door Locking
Plastic or Metal Lock, Sealable

UV Resistance
Yes, Suitable for Outdoor Use

Standards Compliance
IEC 62208, CE Certified

Accessories
Mounting Plate, DIN Rail, Base Plinths Available

Cable Entry
Pre-moulded Knock-outs, Customizable

Enystar Empty Enclosures Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Enystar Empty Enclosures

Combinable enclosure system with door for the assembly of distribution boards up to 250 A to be opperated by ordinary persons (DBO) in accordance with IEC 61439-3 for surface-mounting. Enclosures are suitable for the outdoor installation - harsh environment and / or outdoor, however the climatic influences and effects on the equipment are to be considered. Bottom parts and doors are made from impact-resistant polycarbonate, halogen- and silicone-free, colour RAL 7035. All enclosures with doors, which are lockable and sealable. Operation of device behind the doors. Burning behavior in accordance with IEC 60695-2-11 Glow wire test + 960 C. Protective measure: protective insulation (protection class II). Make: Hensel ENYSTAR.

Superior Protection with High Durability

Enystar Empty Enclosures provide exceptional security for electrical and control installations. Designed with robust sealing, advanced materials, and high IP ratings, they shield components from dust, water, UV exposure, and mechanical impacts, ensuring optimal performance in challenging environments. Their compliance with global safety standards makes them suitable for mission-critical applications.

Flexible for Custom Installations

With modular design and multiple size options, these enclosures can be tailored to specific project requirements. The pre-moulded knock-outs facilitate hassle-free cable management, while mounting plate, DIN rail, and other accessories enable easy configuration. Their adaptability supports a wide array of electrical distribution and power control setups.

FAQ's of Enystar Empty Enclosures:

Q: How can I choose between opaque and transparent door options for the Enystar Empty Enclosures?

A: The opaque door provides high security and protection for sensitive equipment, while the transparent option allows for easy visual inspection without opening the enclosure. Choose based on your need for equipment monitoring or security.

Q: What makes the Enystar enclosures suitable for outdoor use in India?

A: These enclosures are crafted from UV-resistant Polycarbonate or GRP, feature a weatherproof and corrosion-resistant finish, and are rated IP66/IP67 for dust and water tightness, making them ideal for outdoor installations in varied Indian climates.

Q: When is it necessary to select the metal lock over the plastic lock for the door?

A: Metal locks offer enhanced mechanical strength and security, suitable for high-risk environments or when added tamper resistance is required. Plastic locks suffice for standard indoor or less exposed applications.

Q: Where can pre-moulded knock-outs be used, and what benefits do they offer?

A: Pre-moulded knock-outs on the enclosure facilitate flexible cable entry points, making installation faster and reducing the need for on-site drilling, thus maintaining enclosure integrity and simplifying wiring.

Q: What process is followed to ensure the enclosure maintains its IP66/IP67 rating after customization?

A: It is essential to use appropriate cable glands or sealing accessories when customizing cable entries, ensuring the foam-in-place gasket and all knock-outs are properly sealed according to manufacturer guidelines. This maintains the dust and water tightness of the enclosure.

Q: How do the accessories like mounting plate and DIN rail contribute to versatile usage?

A: Mounting plates, DIN rails, and base plinths allow flexible installation of various modular devices, making it easier to organize and secure electrical components within the enclosure as per project needs.

Q: What advantages does the double insulated design of the Enystar enclosure provide?

A: Double insulation greatly enhances electrical safety by minimizing the risk of accidental contact or leakage, making the enclosure reliable for both indoor and outdoor low-voltage applications.
