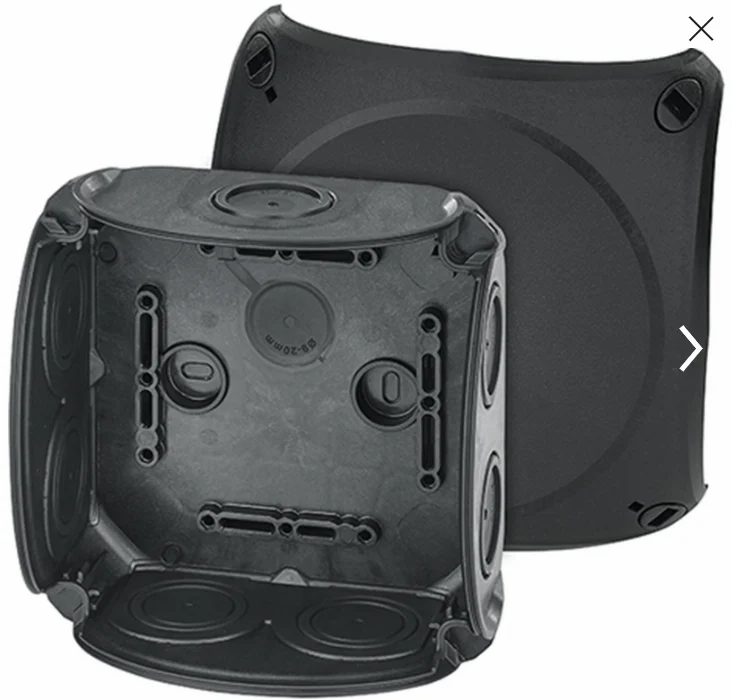

Cable Junction Boxes IP 66 (Black) with integrated membranes

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66 (Black) with integrated membranes

Name: Cable Junction Boxes IP 66 (Black) with integrated membranes
Brand: Emson Power Engineers
Price: 540.0 INR
Availability: InStock

Price 540.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Black) with integrated membranes Specification

Surface Finish
Matte

Connector Type
Membrane cable entries

Feature
Integrated Membrane Cable Entries, UV Resistant, Weatherproof

Humidity %
Up to 95% RH (non-condensing)

Overheating Protection
Yes (Material withstands electrical heating)

Shape
Rectangular

Mounting Type
Wall/Surface Mounted, External Mounting Brackets

Operating Temperature
-25C to +60C

IP Rating
IP 66

Insulation Material
Polycarbonate

Product Type
Cable Junction Box with Integrated Membranes

Application
Cable Management, Electrical Wiring Protection

Protection Level
IP 66

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 400V AC

Output Type
Terminal connection/outlet

Color
Black

Dimension (L*W*H)
110 x 110 x 65 mm (common size; varies with model)

Weight
5 Kilograms (kg)

Phase
PHASE 3

Input Voltage
Up to 400V AC

Size
Small/Medium/Large (varies by model)

Material
Polycarbonate (PC)

Connection Type
Screw Terminal

No Of Poles
1-4 (depending on configuration)

Marking Area
Designated surface for labeling

Lid Type
Screw-on

Number of Entries
4-6 integrated membrane entries (varies by size)

Fire Resistance
UL 746C compliant

Self-Extinguishing
Yes, as per UL94-V2

Sealing Gasket
Included for additional sealing

Cable Diameter Supported
4mm to 18mm (per membrane entry)

Halogen Free
Yes

Impact Resistance
IK08

Torque for Cover Screws
0.8 Nm

UV Resistance
Yes, suitable for outdoor use

Cable Junction Boxes IP 66 (Black) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Black) with integrated membranes

Select the renowned Cable Junction Boxes IP 66 (Black) with integrated membranes, a product consistently earning favorable reviews and in soaring demand across industries. Crafted from halogen-free polycarbonate, these rectangular, radiant black junction boxes offer exceptional impact resistance (IK08), robust UV resistance, and weatherproof reliability. Available in sizes small to large, each box features 4-6 integrated membrane entries, supports cable diameters of 4mm to 18mm, and provides reliable protection for electrical wiring up to 400V AC. Includes explicit marking areas, secure screw-on lids, and external mounting brackets for streamlined wall installation. Experience unmatched safety and durability from India's trusted distributor and manufacturer.

Versatile, Weatherproof Performance for Every Application

Cable Junction Boxes IP 66 (Black) with integrated membranes are expertly designed for reliable outdoor and indoor use. Their UV resistance, screw-on lid, and superior sealing gasket ensure optimal electricity management and cable protection in harsh environments. With an easy surface-mounting method and membrane entry system supporting various cable diameters, setup and operation are remarkably straightforward. These radiant enclosures are ideal for electrical distribution, power control, and secure wiring across industries from residential to commercial.

Swift Delivery and Dynamic Export Solutions

Expect prompt arrival with our streamlined delivery times for Cable Junction Boxes IP 66 (Black) with integrated membranes. Our product proposal amount is tailored to accommodate any order outlay effectively. With strong supply ability, we ensure bulk and timely distribution for all clients. Serving main export markets globally and throughout India, we deliver reliability and satisfaction in every shipment, so your projects continue without delays.

FAQ's of Cable Junction Boxes IP 66 (Black) with integrated membranes:

Q: How do I select the right size of Cable Junction Box IP 66 (Black) for my setup?

A: Choose the box size (small, medium, or large) based on your cable management requirements, number of membrane entries needed, supported cable diameters, and space availability for mounting.

Q: What is the main benefit of using integrated membrane cable entries?

A: Integrated membrane entries enable quick, tool-free cable insertion while maintaining a weatherproof and dustproof seal, enhancing both convenience and protection in demanding environments.

Q: Where can these junction boxes be mounted?

A: They are designed for wall or surface mounting, with external brackets included, suitable for both indoor and outdoor applications in industrial, commercial, or residential installations.

Q: What level of protection does the IP 66 rating offer?

A: IP 66 ensures total protection against dust ingress and high-pressure water jets, making the box suitable for use in challenging and exposed settings.

Q: How does the self-extinguishing feature contribute to safety?

A: The self-extinguishing, UL94-V2 and UL 746C compliant polycarbonate material minimizes fire risk, enhancing safety for electrical wiring in the event of overheating or faults.

Q: When is the optimal phase and voltage range for usage?

A: These boxes operate efficiently in Phase 3 systems with input voltages up to 400V AC and frequencies of 50/60 Hz, covering a wide range of electrical applications.
