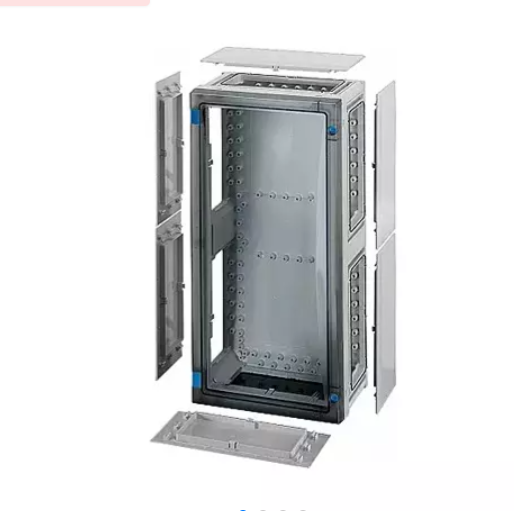

Enystar Empty Enclosures

Name: Enystar Empty Enclosures
Brand: Emson Power Engineers
Price: 12365.0 INR
Availability: InStock

Price 12365.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Enystar Empty Enclosures Specification

Insulation Material
Polycarbonate / ABS

Humidity %
Max 95% RH, Non-Condensing

Connector Type
Multiple Cable Entry Options

Shape
Rectangular

IP Rating
IP66 / IP65

Feature
Impact-resistant, UV Stable, Recyclable

Surface Finish
Matt Finish

Operating Temperature
-25C to +60C

Overheating Protection
No (requires additional device)

Mounting Type
Wall / Surface / Flush Mount

Product Type
Empty Enclosure

Application
Electrical Distribution, Control Panels

Protection Level
High (For Dust and Water Ingress)

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 1000 V AC / 1500 V DC

Energy Consumption
Not Applicable for Empty Enclosure

Color
Grey / White

Dimension (L*W*H)
Varies (Ex: 200mm x 300mm x 130mm)

Weight
5 Kilograms (kg)

Phase
PHASE 3

Size
Customizable, Standard Sizes Available

Connection Type
Screw Connection / Pluggable

Material
High-Quality Polycarbonate or ABS

No Of Poles
Up to 5 Poles

Approvals/Standards
IEC 62208, RoHS Compliant

Ingress Protection
Suitable for Outdoor and Indoor Use

Locking System
Quarter Turn, Padlockable

Cable Entry
Knockout/Pre-punched Options Available

Side Walls
Smooth for Optional Fittings

UV Resistance
Yes

Resistance
Resistant to Chemicals and Corrosion

Accessories
Din rail, Mounting Plate, Gland Plate available optionally

Flame Retardancy
UL94 V-2 / V-0, Self-Extinguishing

Lid Type
Transparent or Opaque

Enystar Empty Enclosures Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Enystar Empty Enclosures

Built-in dimensions W 306 x H 486 x D 140 mm
door fastener with tool operation
with closing plates for box walls
max. installation depth with built-in mounting plate 136 mm,
with built-in DIN rail 125 mm
with opaque door
box size 4
sealing device for door sealing order separately
please order DIN rails, mounting plates or covers additionally
connector: 6 items
order flanges separately
material: PC (polycarbonate)
protection class: II
colour: grey, RAL 7035

Exceptional Protection for Harsh Environments

Engineered with IP65 and IP66 ratings, Enystar Empty Enclosures offer superior protection against dust and water ingress. Their high resistance to UV, chemicals, and corrosion make them ideal for both indoor and outdoor use. The enclosures maintain performance in temperatures ranging from -25C to +60C and support humidity levels up to 95% RH, ensuring electrical equipment stays secure and reliable in demanding environments.

Flexible Design and Installation Options

Enystar enclosures are available in various standard and customizable sizes to accommodate different installation requirements. Featuring knockout or pre-punched cable entries and smooth sidewalls for additional fittings, these enclosures adapt easily to specific project needs. With options for wall, surface, or flush mounting, installation is straightforward for new or retrofit projects.

FAQ's of Enystar Empty Enclosures:

Q: How can the Enystar Empty Enclosures be customized for specific project needs?

A: The Enystar enclosures offer various standard sizes and can be customized to fit specific dimensions. Accessories like DIN rails, mounting plates, and gland plates are available, and smooth sidewalls enable the addition of optional fittings to suit unique installation requirements.

Q: What installation methods are supported by these enclosures?

A: The enclosures support wall, surface, and flush mounting, making them suitable for a variety of applications in electrical distribution and control panels. They come with knockout or pre-punched cable entry options for versatile and efficient cable management.

Q: When should I use a transparent lid versus an opaque lid?

A: A transparent lid is ideal when visual inspection of internal components is required without opening the enclosure, enhancing convenience and safety. An opaque lid offers additional privacy and protection, suitable for environments where visual access is not necessary.

Q: Where are these enclosures typically used?

A: Enystar Empty Enclosures are widely used in electrical distribution, control panels, and automation systems, both indoors and outdoors. Their high level of ingress protection and UV stability make them suitable for harsh industrial, commercial, and outdoor installations.

Q: What benefits do the safety and compliance features provide?

A: With IEC 62208 and RoHS compliance, UL94 V-2/V-0 flame retardancy, and self-extinguishing properties, these enclosures ensure user safety and environmental responsibility. Such certifications indicate they meet stringent international standards for use in demanding applications.

Q: How do I maintain and clean these enclosures?

A: Due to their chemical and corrosion resistance, Enystar enclosures require minimal maintenance. Regular cleaning with non-abrasive, mild cleansing agents will help maintain their matt finish and transparency, ensuring longevity and aesthetics.

Q: What is the maximum rated voltage and pole configuration supported?

A: Enystar enclosures support up to 1000 V AC or 1500 V DC and configurations of up to 5 poles, making them versatile for a range of low- to medium-voltage electrical projects.
