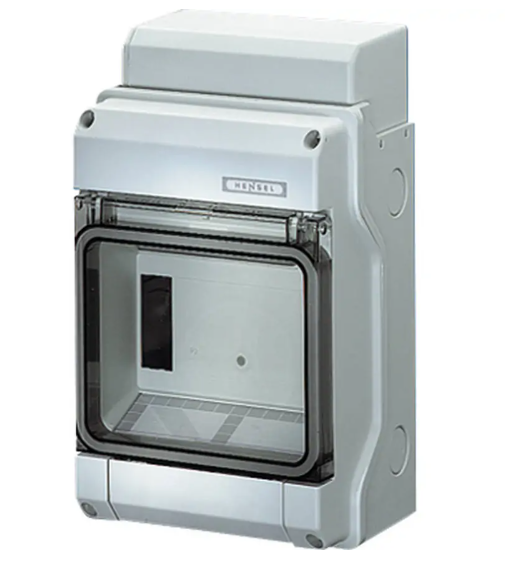

KV PC Small - type Distribution Boards IP 65

Name: KV PC Small - type Distribution Boards IP 65
Brand: Emson Power Engineers
Price: 12520.0 INR
Availability: InStock

Price 12520.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

KV PC Small - type Distribution Boards IP 65 Specification

Efficiency
High

Insulation Material
Polycarbonate

IP Rating
IP65

Overheating Protection
YES

Surface Finish
Matte

Shape
Rectangular

Mounting Type
Wall Mount / Surface Mount

Operating Temperature
-25C to +60C

Connector Type
DIN Rail Compatible

Feature
Dust proof, Weatherproof, UV Resistant

Humidity %
95%

Product Type
Distribution Board

Application
Indoor & Outdoor Power Distribution

Protection Level
IP 65

Frequency (MHz)
50/60 Hz

Rated Voltage
415V AC

Energy Consumption
Negligible (Passive device)

Output Type
Terminal Block/Busbar

Color
Grey

Dimension (L*W*H)
190 x 140 x 90 mm

Weight
5 Kilograms (kg)

Input Voltage
Up to 415V

Size
295X708X129

Phase
PHASE 3

Connection Type
Screw/Terminal Type

No Of Poles
Single / Double / Triple / Four

Material
Polycarbonate (PC)

Locking Mechanism
Quarter-turn Latch

Flammability Class
V2

Cable Entry
Knockouts Provided

UV Stabilization
Yes

Transparent Window
Available

Compliant Standards
IEC 61439-3

Gasket Type
Silicone Seal for Door

Number of Ways
2-12 Ways

KV PC Small - type Distribution Boards IP 65 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About KV PC Small - type Distribution Boards IP 65

48 modules: 4 x 12 x 18 mm
4-row
cable entry via integrated elastic membranes
per PE/N number x cross section 6 x 25 mm, 24 x 4 mm Cu, FIXCONNECT terminal technology, for terminal technology refer to technical data
N separable, up to 4 different potentials
for indoor (normal environment and/or protected outdoor) and outdoor installation (harsh environment and/or outdoor)
for the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
with transparent door
for door locking device and sealing device refer to accessories
with cable entry cover
with blanking strips for unused DIN rail openings
lateral enclosure connections can be managed by drilling
degree of protection: IP 65
colour: grey, RAL 7035

Versatile and Robust Distribution Boards

Built for diverse environments, the KV PC Small Distribution Boards offer IP65 protection, making them suitable for both harsh outdoor and controlled indoor conditions. The weatherproof construction, UV resistance, and flame-retardant materials ensure long-term reliability. Their adaptability covers multiple ways and pole configurations, ensuring they seamlessly integrate with new or existing installations.

Efficient Installation & Maintenance

The presence of knockouts for cable entry, quarter-turn latch mechanism, and DIN rail compatibility facilitates swift installation and trouble-free maintenance. The transparent window design allows for easy visual checks, reducing downtime and improving operational safety. With surface or wall mounting options, installers enjoy flexibility in placement according to site requirements.

FAQ's of KV PC Small - type Distribution Boards IP 65:

Q: How does the IP65 rating benefit this distribution board?

A: The IP65 rating ensures the distribution board is thoroughly protected against dust and strong water jets, making it ideal for challenging outdoor or dusty environments. This means that sensitive electrical components remain safely isolated, reducing maintenance needs and minimizing the risk of equipment failure.

Q: What standards does this distribution board comply with?

A: This board complies with IEC 61439-3, guaranteeing adherence to international safety, performance, and reliability standards for low-voltage switchgear and controlgear assemblies.

Q: When should I use a polycarbonate (PC) distribution board over metal alternatives?

A: Polycarbonate boards are preferable in areas needing enhanced resistance to chemicals, sunlight (UV), moisture, and impact. The material doesn't corrode, is lighter than metal, and offers excellent electrical insulation, making it a safer choice for indoor and outdoor power distribution.

Q: Where can these distribution boards be mounted?

A: They can be surface or wall-mounted, offering flexibility in installation locations-whether on a building exterior, utility room, industrial site, or any indoor/outdoor environment requiring reliable power distribution.

Q: What is the process for cable entry and connection?

A: The board comes equipped with pre-cut knockouts, allowing customers to easily insert cables in the required locations. Connections are then securely made to the terminal blocks or busbar using screw or terminal type connectors.

Q: How does the quarter-turn latch improve safety and usability?

A: The quarter-turn latch mechanism provides quick and secure locking of the distribution board's door, ensuring that only authorized personnel access its interior. This enhances both security and user convenience.

Q: What are the usage benefits of the transparent window?

A: The transparent window allows users to inspect internal components and read equipment status without opening the enclosure. This feature accelerates routine checks and detects potential issues early, promoting operational efficiency and safety.
