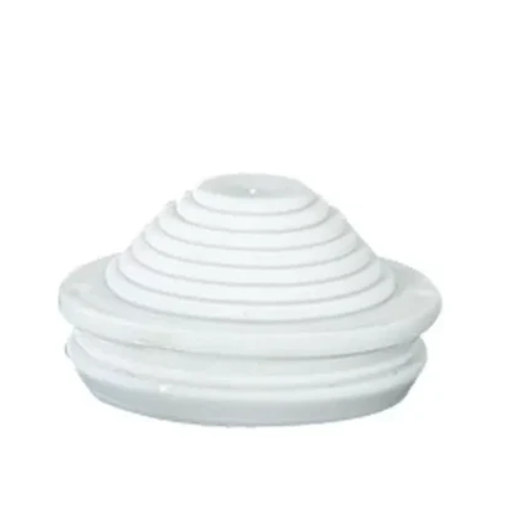

Stepped Glands IP 54

Name: Stepped Glands IP 54
Brand: Emson Power Engineers
Price: 55.0 INR
Availability: InStock

Price 55.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Stepped Glands IP 54 Specification

Connector Type
Gland

Shape
Round/Stepped

Humidity %
Max 95% non-condensing

Feature
Easily cut to desired cable size, flexible sealing

Insulation Material
Polypropylene (PP)

Operating Temperature
-20C to +80C

Mounting Type
Panel Mount

Surface Finish
Smooth

IP Rating
IP54

Product Type
Stepped Cable Gland

Application
Sealing and securing cables in electrical panels and enclosures

Protection Level
Dust and Splash Resistant

Color
Grey

Dimension (L*W*H)
20 mm x 12 mm x 12 mm

Weight
2 Kilograms (kg)

Size
Multiple steps for various cable diameters (approx. 6-12 mm)

Phase
PHASE 3

Material
Polypropylene (PP)

Connection Type
Push Fit

Reusability
Single use

Suitable For
Electrical distribution boxes, junction boxes, control panels

Compliance
ROHS Compliant

Packaging
Standard polybag/pouch

Cable Entry
Step design to accommodate different cable sizes

Flammability
Self-extinguishing as per UL 94 HB

Resistant To
UV, Oils, and Chemicals

Stepped Glands IP 54 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Stepped Glands IP 54

Cable entry as a stepped grommet. For ambient temperature maximum +40 C and minimum 25 C, at relative humidity 50% at 40 C or 100% at 25 C. Degree of protection according to IEC 60529: IP 55. Material: TPE, flame-retardant, halogen- and silicone-free. Color: gray, RAL 7035. Make: HENSEL. Type: STM.

Versatile Stepped Design for Easy Installation

These stepped glands feature a unique step design, enabling you to quickly adapt the gland to fit various cable diameters by simply cutting to the required size. This flexibility makes installation in electrical panels and enclosures efficient and straightforward, saving both time and effort for installers.

Robust Material and Superior Protection

Made from high-quality, self-extinguishing polypropylene (UL 94 HB rated), these glands deliver impressive resistance to UV radiation, oils, and chemicals. Their IP54 rating ensures protection against dust and splashing water, making them suitable for both indoor and light outdoor applications in diverse environments.

Reliable Compliance and Single-Use Security

Fully ROHS compliant and designed for single-use, these glands promote environmental responsibility while ensuring leak-free, tamper-resistant cable entries. Their phase 3 compatibility and panel-mount construction provide a secure fit in various industrial electrical settings, including distribution and junction boxes.

FAQ's of Stepped Glands IP 54:

Q: How do I select the correct cable size using Stepped Glands IP54?

A: Each gland features a step design that suits cable diameters from approximately 6 to 12 mm. Simply cut the gland at the marked step that matches your cable size, ensuring a snug and secure fit during installation.

Q: What makes Stepped Glands IP54 suitable for harsh environments?

A: Constructed from UV, oil, and chemical-resistant polypropylene, and rated IP54 for dust and water splash protection, these glands are ideal for use in demanding conditions, both indoors and in light outdoor settings.

Q: When should I use Stepped Glands IP54 in electrical setups?

A: Use these glands whenever you need to seal and secure cables in electrical distribution boxes, junction boxes, control panels, or enclosures, especially where variable cable sizes or phase 3 compatibility are required.

Q: Where can Stepped Glands IP54 be mounted?

A: They are designed for panel mounting, making them suitable for a range of enclosures and panels commonly found in industrial and commercial electrical installations.

Q: What benefits do Stepped Glands IP54 offer over standard cable glands?

A: Their stepped, easily cut design accommodates multiple cable sizes with a single part, reducing inventory and simplifying installation. The self-extinguishing, ROHS-compliant material also offers enhanced safety and environmental performance.

Q: How is the Stepped Gland installed and secured?

A: The gland utilizes a simple push-fit connection into the panel. Once the correct step is cut, the gland is inserted into the panel opening and the cable pushed through, providing an effective, flexible seal against dust and splashes.
