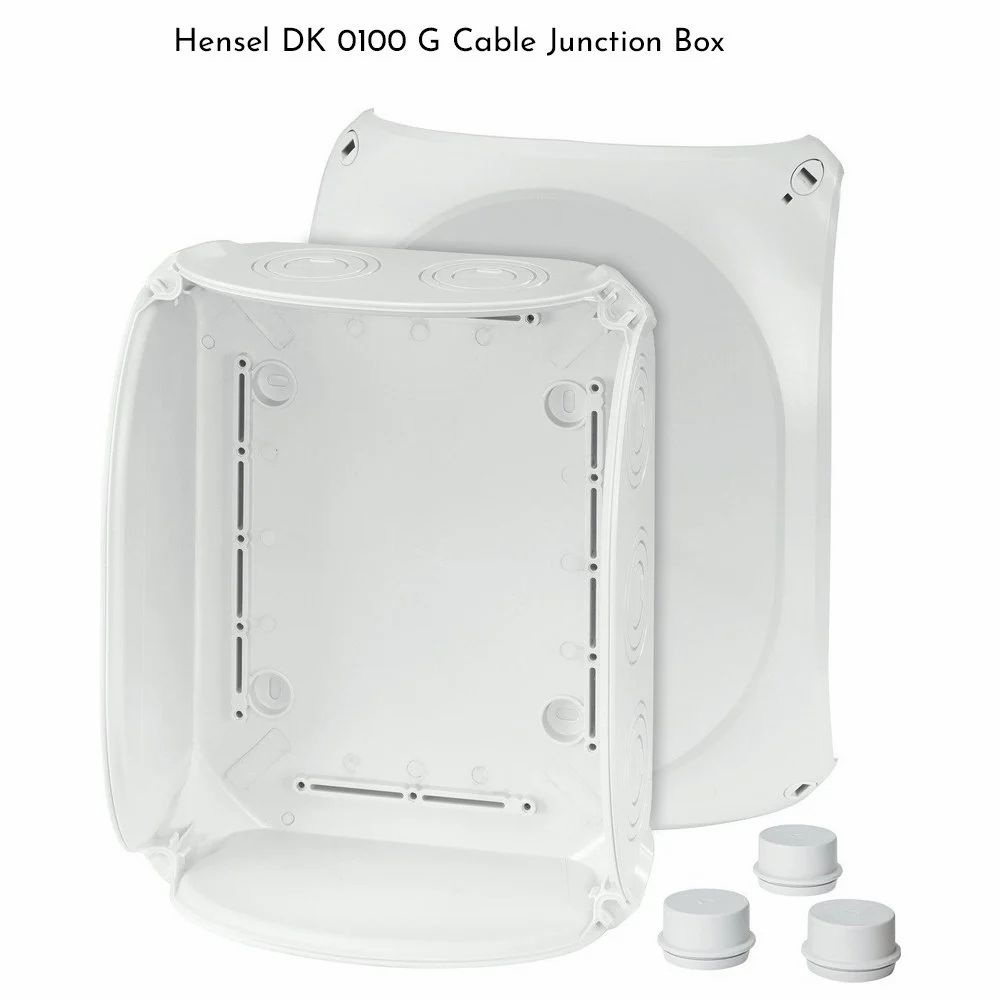

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Send Inquiry

Request To Call Back

Cable Junction Boxes IP 66 (Grey) with integrated membranes

Name: Cable Junction Boxes IP 66 (Grey) with integrated membranes
Brand: Emson Power Engineers
Price: 1550.0 INR
Availability: InStock

Price 1550.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cable Junction Boxes IP 66 (Grey) with integrated membranes Specification

Feature
Pre-moulded Membranes, UV Resistant, Halogen-free, Flame Retardant

Operating Temperature
-25C to +60C

IP Rating
IP66

Connector Type
Membrane Entry (Integrated) & Terminal Block Compatible

Shape
Rectangular

Overheating Protection
Yes, Housing Material Resistant Up To 650C (Glow Wire Test)

Surface Finish
Textured/Matte Grey

Mounting Type
Wall/Surface Mountable

Insulation Material
Polycarbonate Thermoplastic

Humidity %
Up To 95% (Non-Condensing)

Product Type
Cable Junction Box with Integrated Membranes

Application
Electrical Cable Terminations, Branching and Distribution

Protection Level
IP66

Frequency (MHz)
50/60 Hz

Rated Voltage
Max 400V AC

Output Type
Screwless Terminal Entry

Color
Grey

Dimension (L*W*H)
110 x 110 x 66 mm

Weight
5 Kilograms (kg)

Input Voltage
Max 400V

Size
Standard Mini/Small (Custom Sizes Available)

Phase
Single/Three Phase Compatible

Material
High Impact Resistant Polycarbonate (Thermoplastic)

Connection Type
Membrane Cable Entry

Service Life
>20 Years (Under Normal Conditions)

Sealing
Self-sealing Membranes; Gasket Included

Cable Entry
8 Integrated Membrane Entry Points (Cutout-Free Installation)

Accessories
Mounting Screws, Sealing Gasket, Marking Label (Optional)

Standards Compliance
EN 60670-1, IEC 60529

Recyclability
100% Recyclable Material

Lid Type
Transparent or Opaque (Screw Locked)

UV Resistance
Yes, Suitable for Outdoor Use

Flammability Rating
UL94 V-2

IK Code
IK08 (Resistance To Mechanical Impact)

Halogen Content
Halogen-Free

Cable Junction Boxes IP 66 (Grey) with integrated membranes Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Cable Junction Boxes IP 66 (Grey) with integrated membranes

Material	Polycarbonate
Shape	Square
Size	130X180X77
Ingress Protection	IP66
Mounting Type	Wall Mount
Cover Type	Screwed
With Terminal Block	No
Color	White
Availability	In Stock

Integrated Membrane Entry Points

Designed for simplicity, this junction box features eight integrated membrane entry points, allowing quick and tool-free cable installation without the need for additional cutouts. This design reduces installation time and eliminates risks associated with manual cutting, while ensuring firm cable retention and a secure environmental seal.

Robust, Durable Construction

Crafted from high impact-resistant polycarbonate, the enclosure withstands mechanical shocks (IK08 rating) and temperatures up to 650C (glow wire test). Its flame-retardant, halogen-free, and UV-resistant properties make it reliable and safe for demanding industrial and outdoor environments in India.

Versatile Application and Compliance

Fully compliant with EN 60670-1 and IEC 60529, this box is suitable for both single and three-phase electrical systems up to 400V AC, supporting standard frequencies of 50/60 Hz. Its compatibility with screwless terminal blocks and transparent or opaque lids adapts to varied industrial, commercial, and residential applications.

FAQ's of Cable Junction Boxes IP 66 (Grey) with integrated membranes:

Q: How are cables installed in the IP66 junction box with integrated membranes?

A: Cables can be installed quickly by pushing them through the pre-moulded membrane entry points, eliminating the need for cutouts or extra tools. This ensures a secure, self-sealing fit that maintains the IP66 rating and protects against dust and water ingress.

Q: What types of environments and applications is this junction box suitable for?

A: Engineered for harsh outdoor and indoor settings, the box withstands UV, mechanical impacts, and high humidity (up to 95% non-condensing). It is ideal for electrical cable terminations, branching, and distribution across industrial, commercial, and residential projects.

Q: When should the transparent or opaque lid option be selected?

A: Choose a transparent lid for applications requiring visual access to internal wiring without opening the enclosure, such as inspection or maintenance. Opt for the opaque lid where additional light shielding or aesthetic discretion is preferred.

Q: Where can these junction boxes be mounted?

A: These boxes are designed for wall or surface mounting, offering flexibility in installation locations like distribution panels, machinery, outdoor walls, or service entry points. Mounting screws and gaskets are included for a secure, weatherproof setup.

Q: What benefits do self-sealing membranes and flame-retardant materials provide?

A: Self-sealing membranes simplify installation and enhance protection by preventing dust and water ingress, while the flame-retardant, halogen-free polycarbonate housing reduces fire risk and ensures safer performance in environments prone to electrical faults.

Q: Are these junction boxes compliant with safety and environmental standards?

A: Yes, they comply with EN 60670-1, IEC 60529, and UL94 V-2 flammability standards, are halogen-free, UV resistant, and constructed from 100% recyclable materials for long-term safety, sustainability, and legal compliance within India and globally.
