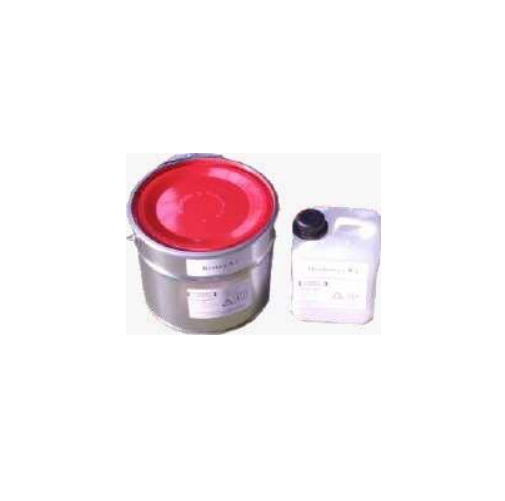

Two component gel

Name: Two component gel
Brand: Emson Power Engineers
Price: 10445.0 INR
Availability: InStock

Price 10445.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Two component gel Specification

Connector Type
Compatible With Multiple Cable Connectors

Humidity %
100% RH (Waterproof)

Overheating Protection
Thermal Stability Up To 120C

Shape
Rectangular (Set Packaging)

Operating Temperature
-40C to +120C

Mounting Type
Pour-In Application / In-Situ

Efficiency
N/A (as insulation gel)

Surface Finish
Smooth Gel Finish

IP Rating
IP68

Insulation Material
Silicone Gel

Feature
Fast Curing, Non-Toxic, Halogen Free, Re-enterable

Product Type
Two Component Gel

Application
Cable Joint Insulation, Cable Termination

Protection Level
IP68

Frequency (MHz)
50 Hz

Rated Voltage
1000 V

Energy Consumption
N/A (Insulation product)

Color
Transparent

Dimension (L*W*H)
200 mm x 100 mm x 50 mm (Packaging)

Weight
2 Kilograms (kg)

Size
Standard / Custom as required

Phase
PHASE 3

Input Voltage
1000 V max

Material
Silicone Gel + Hardener

Connection Type
Inline Cable Joints

No Of Poles
2

Re-enterable
Yes, up to 2 times

Dielectric Strength
>22 kV/mm

Packaging Type
Twin-pouch set

Shelf Life
12 Months in sealed packaging

Curing Time
Approx. 10 minutes at 23C

Resistance
UV, Chemicals, Saline Water

Toxicity
Non-Hazardous, Silicone-based

Mixing Ratio
1 : 1 (by volume or weight)

Storage Condition
Cool, Dry Place; Avoid Direct Sunlight

Two component gel Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Two component gel

Set sealing compound, 1200 ml
For WP 060x x
Sealing compound for refilling after changes or repairs
Durability of sealing compound to processing 12 months at a storage temperature of 5 - 50 C

Reliable Cable Protection for Critical Installations

This silicone-based two-component gel is engineered to provide exceptional insulation for cable joints and terminations. Its fast curing formula and re-enterable properties make it ideal for both permanent and maintenance-friendly installations. With its robust weather and chemical resistance, IP68 rating, and thermal stability, the gel delivers long-term, reliable protection in a range of industries-from utilities to marine applications.

Simple & Efficient Application Process

Mix equal parts of the gel and hardener (1:1 by volume or weight), and pour the solution directly into the cable joint mold or termination box. The gel cures quickly within 10 minutes at room temperature, creating a durable insulating barrier. Its non-toxic, halogen-free formula ensures safety during preparation and installation, while the twin-pouch set simplifies storage and handling.

FAQ's of Two component gel:

Q: How is the two-component silicone gel mixed and applied?

A: The gel and hardener should be mixed in a 1:1 ratio by either volume or weight. After thorough mixing, pour the blend directly into the cable joint or termination area for in-situ application. The gel cures in about 10 minutes at 23C, forming a secure, insulating barrier.

Q: What are the key benefits of using this gel for cable insulation?

A: This gel provides solid dielectric insulation (>22 kV/mm), is IP68 rated for waterproofing, resists chemicals, UV, and saline water, and is re-enterable up to two times. Its fast curing, non-toxic, and halogen-free nature make it both safe and efficient for sensitive environments.

Q: When should I consider using this gel for my electrical installations?

A: Use this silicone gel whenever reliable cable joint insulation and protection are needed, especially in demanding or wet environments. It's also suitable for installations where re-entry for maintenance or inspection may be required.

Q: Where should the gel be stored to ensure maximum shelf life?

A: Store the product in a cool, dry place, away from direct sunlight. Ensure the packaging is sealed. Under proper conditions, the shelf life is up to 12 months.

Q: What process do I follow if I need to re-enter the gel-insulated cable joint?

A: This gel is re-enterable up to two times. When re-entry is needed, the existing gel can be removed, and a fresh mixture can be reapplied using the same 1:1 ratio for continued insulation and protection.

Q: Is the gel hazardous, and are there any safety precautions during use?

A: The gel is non-hazardous, non-toxic, and halogen-free. Basic personal protective equipment (such as gloves) is recommended, but the product is safe for general electrical insulation tasks.

Q: What types of cable connectors and sizes are compatible with this gel?

A: The gel is compatible with multiple cable connector types and can accommodate standard as well as custom sizes. Its smooth, pour-in formulation ensures seamless integration for various inline cable joints requiring up to IP68 protection.
